Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refers to the steps number on the diagnostic table.

2. This step test the at rest state of the Keypad Signal circuit.

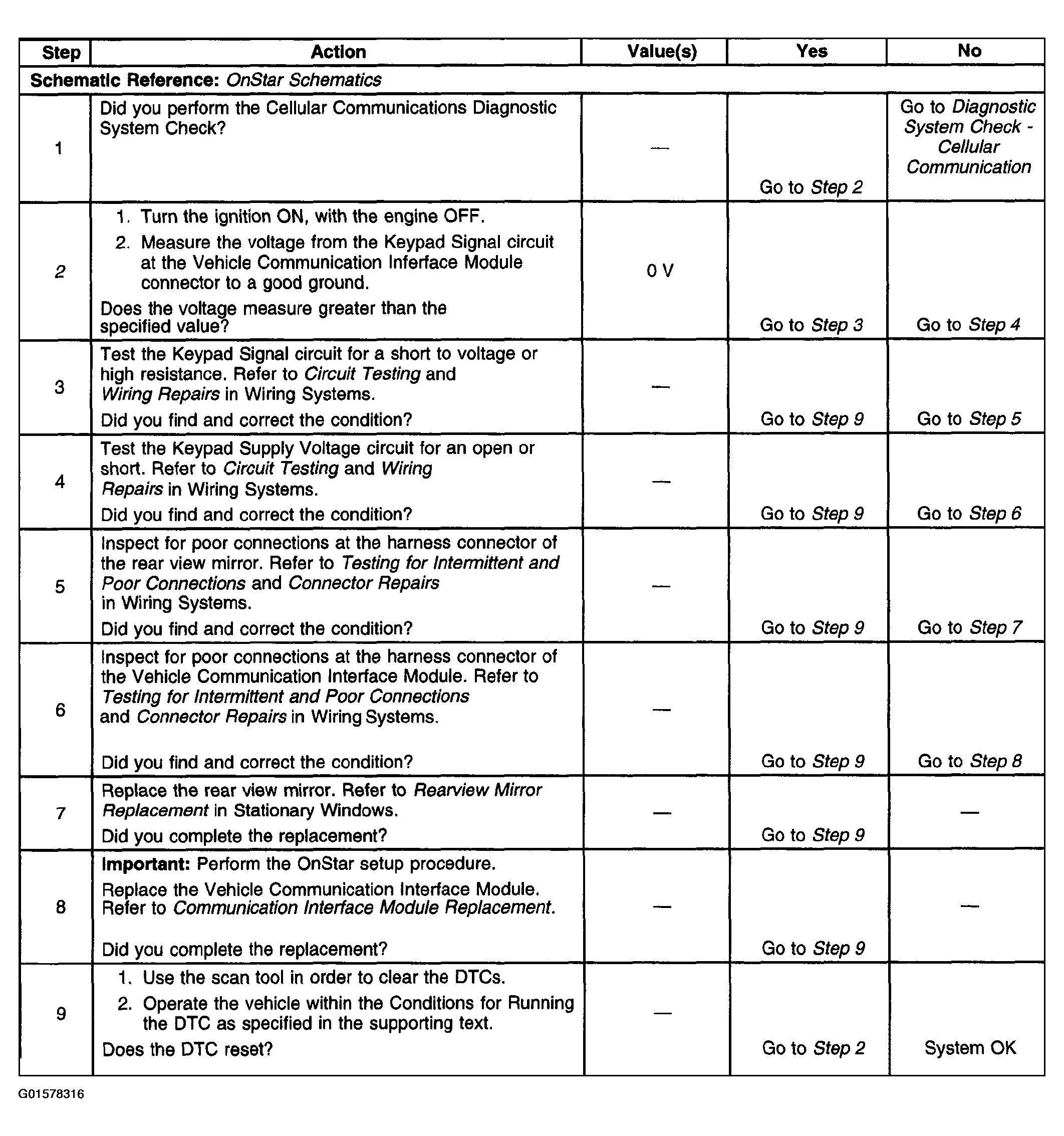

Fig 1: DTC B2482
G01578316Courtesy of GENERAL MOTORS CORP.
