Radio/Audio System Schematics (UQ7 W/Y91)

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

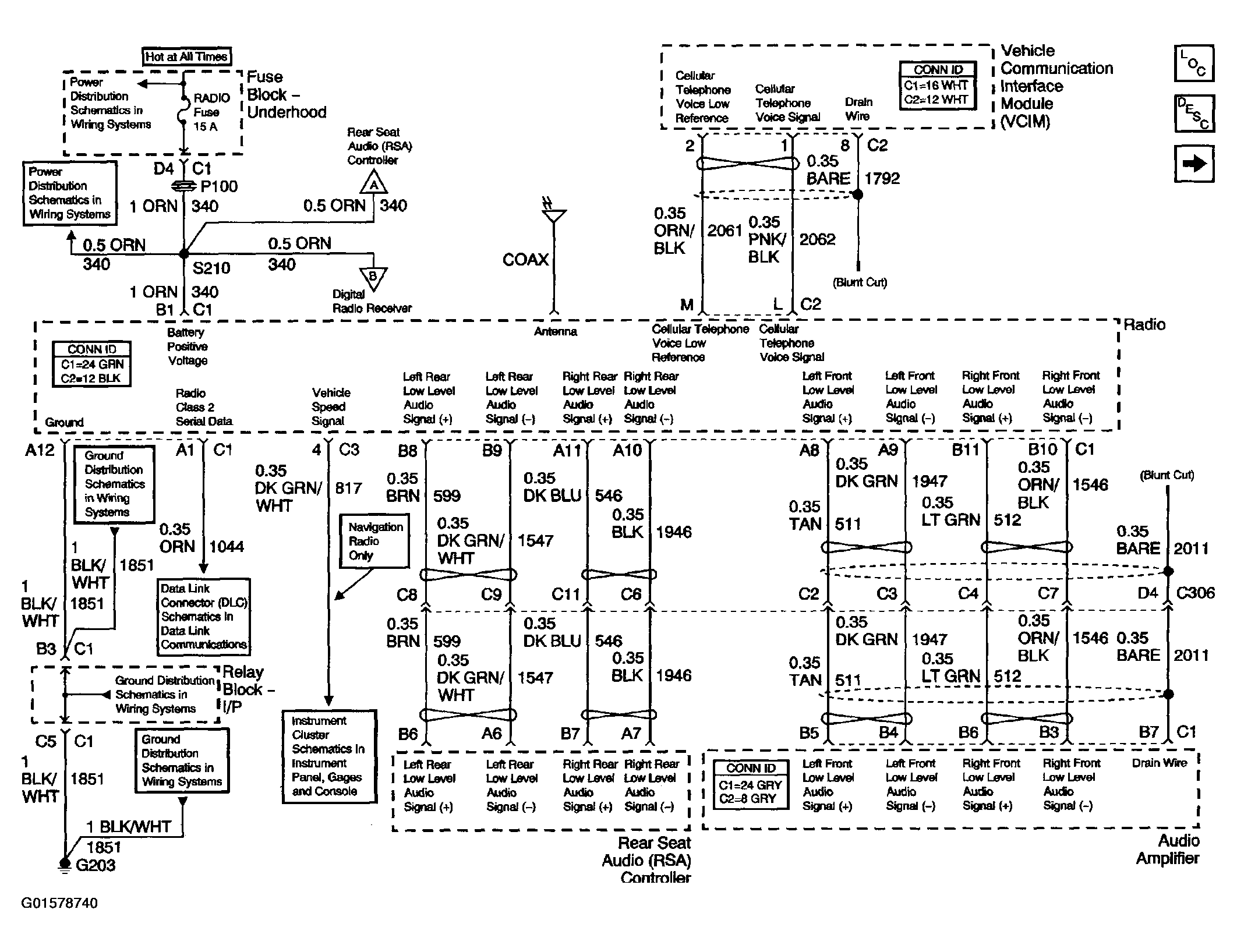

Fig 1: Radio/Audio System Schematics (UQ7 W/ Y91) (Power, Ground, Low Level Audio Signals-UQ7 W/Y91)

Courtesy of GENERAL MOTORS CORP.

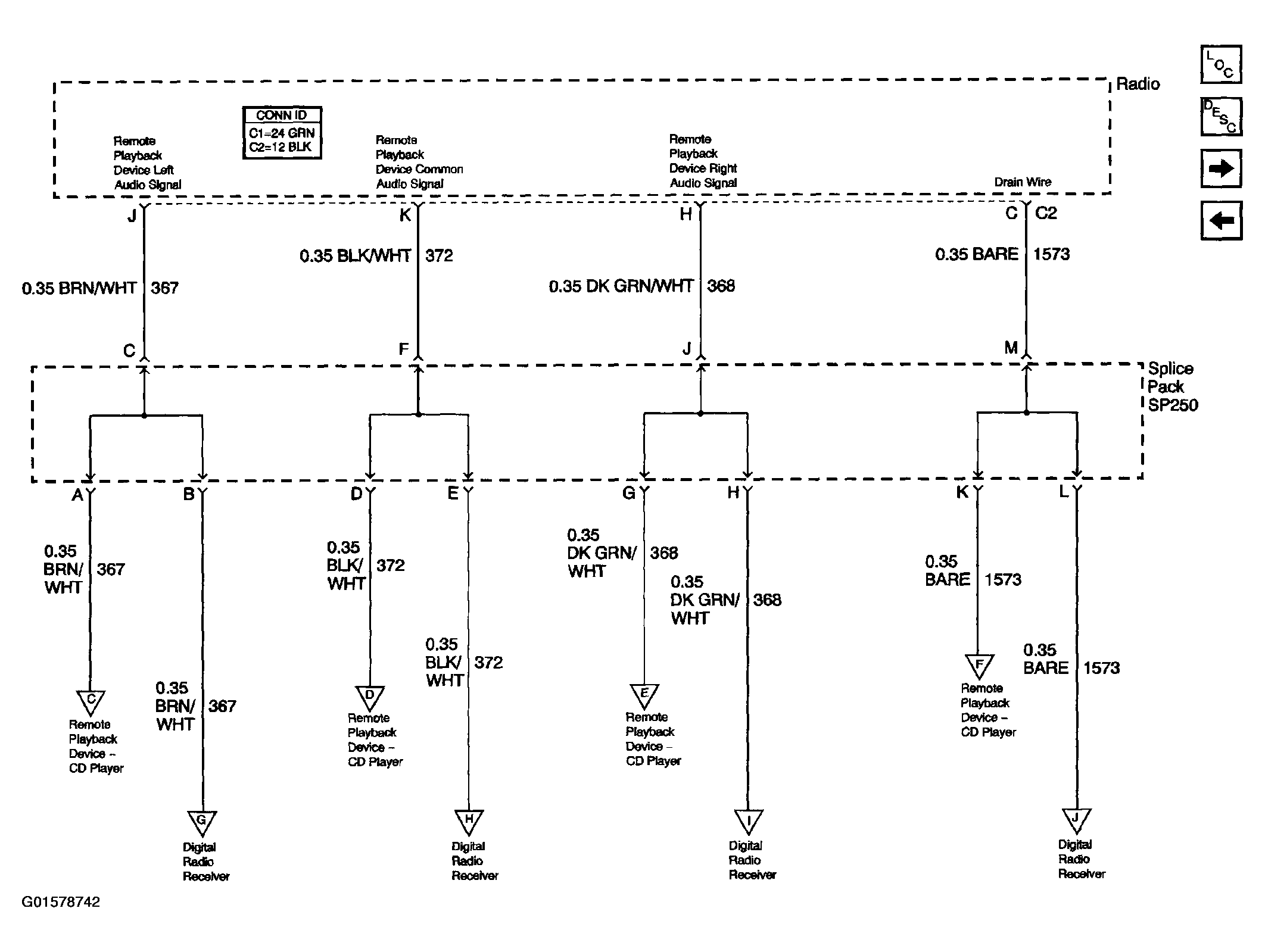

Fig 2: Radio/Audio System Schematics (UQ7 W/ Y91) (Audio Signals-1 of 2-UQ7 W/Y91)

Courtesy of GENERAL MOTORS CORP.

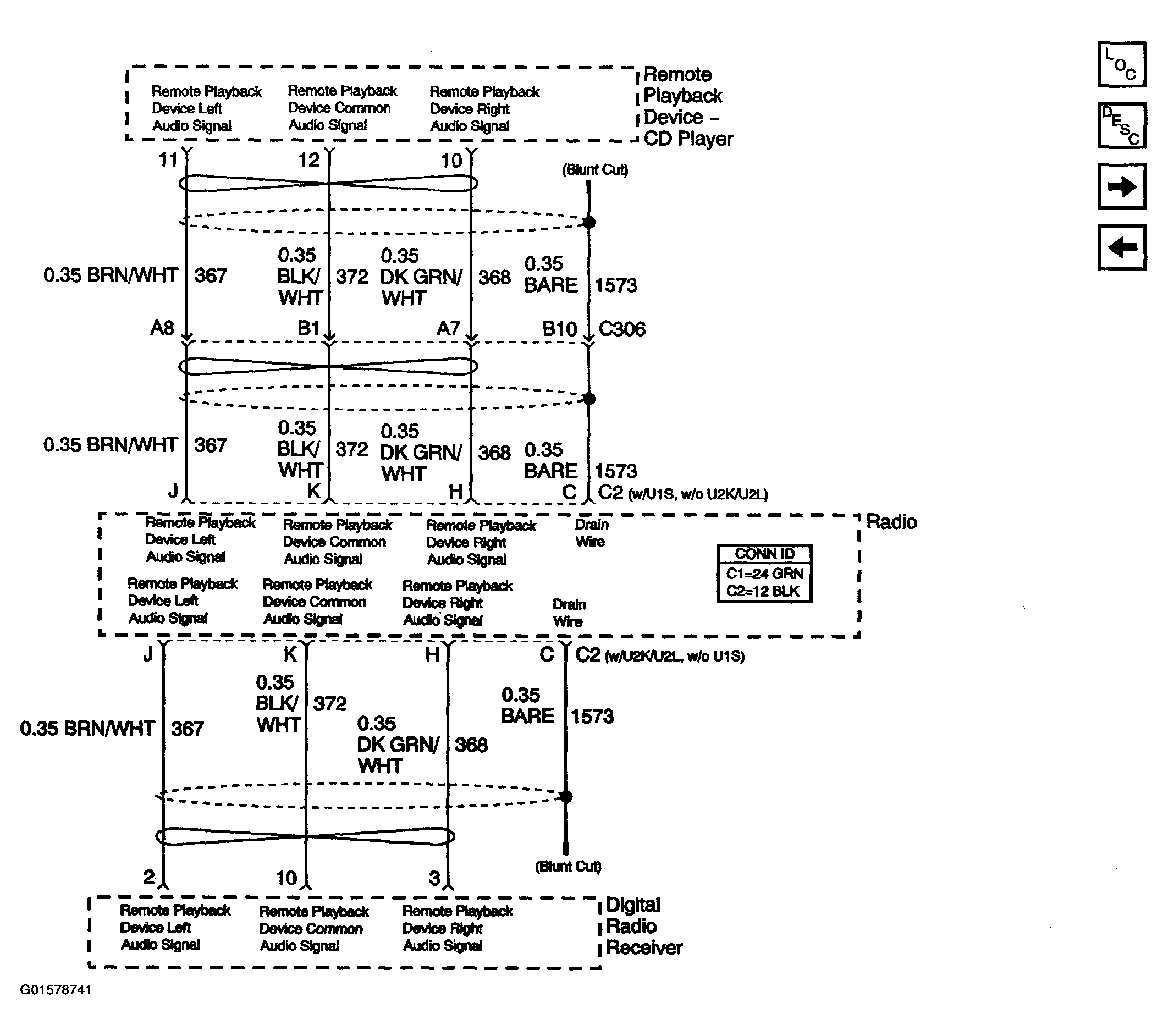

Fig 3: Radio/Audio System Schematics (UQ7 W/ Y91) (Audio Signals-2 of 2-UQ7 W/Y91)

Courtesy of GENERAL MOTORS CORP.

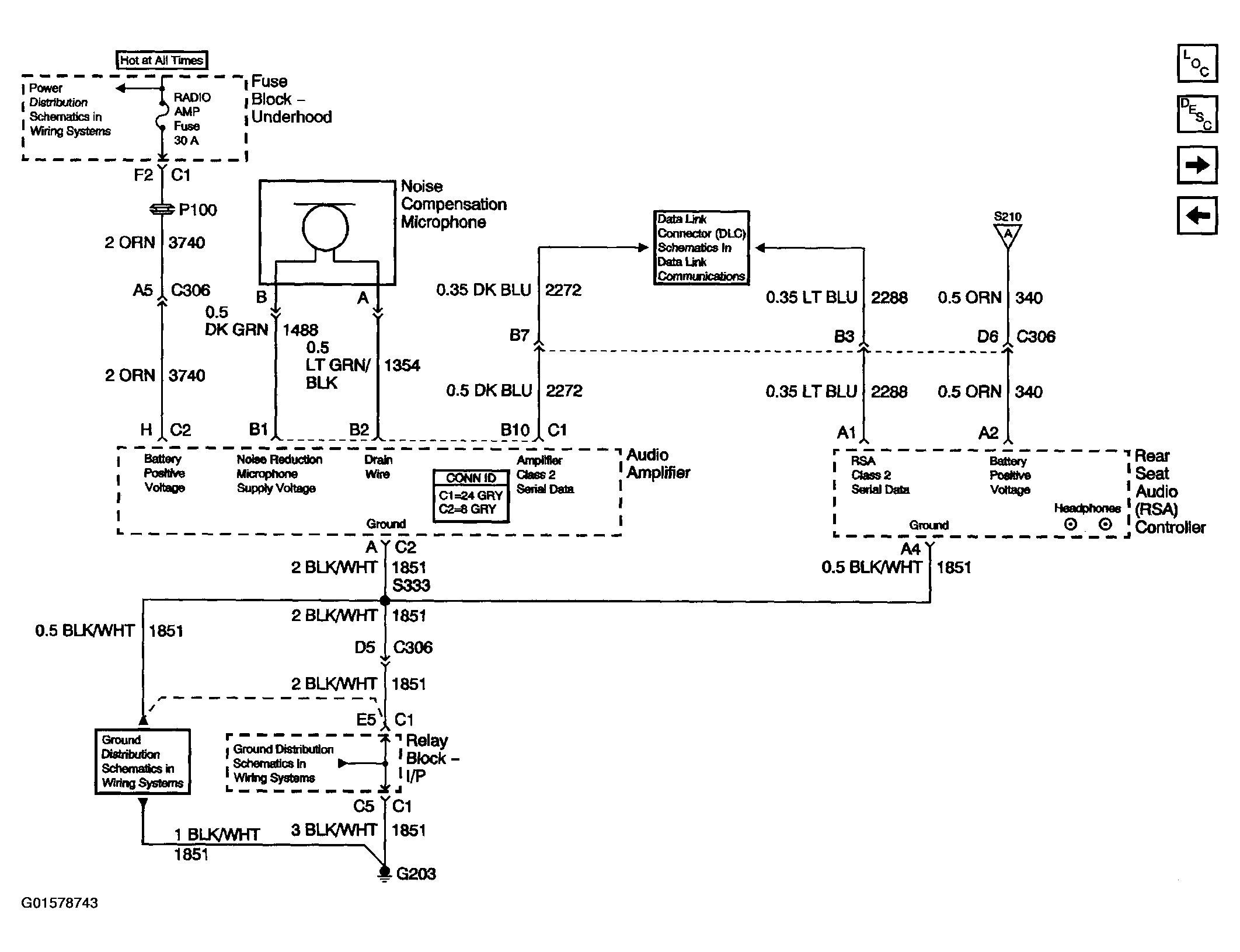

Fig 4: Radio/Audio System Schematics (UQ7 W/ Y91) (Amplifier, RSA Power, Ground, Subsystems-UQ7 W/Y91)

Courtesy of GENERAL MOTORS CORP.

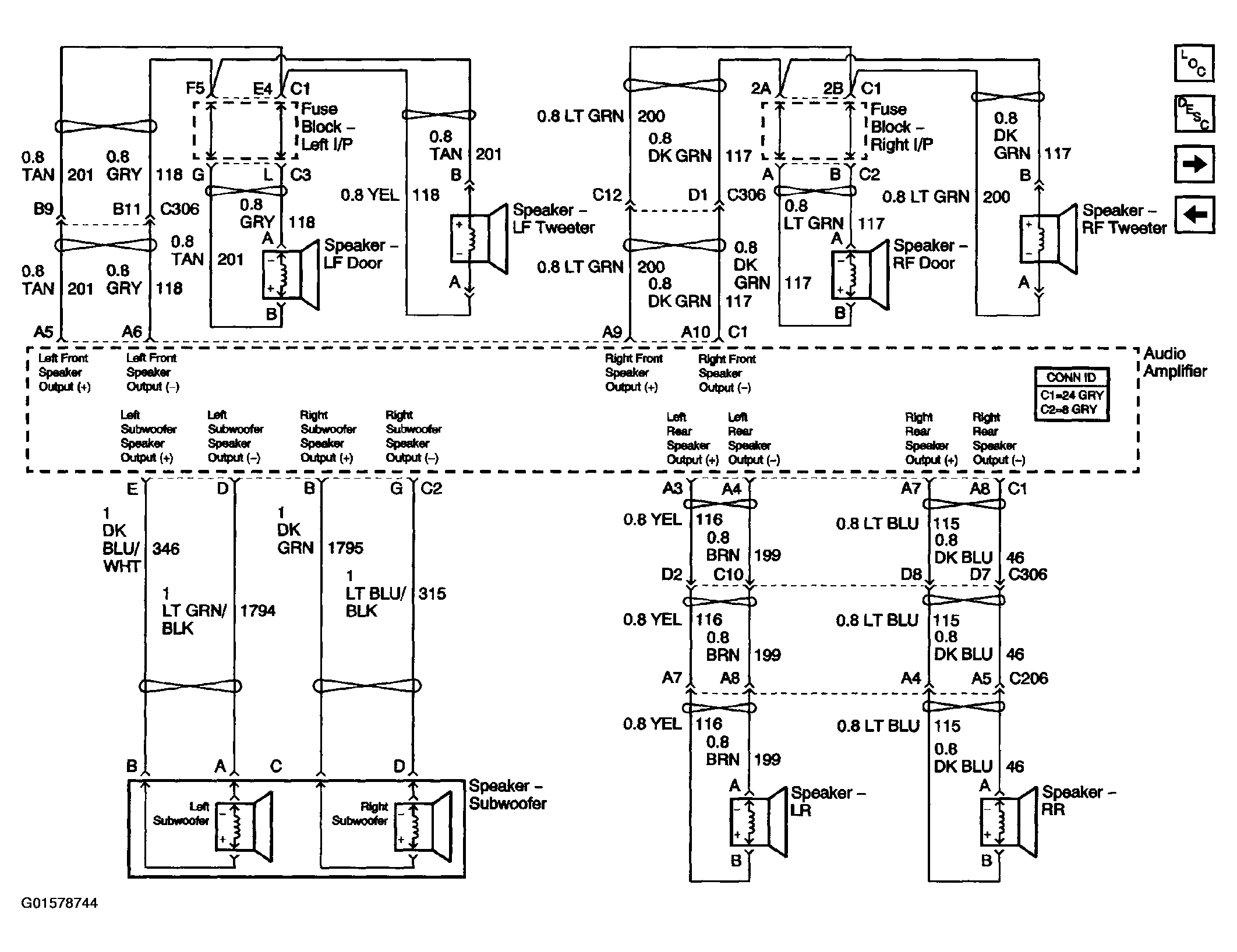

Fig 5: Radio/Audio System Schematics (UQ7 W/ Y91) (Speakers-UQ7 W/Y91)

Courtesy of GENERAL MOTORS CORP.

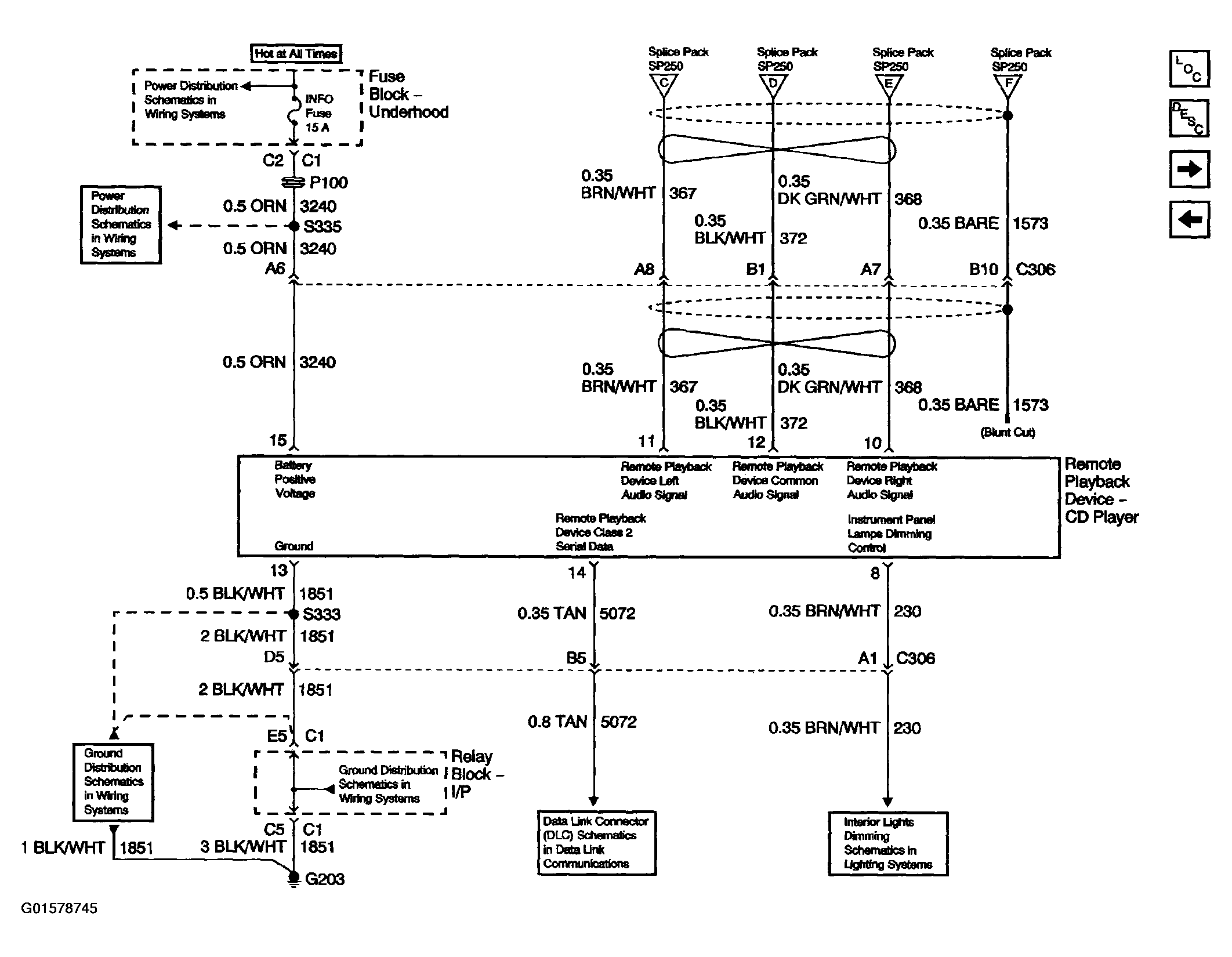

Fig 6: Radio/Audio System Schematics (UQ7 W/ Y91) (Remote CD Player-UQ7 W/Y91-W/U1S)

Courtesy of GENERAL MOTORS CORP.

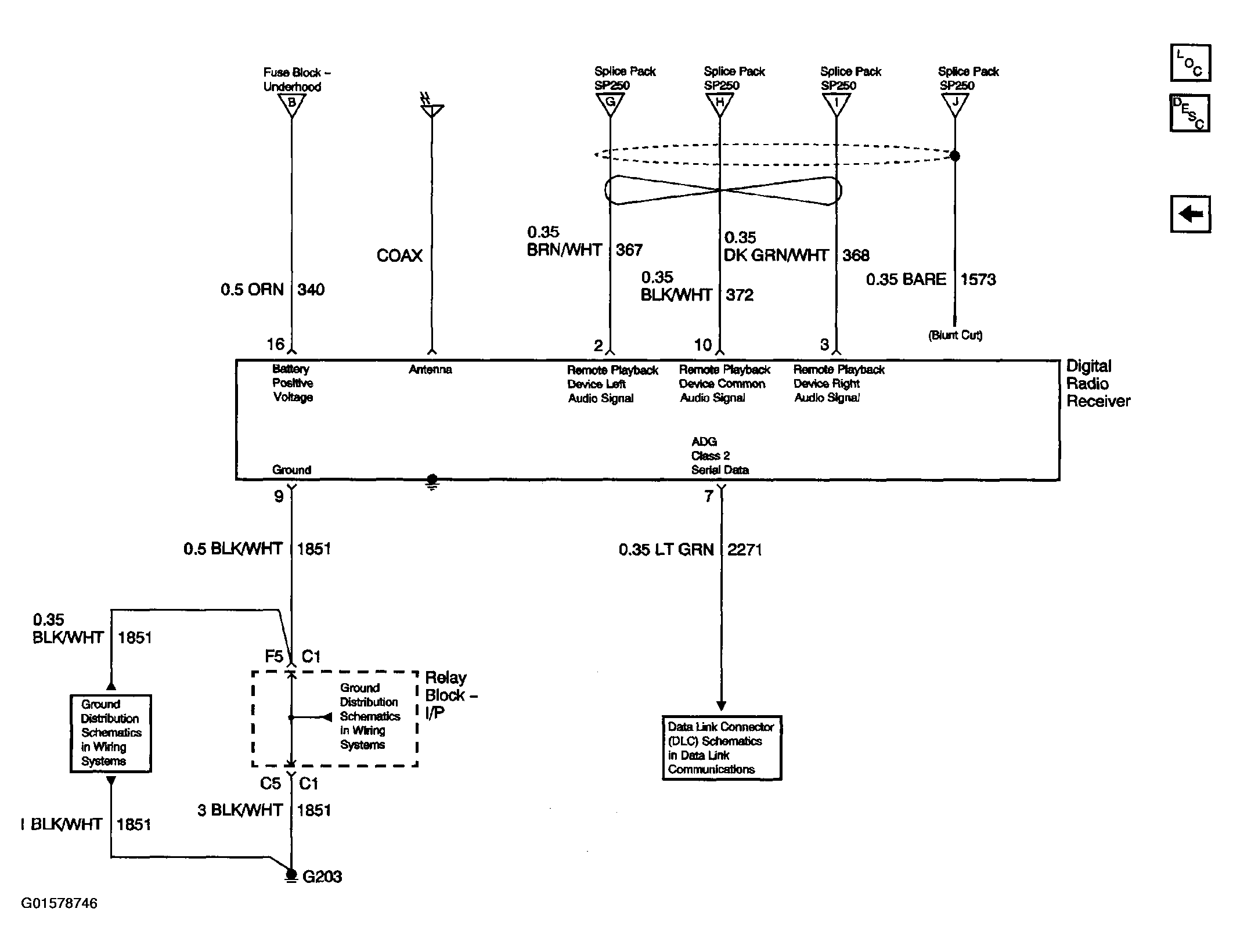

Fig 7: Radio/Audio System Schematics (UQ7 W/ Y91) (Digital Radio Receiver-UQ7 W/Y91-W/U2K/U2L)

Courtesy of GENERAL MOTORS CORP.
