Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT-SIDE REAR DOOR (CREW CAB) .
  2. Remove the screws (1) retaining the speaker to the mounting bracket.
  3. Disconnect the electrical connector from the speaker.
  4. Remove the speaker from the mounting bracket.
  5. Remove the bolts (2) retaining the speaker mounting bracket to the door, if required.
  6. Remove the speaker mounting bracket.

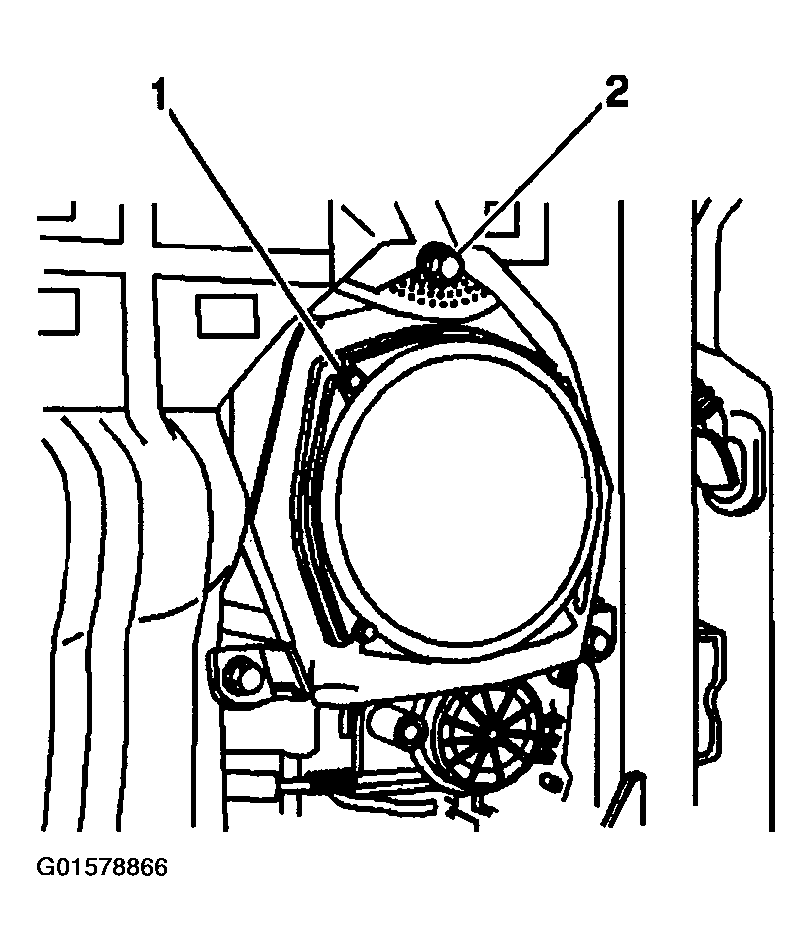

    Fig 1: Removing Rear Door Speaker (Crew Cab)
    G01578866Courtesy of GENERAL MOTORS CORP.
