Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel (1). Refer to TRIM PANEL REPLACEMENT-SIDE FRONT DOOR .
  2. Remove the speaker grill. Refer to Speaker Grille Replacement-Front Door   .
  3. Remove the fasteners (2).
  4. Remove the speaker from the door trim panel (1).

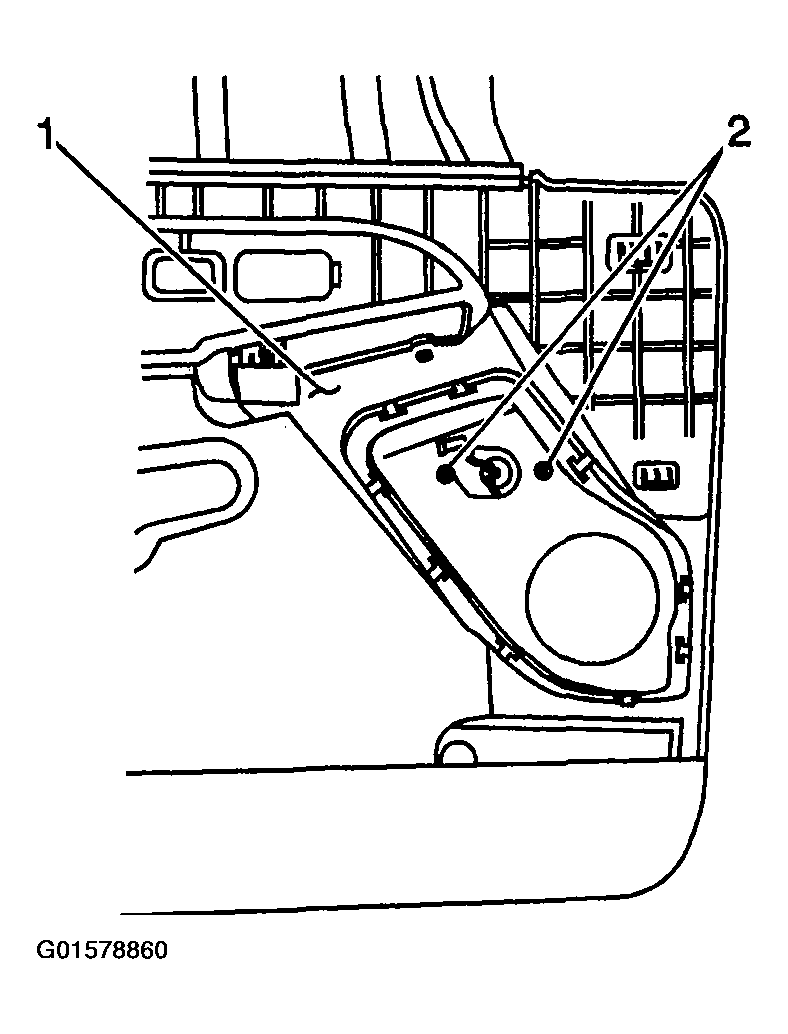

    Fig 1: Front Side Door Upper Speaker
    G01578860Courtesy of GENERAL MOTORS CORP.
