Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the speaker into the subwoofer assembly.
  2. Connect the wire connector.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the 4 retaining screws.

    Ensure the screw follows the same thread in the screw boss so that a new thread is not formed.

    Tighten

    Tighten the screws to 6 N.m (53 lb in).

  4. Move the console forward in order to connect the wire connector.

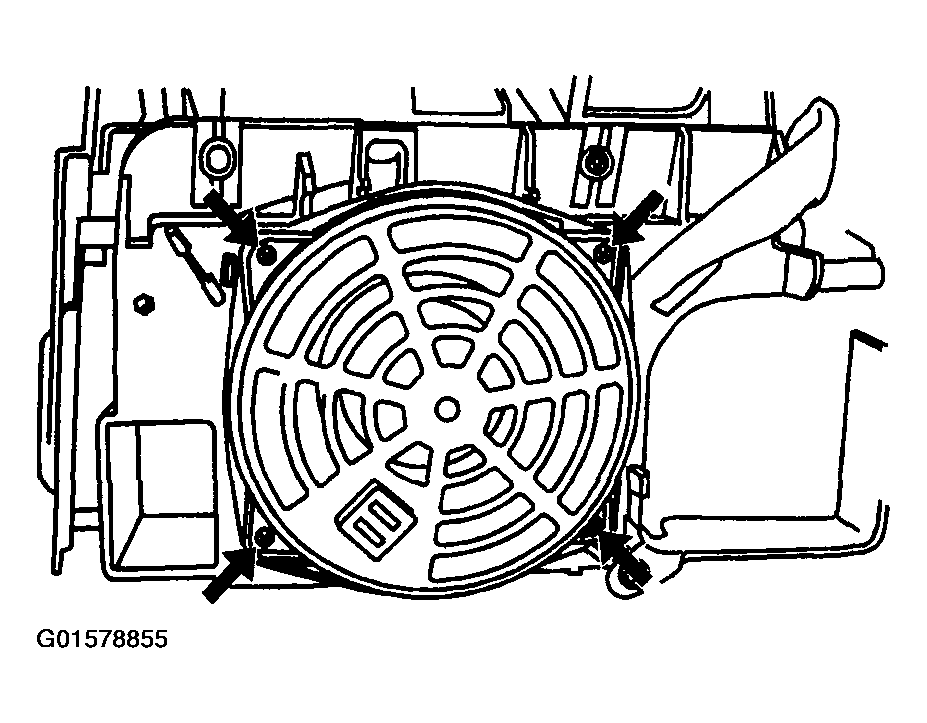

    Fig 1: Front Floor Console Speaker (Subwoofer Speaker)
    G01578855Courtesy of GENERAL MOTORS CORP.
  5. Install the console to the I/P. Refer to CONSOLE REPLACEMENT (EXCEPT PRO) or CONSOLE REPLACEMENT (PRO) .
  6. Install the 2 front seats. Refer to SEAT REPLACEMENT-FRONT BUCKET .
