Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT-SIDE FRONT DOOR .
  2. Remove the speaker by pushing down on the top retainer.
  3. Disconnect the electrical connector.

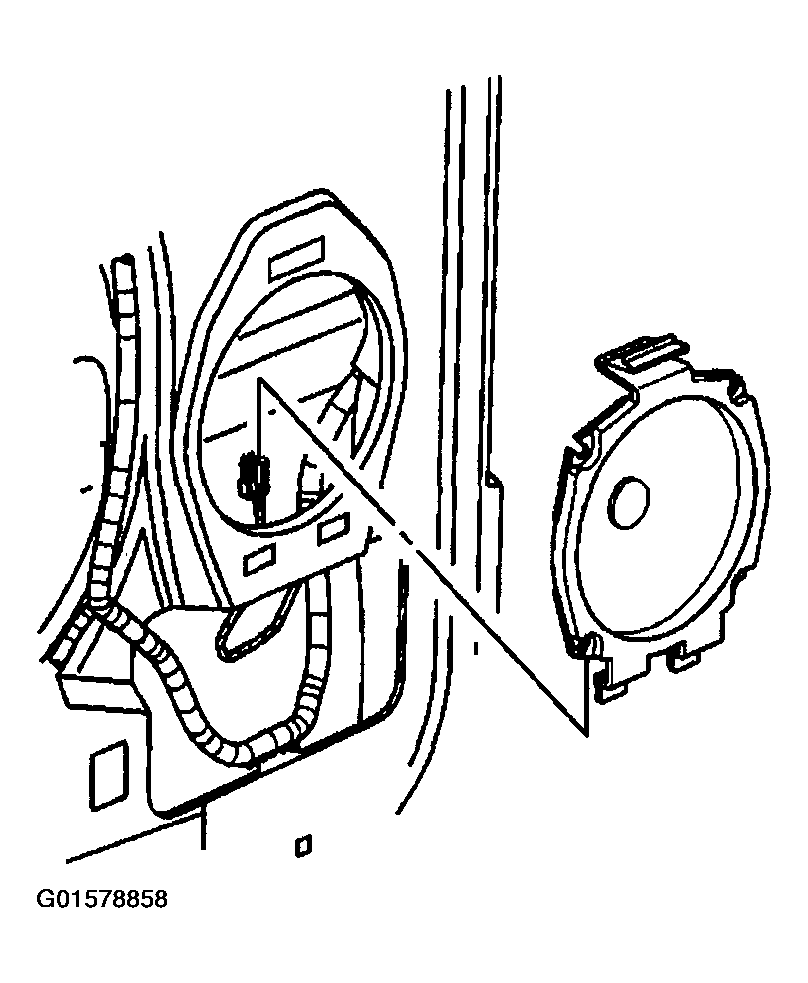

    Fig 1: Front Door Speaker
    G01578858Courtesy of GENERAL MOTORS CORP.
