Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield garnish molding (2). Refer to GARNISH MOLDING REPLACEMENT-WINDSHIELD PILLAR .
  2. Disconnect the electrical connector (3) to the speaker.
  3. Remove the speaker (1) by press until it is out of the molding.

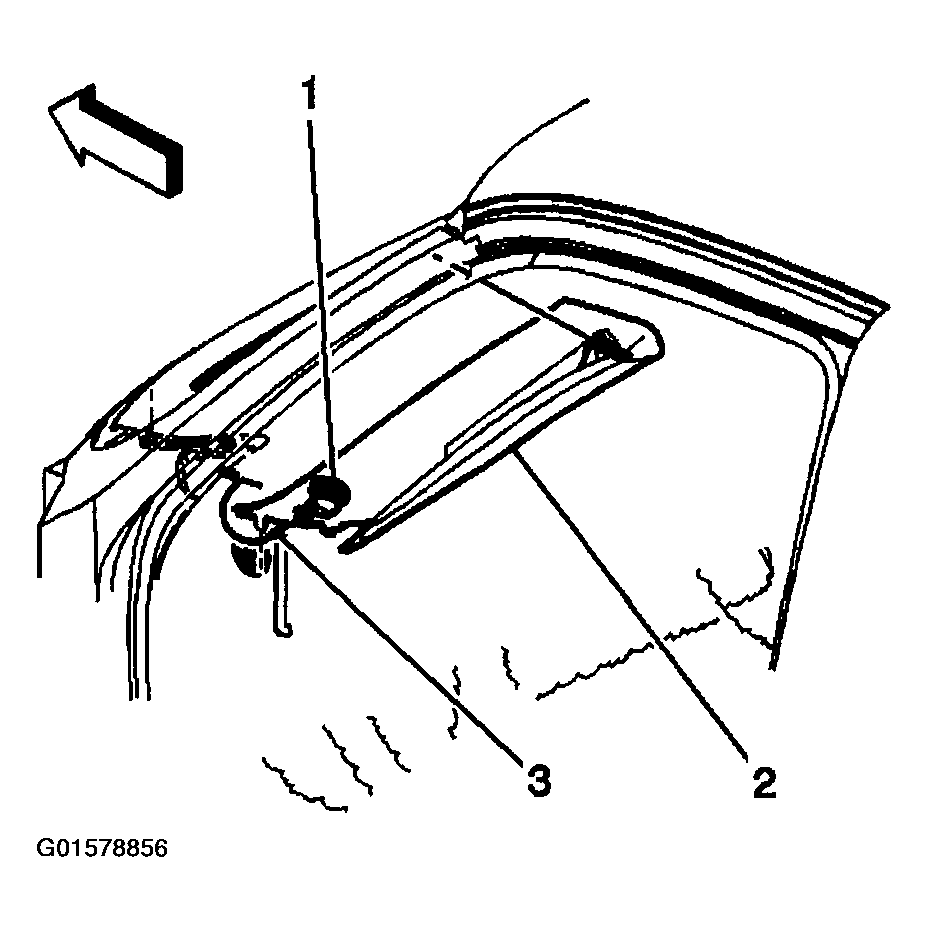

    Fig 1: Front Speaker (Windshield Pillar Speaker)
    G01578856Courtesy of GENERAL MOTORS CORP.
