Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press in the speaker (1) until it is fully seated.
  2. Connect the electrical connector (3).
  3. Install the windshield garnish molding (2). Refer to GARNISH MOLDING REPLACEMENT-WINDSHIELD PILLAR .

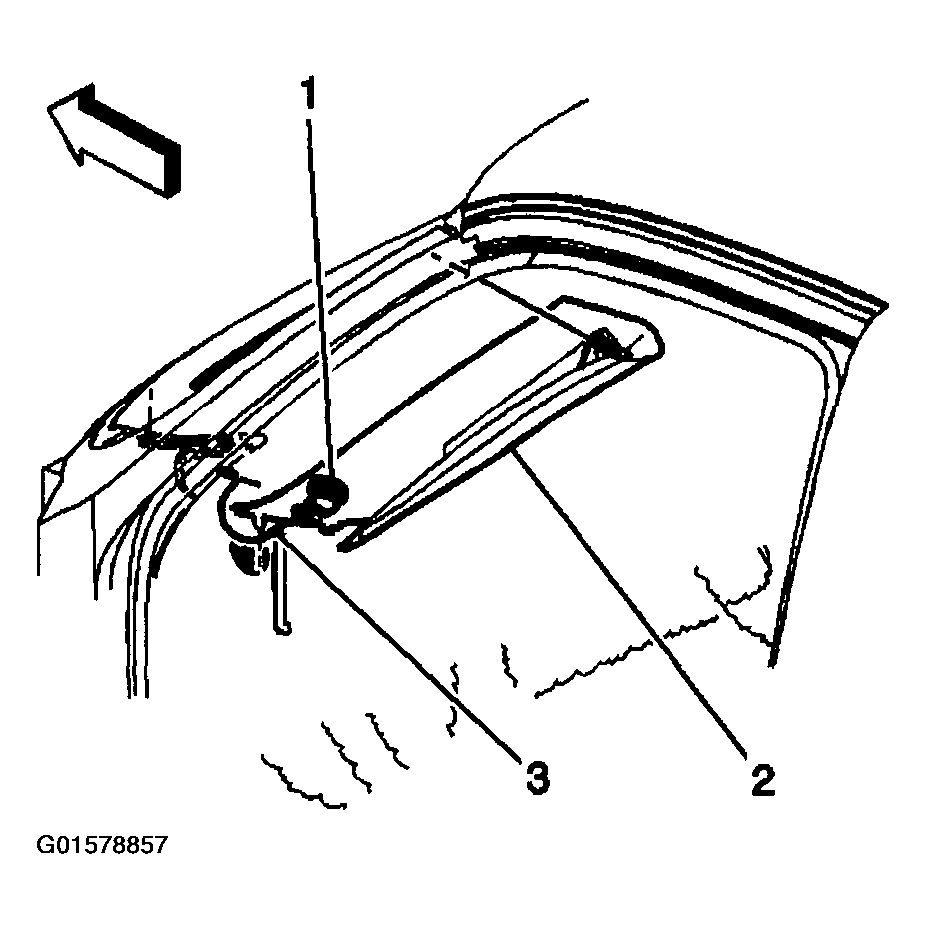

    Fig 1: Front Speaker (Windshield Pillar Speaker)
    G01578857Courtesy of GENERAL MOTORS CORP.
