Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel (1). Refer to TRIM PANEL REPLACEMENT-SIDE FRONT DOOR .
  2. Straighten the retaining tabs (2) on the back of the door trim panel (1).
  3. Remove the grille from the front of the door trim panel.

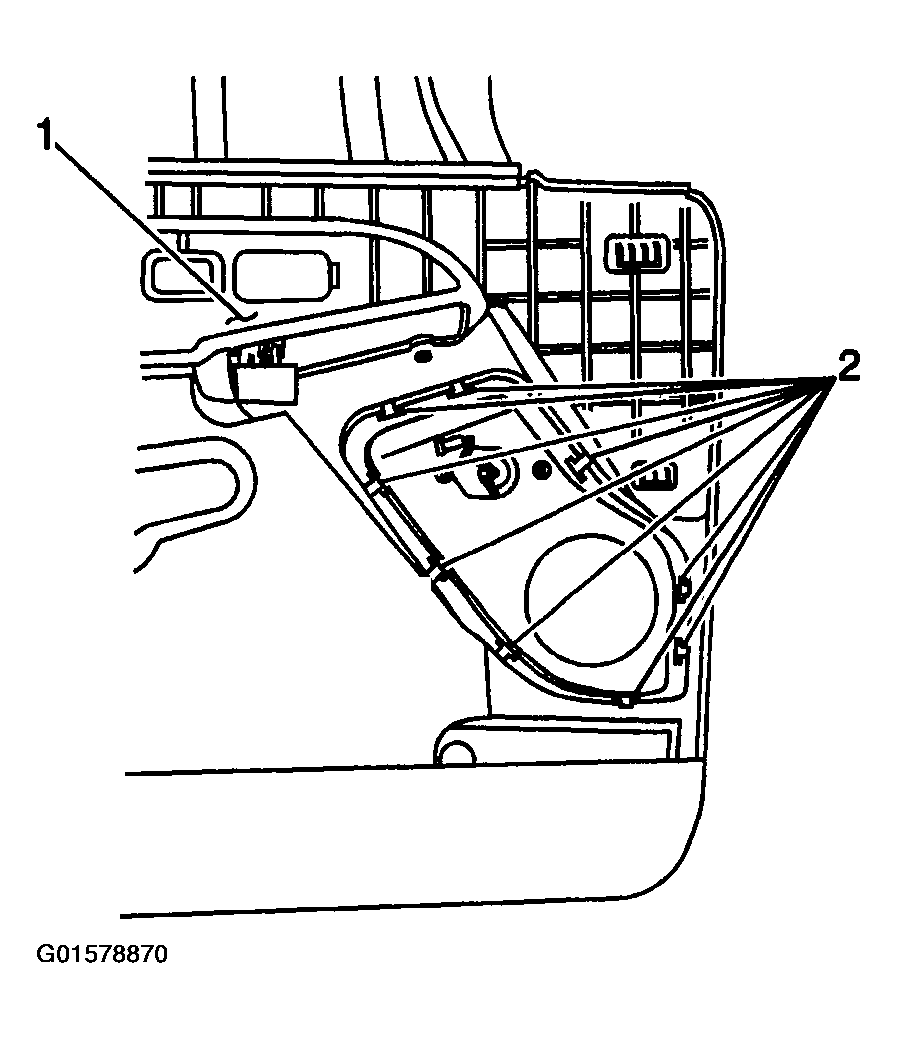

    Fig 1: Removing Front Door Speaker Grille
    G01578870Courtesy of GENERAL MOTORS CORP.
