Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the retaining tabs (2) on the speaker grille to the corresponding slots in the door trim panel.
  2. Push the speaker grille into the door trim panel (1).
  3. Bend the retaining tabs (2) over to secure the speaker grille to the door trim panel (1).
  4. Install the front door trim panel. Refer to TRIM PANEL REPLACEMENT-SIDE FRONT DOOR .

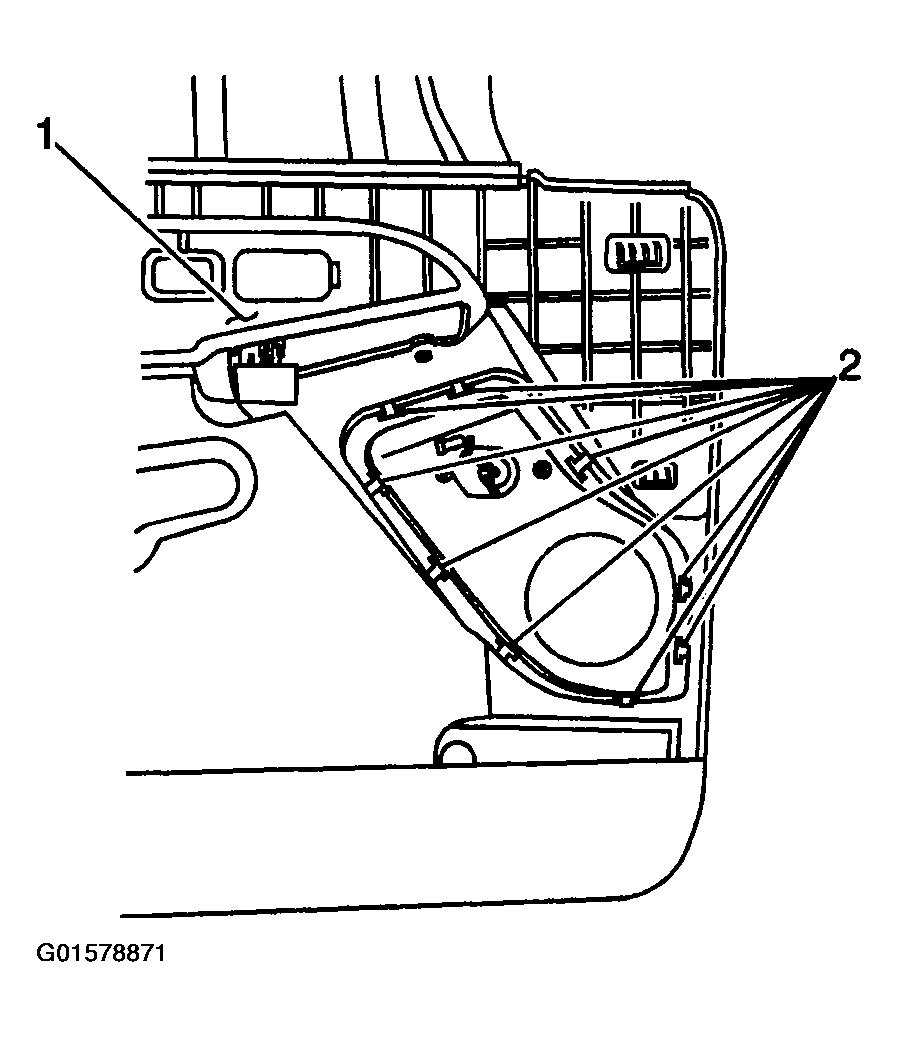

    Fig 1: Installing Front Door Speaker Grille
    G01578871Courtesy of GENERAL MOTORS CORP.
