Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

3. Due to current limiting capabilities in the module, an antenna cable shorted to ground could still show 1200-1800 mV.

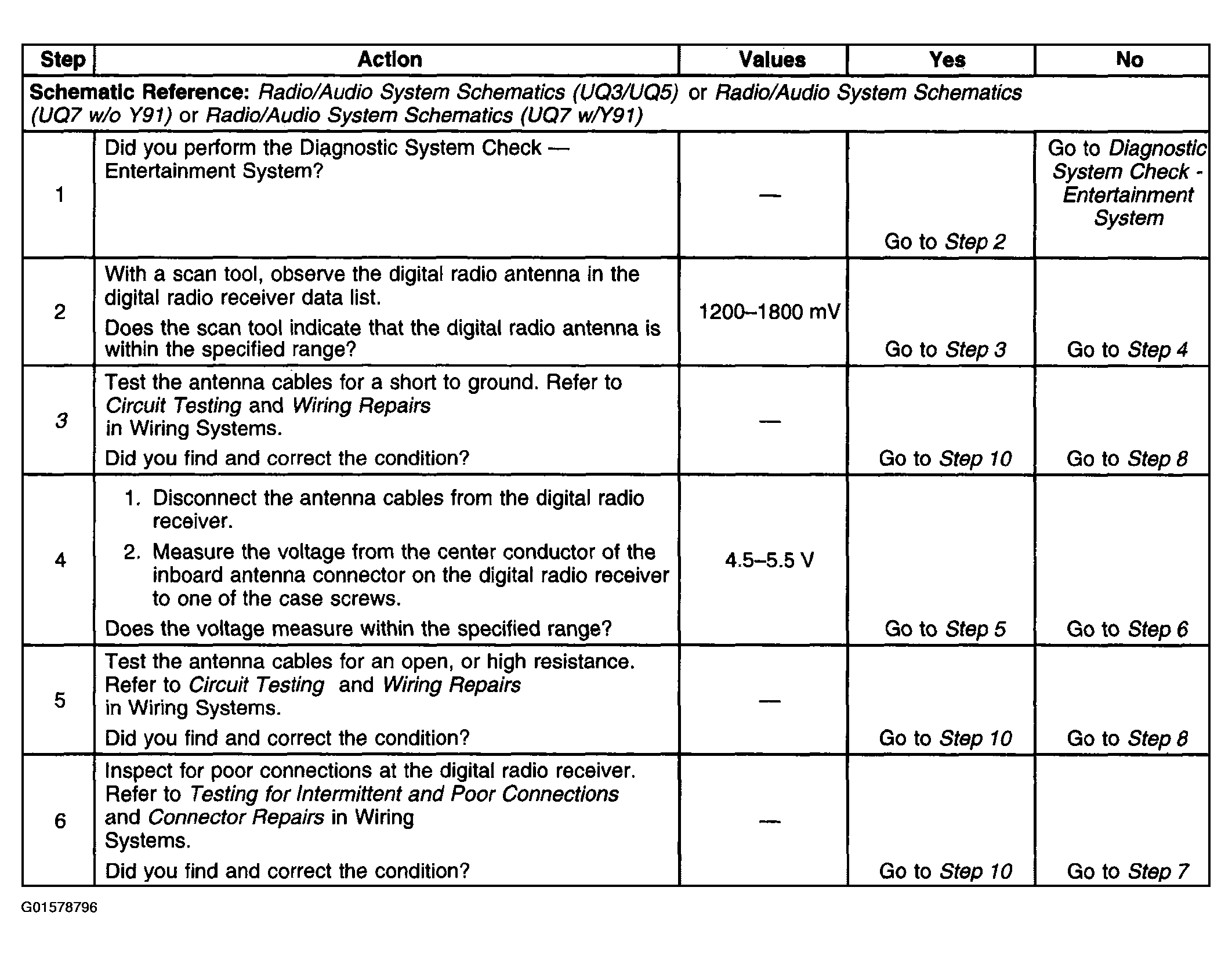

Fig 1: DTC B1259 (Steps 1 - 6)
G01578796Courtesy of GENERAL MOTORS CORP.

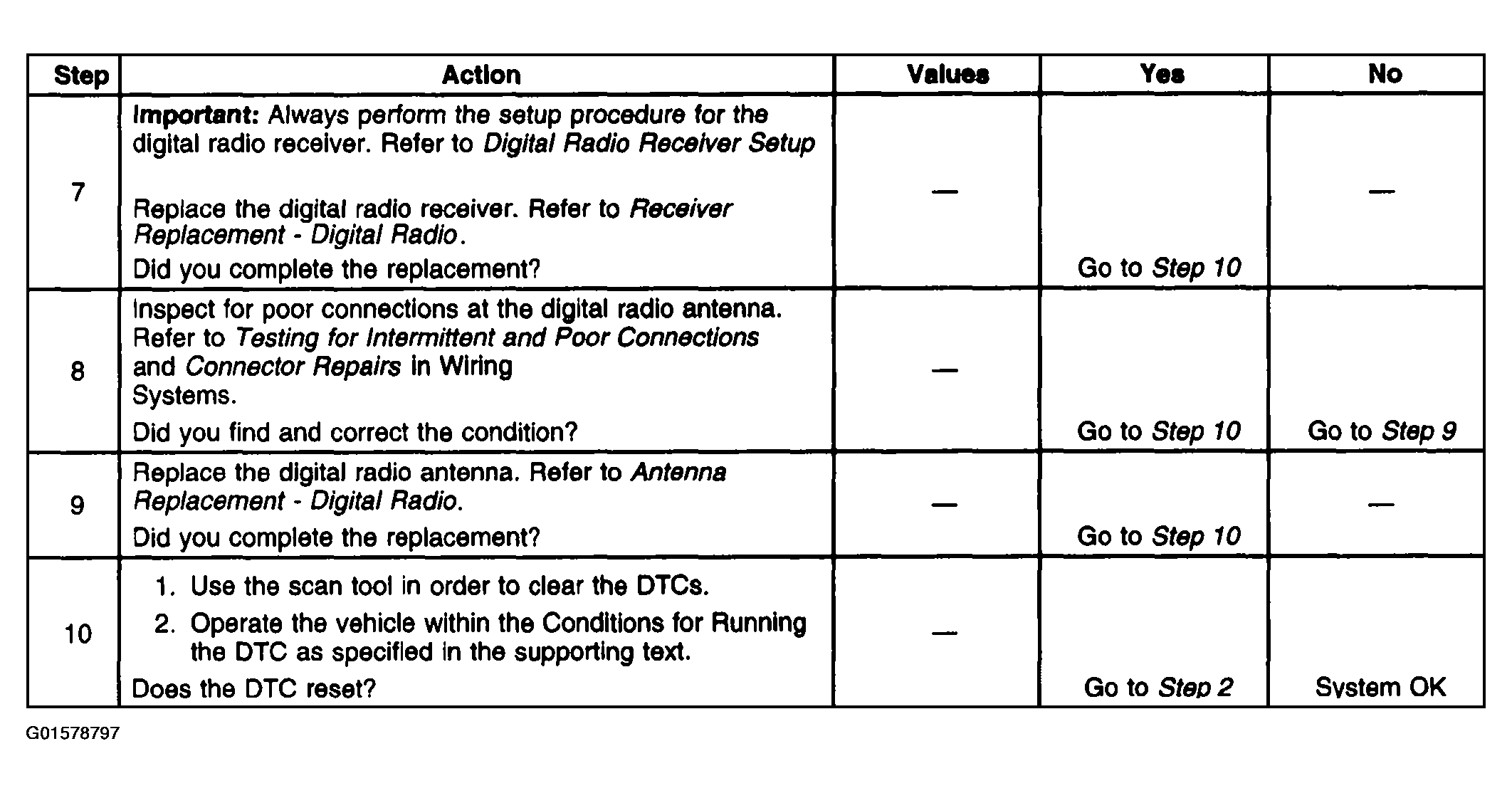

Fig 2: DTC B1259 (Steps 7 - 10)
G01578797Courtesy of GENERAL MOTORS CORP.
