Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery and battery tray from the vehicle. Refer to BATTERY TRAY REPLACEMENT .
  2. Remove the inner wheel housing from the vehicle. Refer to WHEELHOUSE PANEL REPLACEMENT .
  3. Disconnect the electrical connector from the washer pump.
  4. Disconnect the electrical connector from the washer solvent level sensor.
  5. Disconnect the washer hose from the washer pump.
  6. Remove the upper bolt from the washer solvent container.

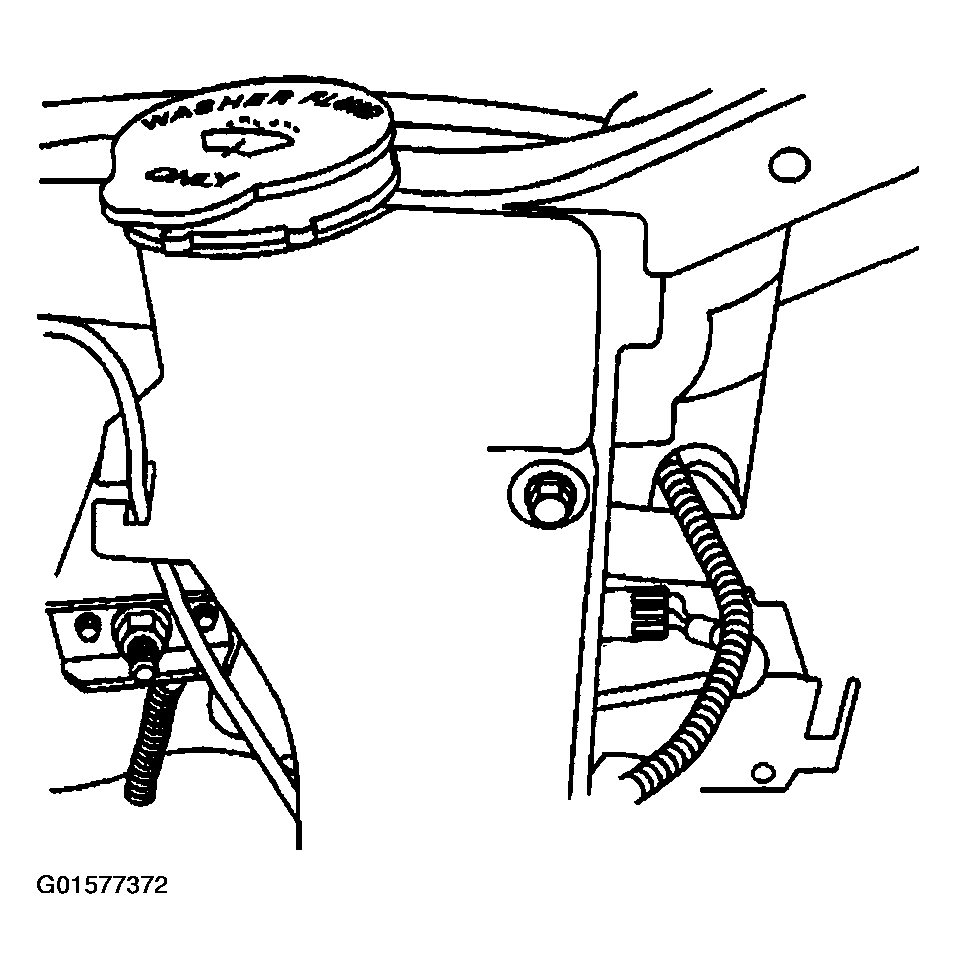

    Fig 1: Removing Upper Bolt
    G01577372Courtesy of GENERAL MOTORS CORP.
  7. Remove the lower bolts from the washer solvent container.
  8. Remove the washer solvent container from the vehicle.

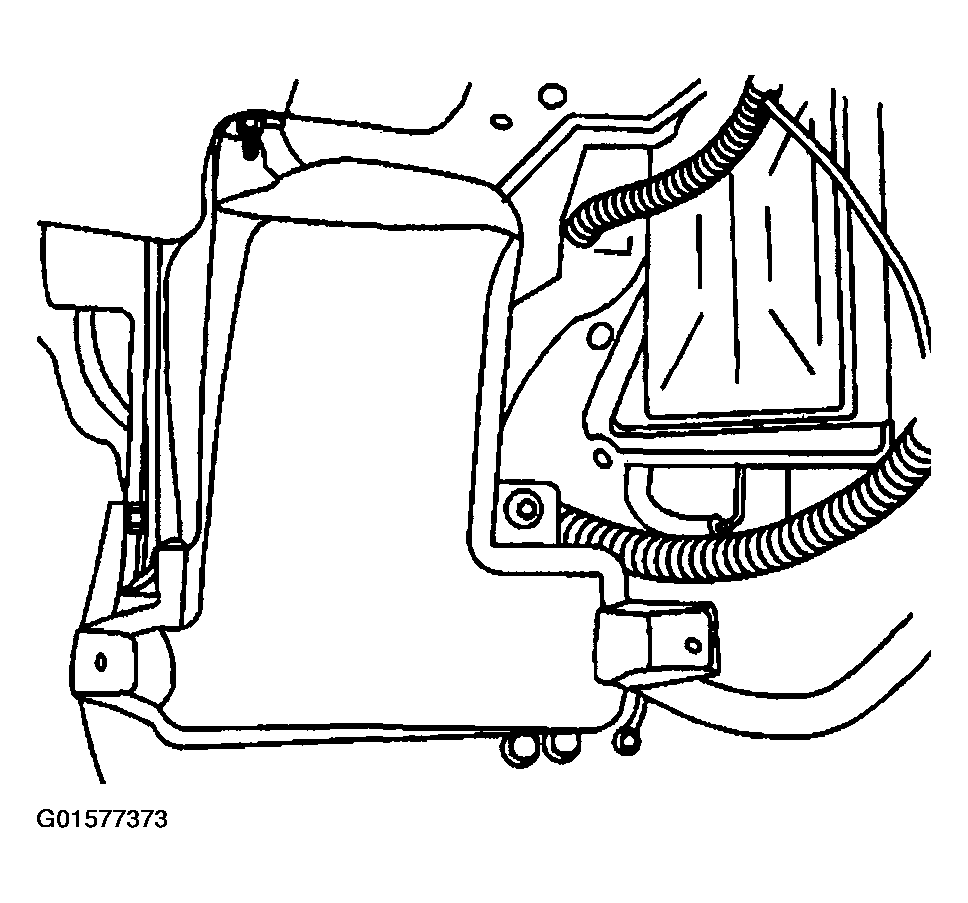

    Fig 2: Removing Washer Solvent Container
    G01577373Courtesy of GENERAL MOTORS CORP.
