Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the washer solvent container into the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the lower bolts.

    Tighten

    Tighten the bolts to 9 N+ACQAJA-m (80 lb in).

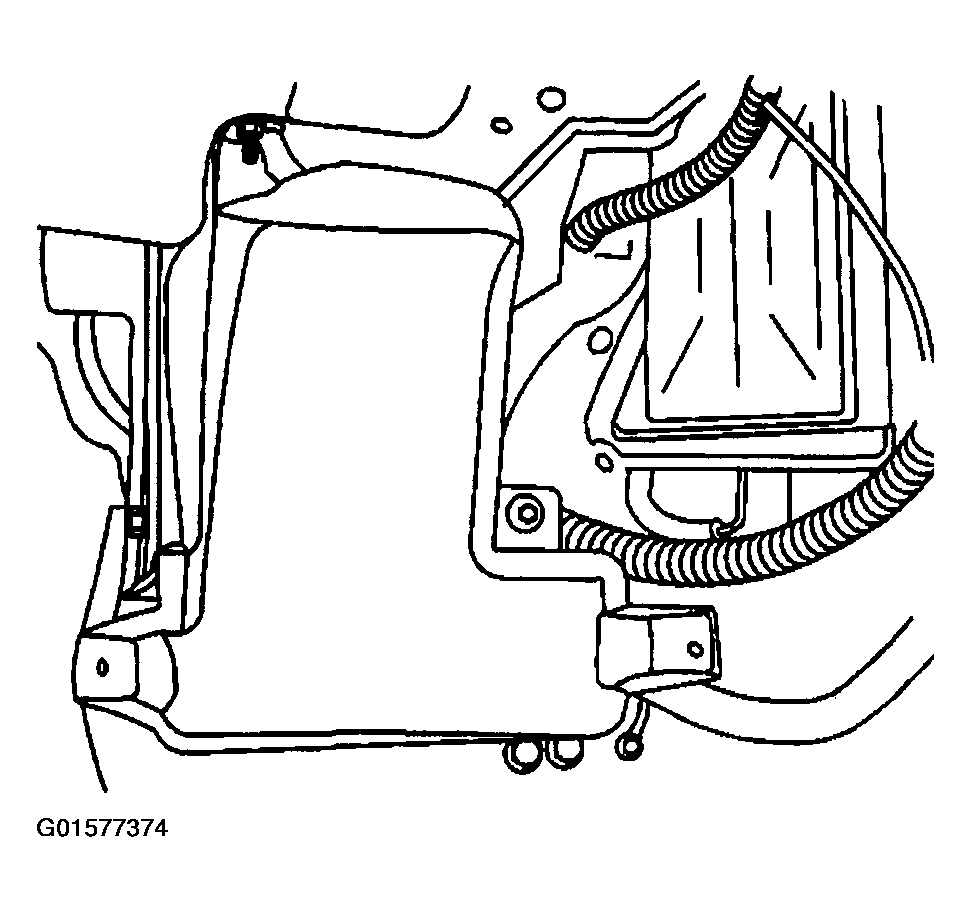

    Fig 1: Installing Washer Solvent Container
    G01577374Courtesy of GENERAL MOTORS CORP.
  3. Install the upper bolt.

    Tighten

    Tighten the bolt to 9 N+ACQAJA-m (80 lb in).

  4. Connect the electrical connector to the washer pump.
  5. Connect the electrical connector to the washer solvent level sensor.
  6. Connect the washer hose to the washer pump.
  7. Install the inner wheel housing. Refer to WHEELHOUSE PANEL REPLACEMENT .
  8. Install the battery and battery tray. Refer to BATTERY TRAY REPLACEMENT .

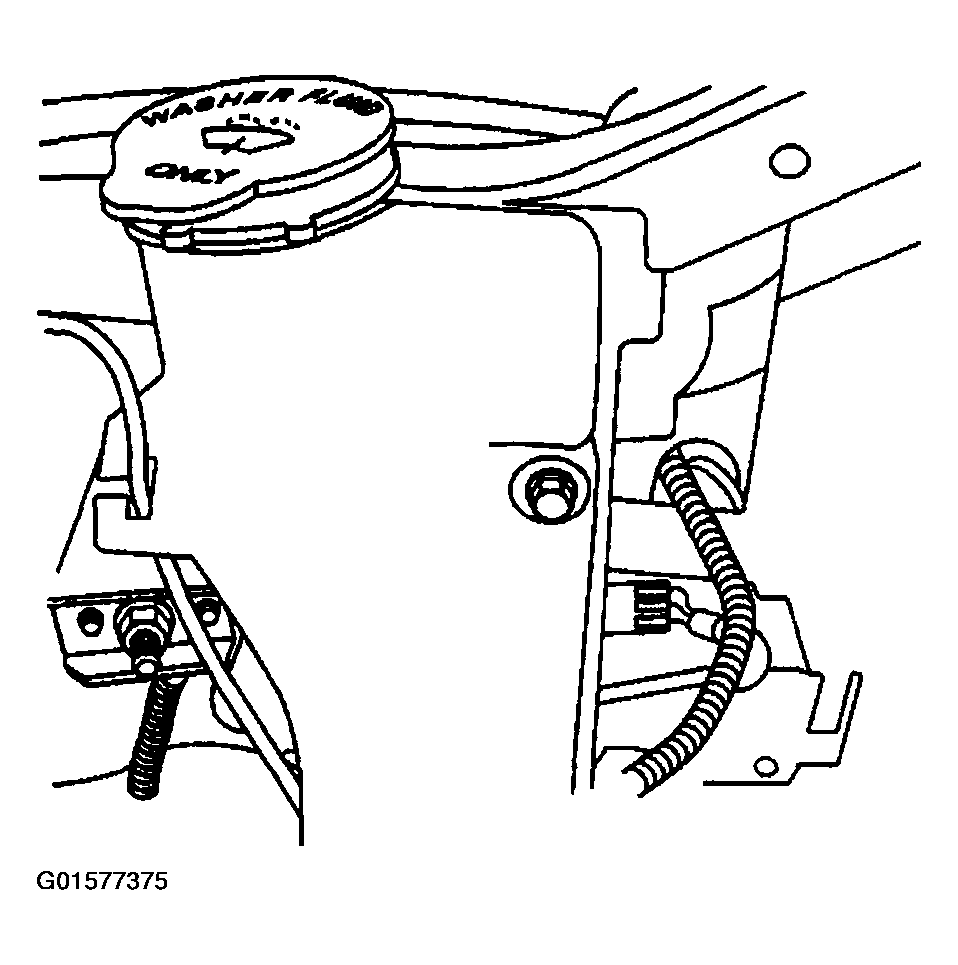

    Fig 2: Installing Upper Bolt
    G01577375Courtesy of GENERAL MOTORS CORP.
