Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the washer solvent container. Refer to Washer Pump/Reservoir Replacement   .
  2. Remove the washer pumps from the reservoir.

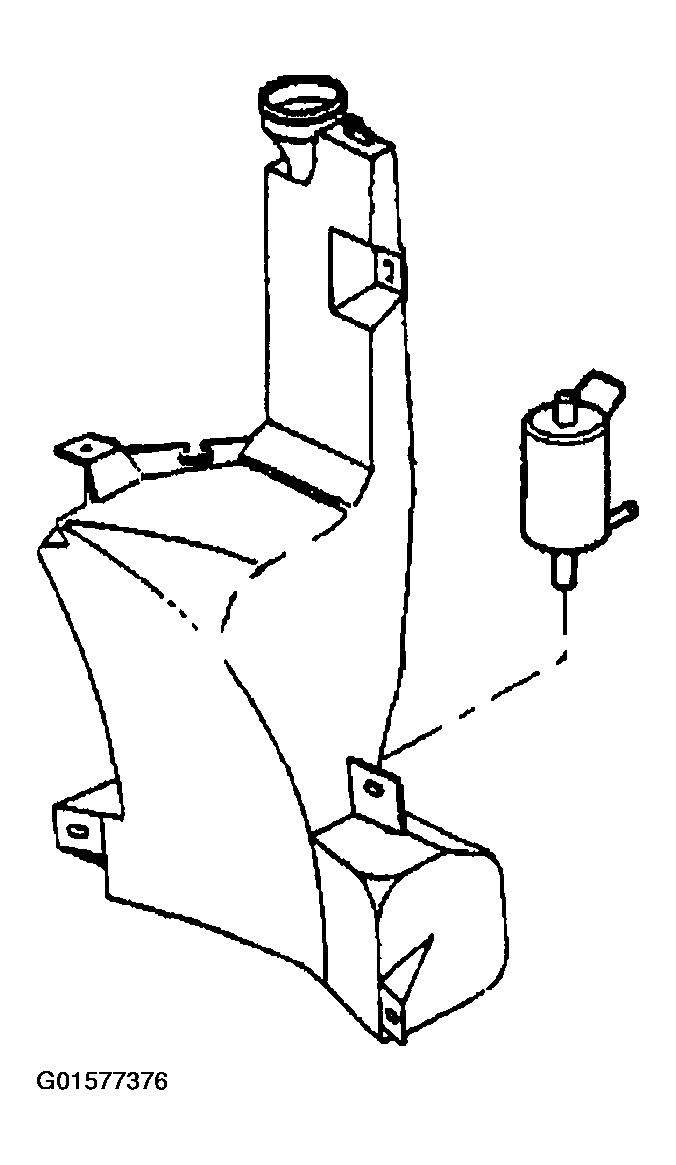

    Fig 1: Washer Pump
    G01577376Courtesy of GENERAL MOTORS CORP.
