Test Description
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

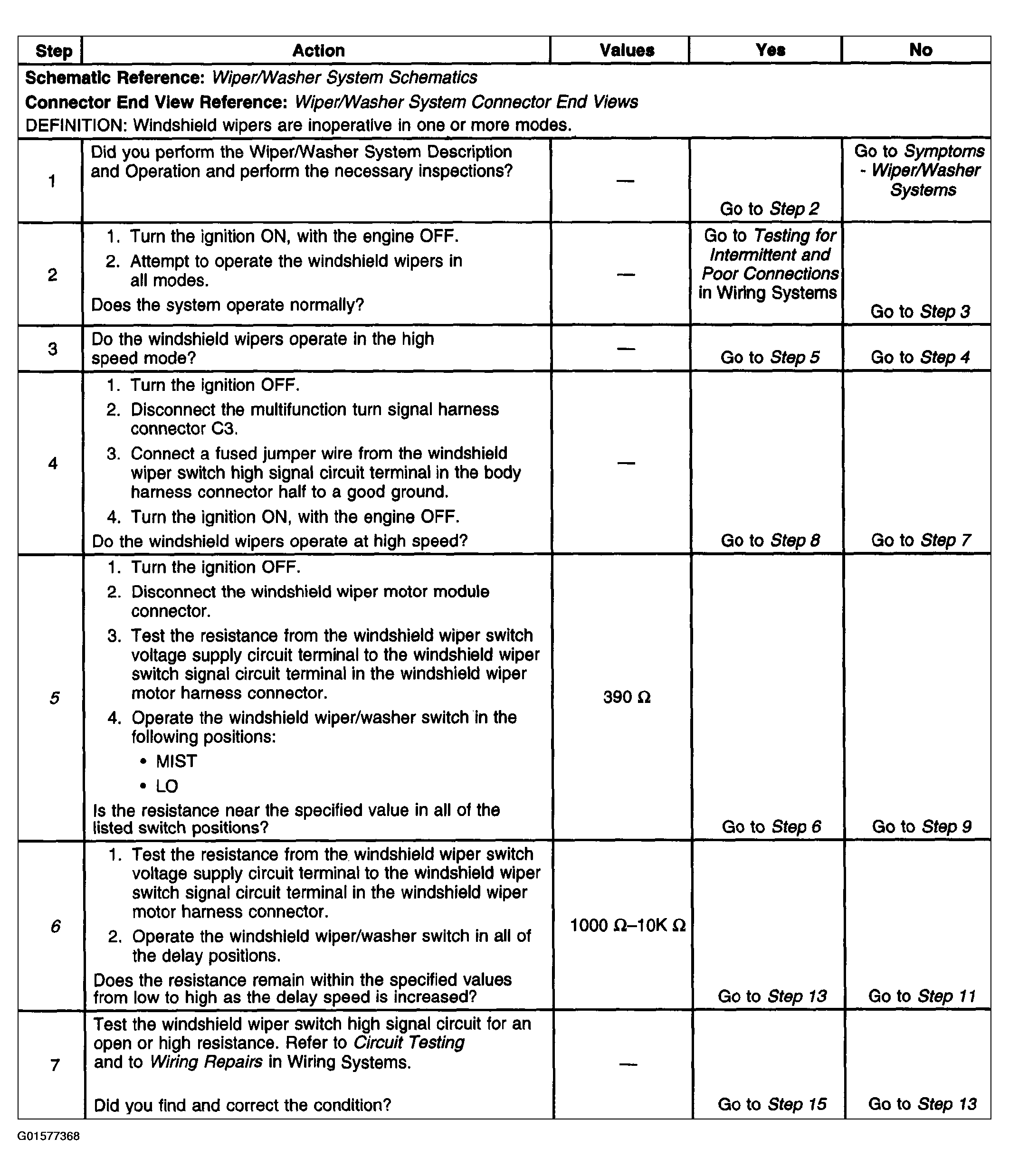

The numbers below refer to the step numbers on the diagnostic table.
5. This step tests for continuity through the 390 + CQAJA- resistor in the windshield wiper/washer switch.
6. This step tests for continuity through the delay resistors in the windshield wiper/washer switch. The measured resistance will change in sequence from low to high as the delay speed is increased.
