Interior Lights Dimming Schematics

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

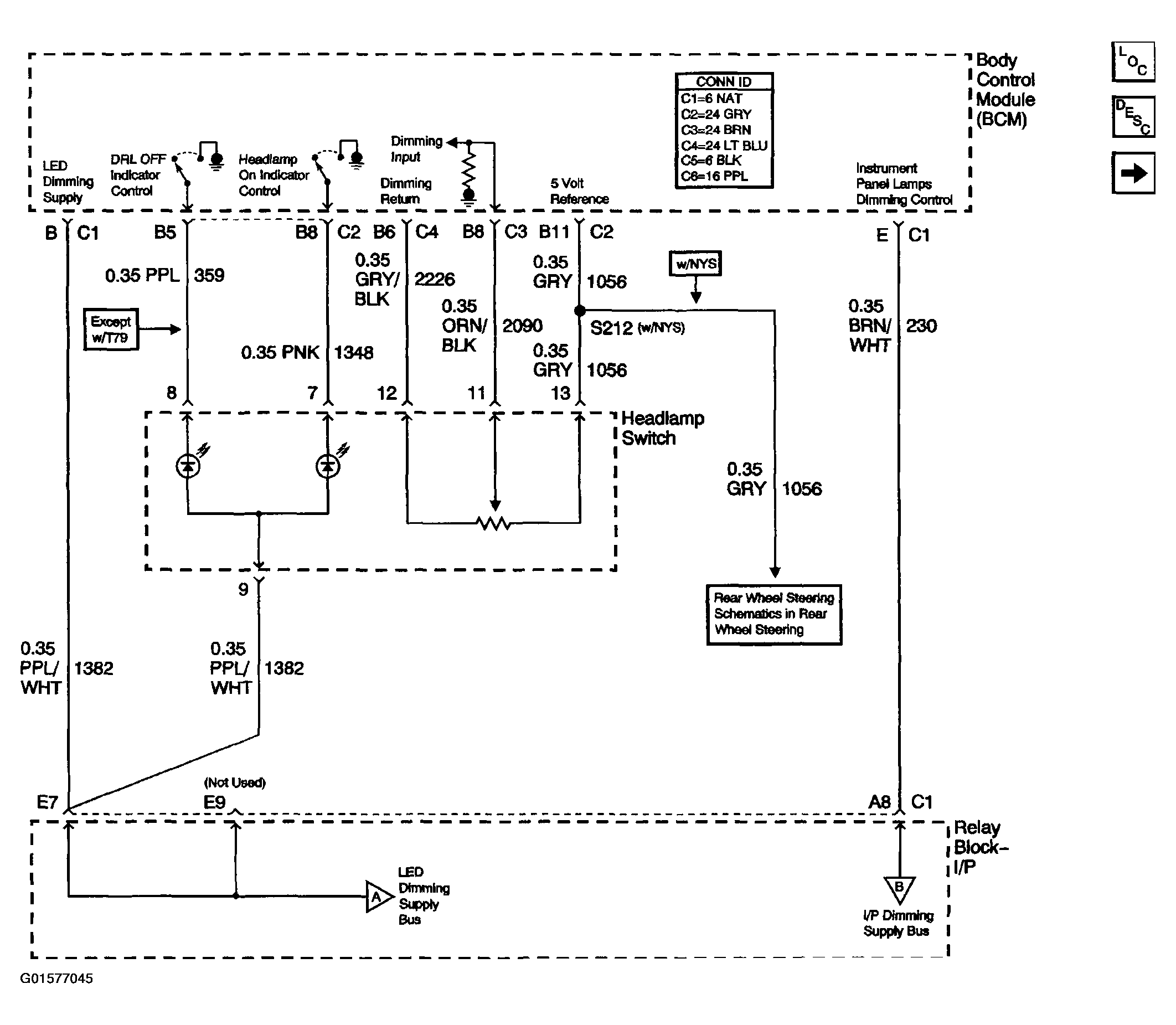

Fig 1: Interior Lights Dimming Schematics (Interior Lights & LED Dimming Control)

G01577045

Courtesy of GENERAL MOTORS CORP.

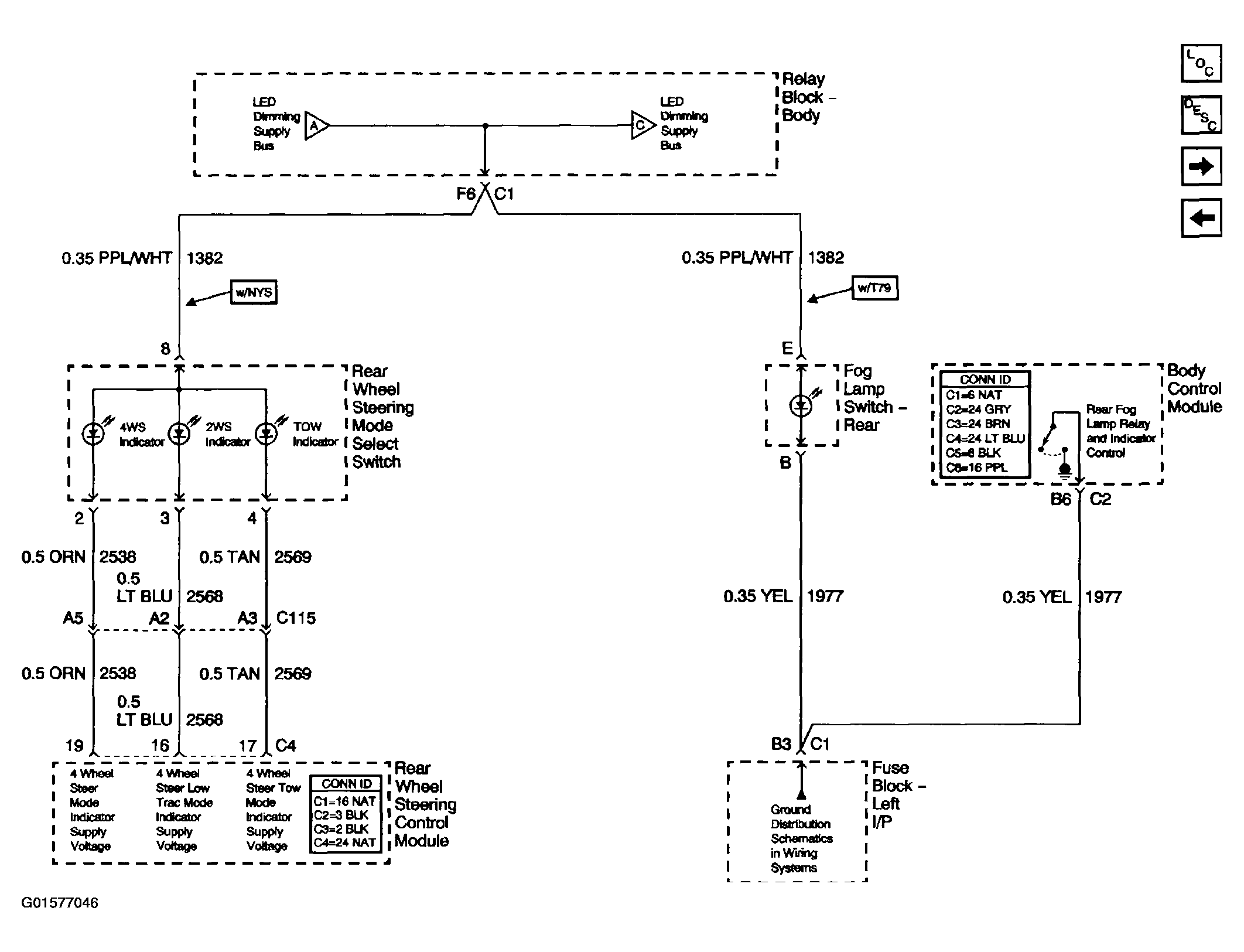

Fig 2: Interior Lights Dimming Schematics (LED Dimming Supply Voltage - 1 Of 3)

G01577046

Courtesy of GENERAL MOTORS CORP.

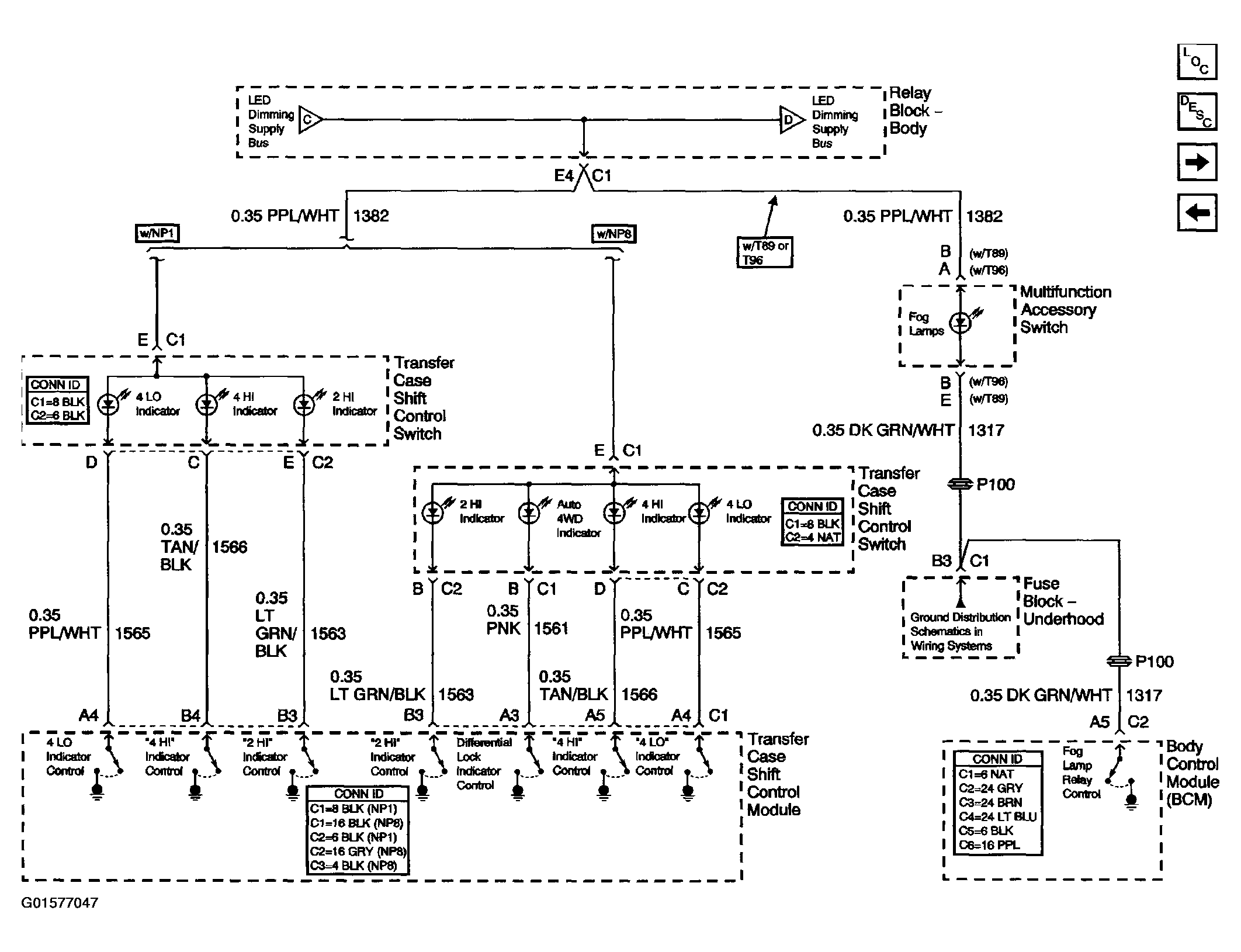

Fig 3: Interior Lights Dimming Schematics (LED Dimming Supply Voltage - 2 Of 3)

G01577047

Courtesy of GENERAL MOTORS CORP.

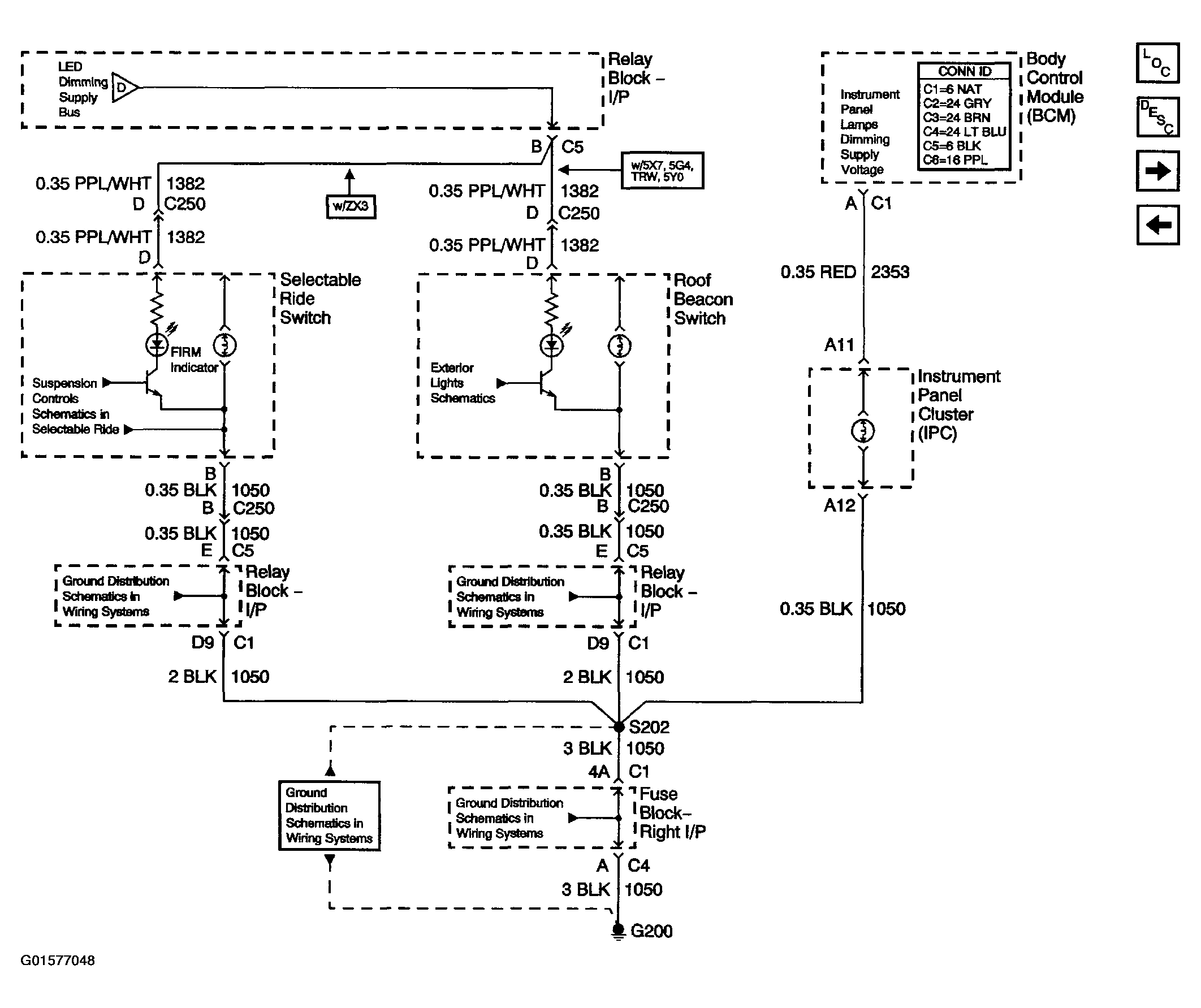

Fig 4: Interior Lights Dimming Schematics (LED Dimming Supply Voltage - 3 Of 3)

G01577048

Courtesy of GENERAL MOTORS CORP.

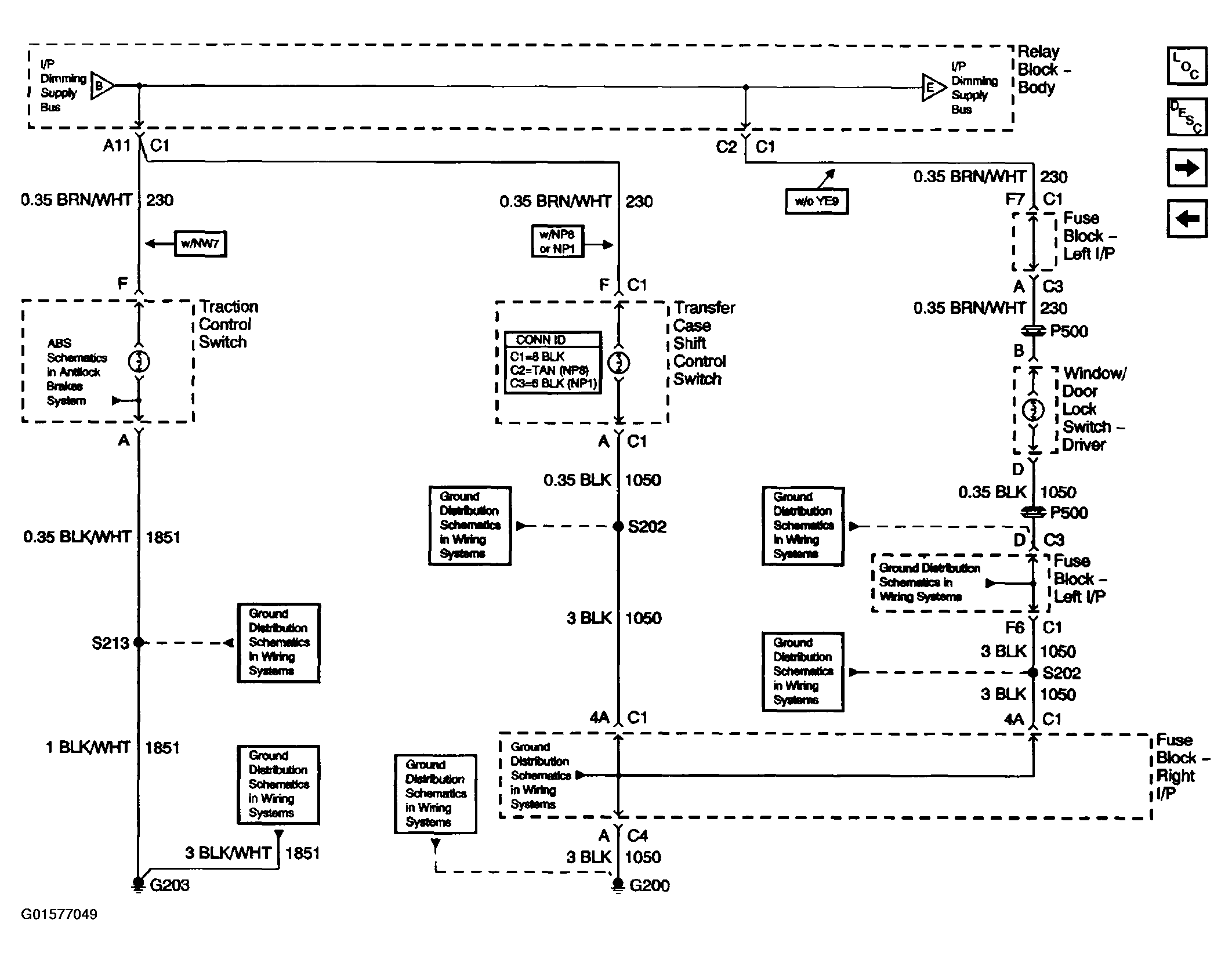

Fig 5: Interior Lights Dimming Schematics (I/P Dimming Supply Voltage - 1 Of 5)

G01577049

Courtesy of GENERAL MOTORS CORP.

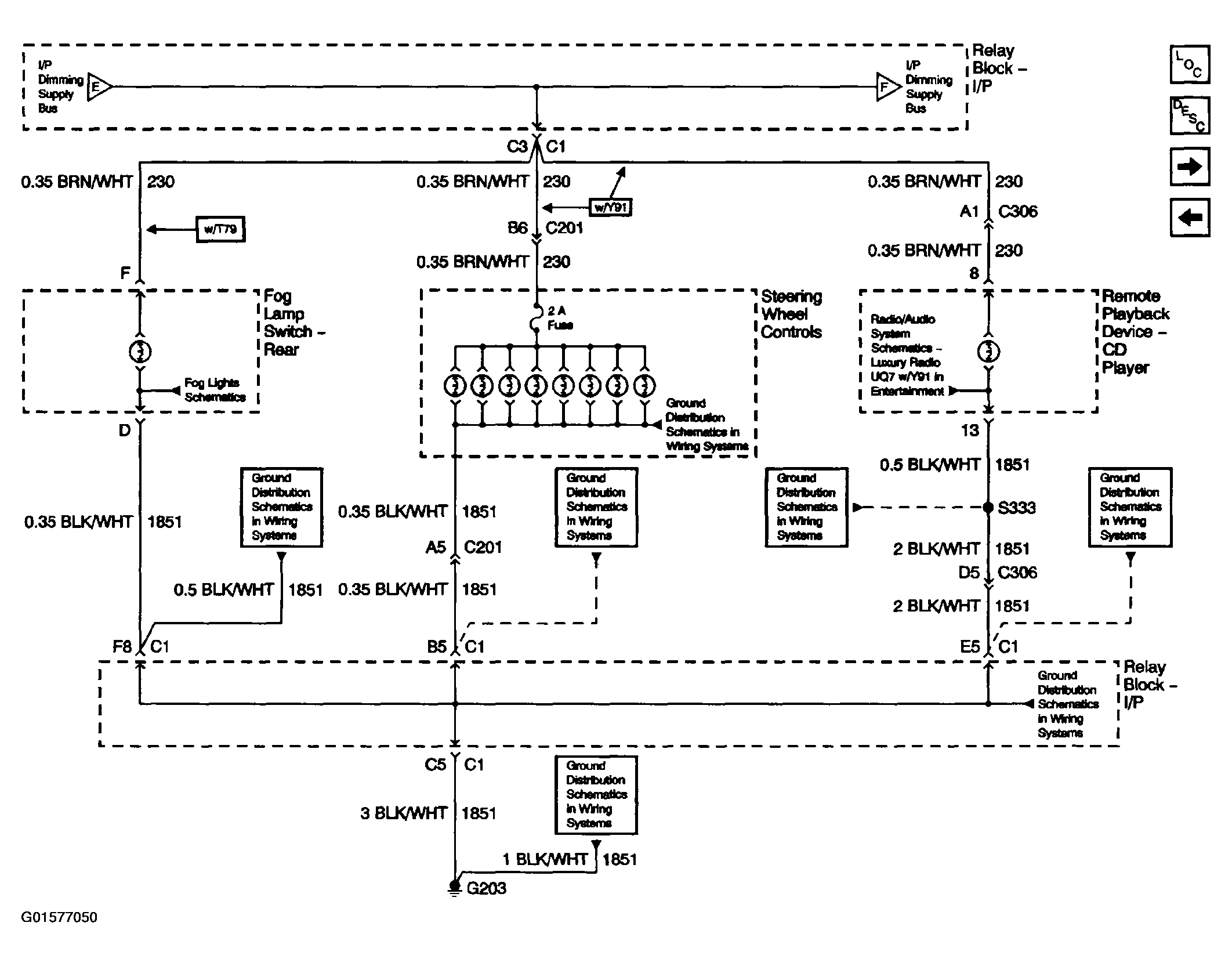

Fig 6: Interior Lights Dimming Schematics (I/P Dimming Supply Voltage - 2 Of 5)

G01577050

Courtesy of GENERAL MOTORS CORP.

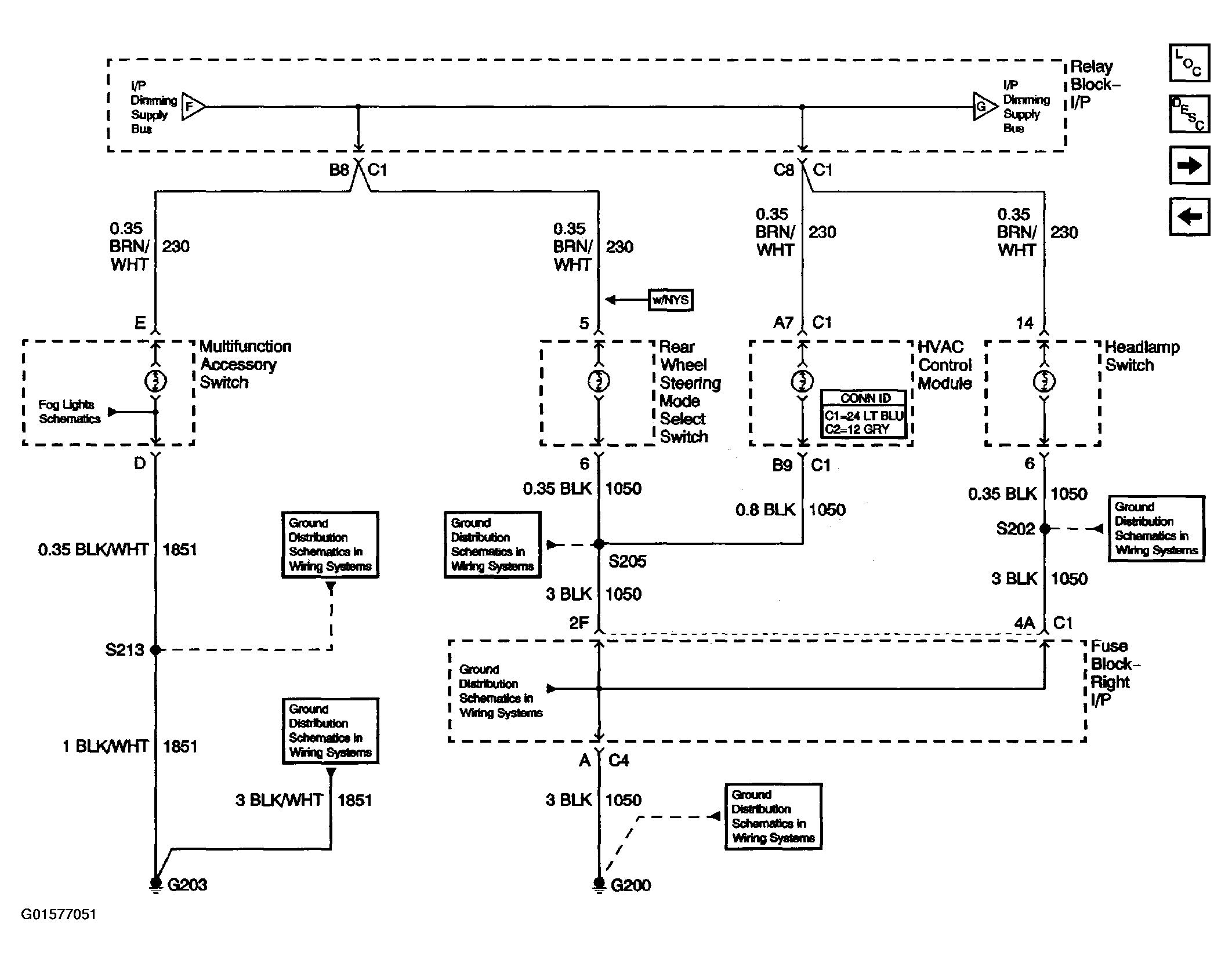

Fig 7: Interior Lights Dimming Schematics (I/P Dimming Supply Voltage - 3 Of 5)

G01577051

Courtesy of GENERAL MOTORS CORP.

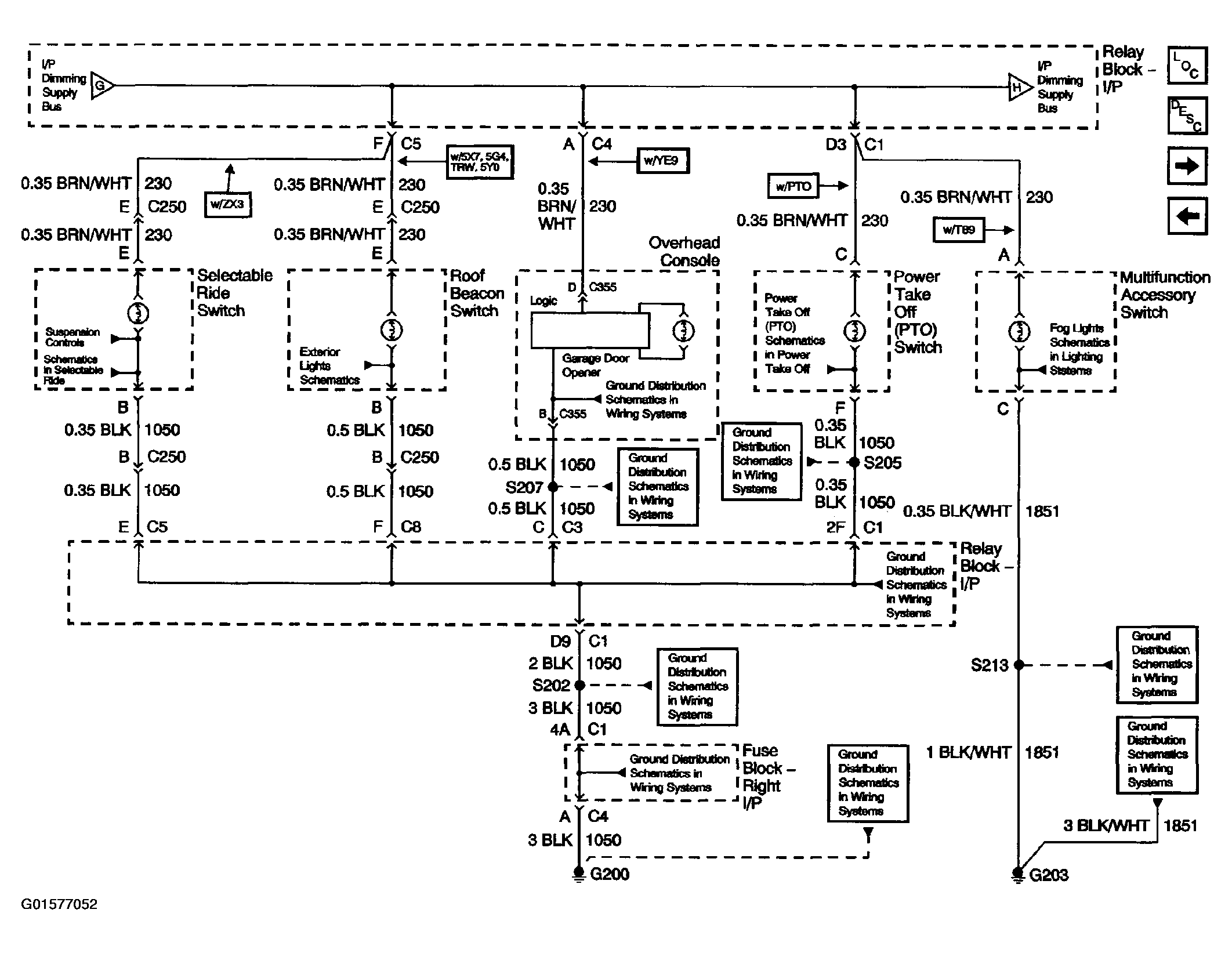

Fig 8: Interior Lights Dimming Schematics (I/P Dimming Supply Voltage - 4 Of 5)

G01577052

Courtesy of GENERAL MOTORS CORP.

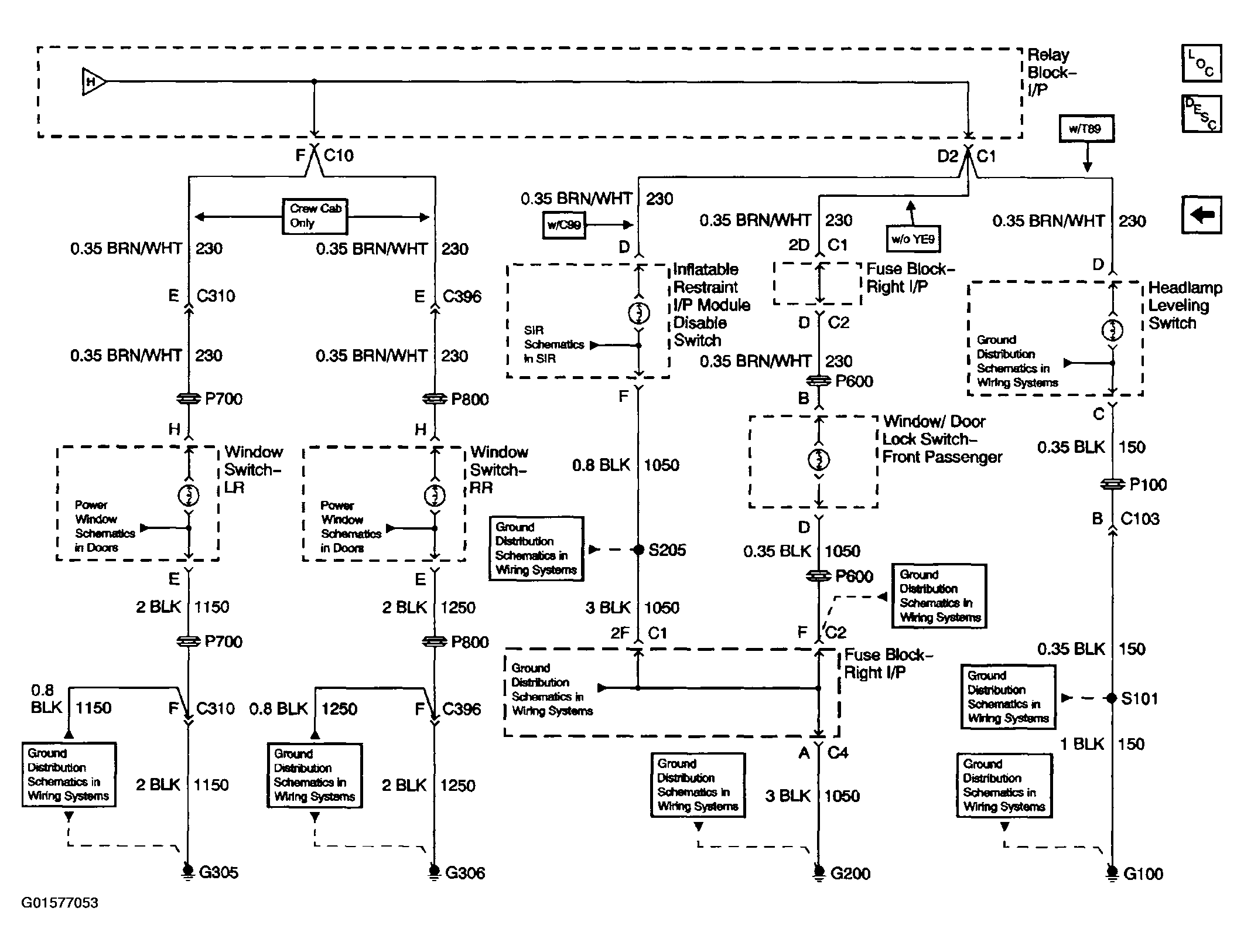

Fig 9: Interior Lights Dimming Schematics (I/P Dimming Supply Voltage - 5 Of 5)

G01577053

Courtesy of GENERAL MOTORS CORP.
