Exterior Lights Schematics

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

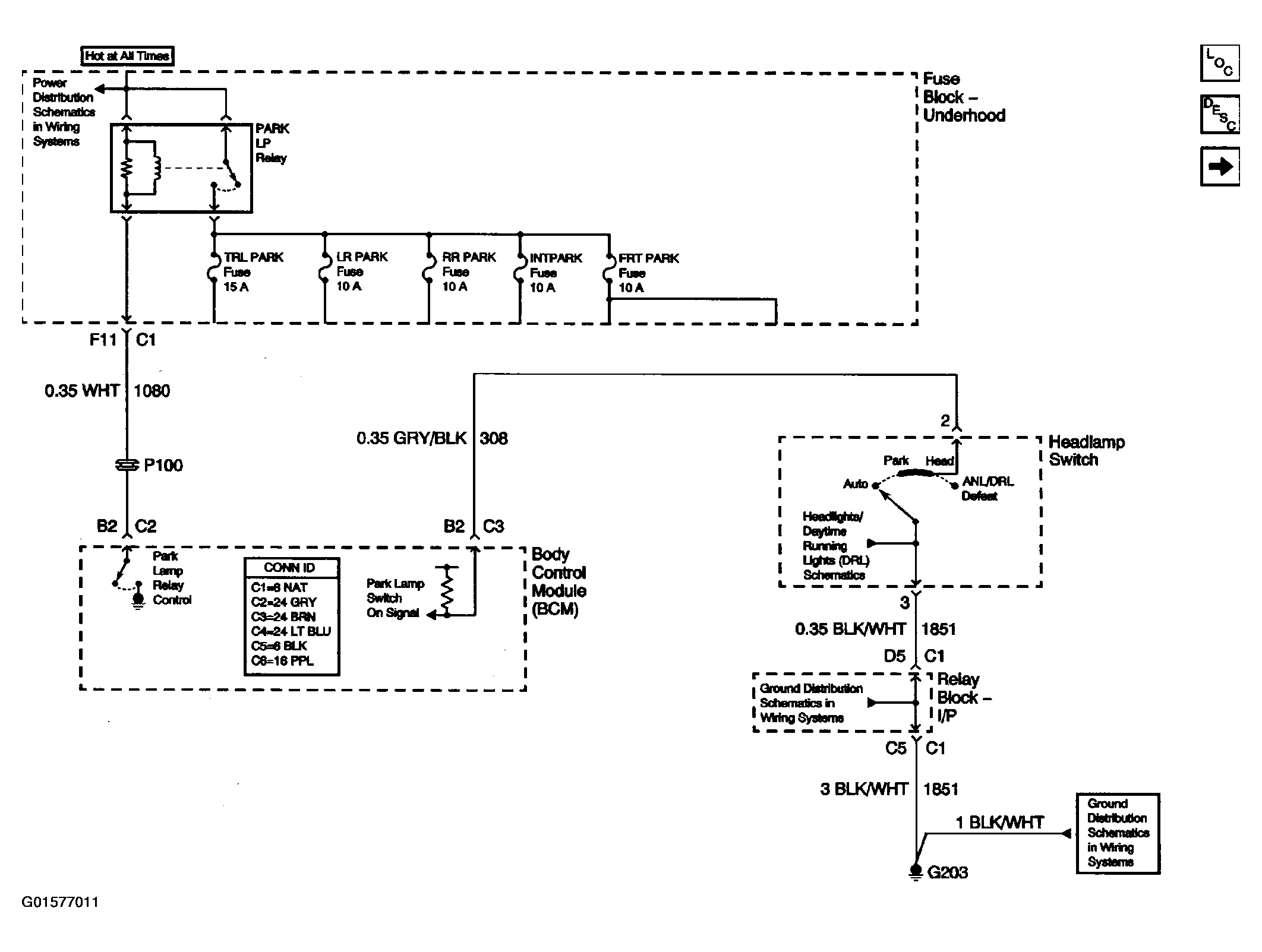

Fig 1: Exterior Lights Schematics (Park Lamp Relay - Domestic)

G01577011

Courtesy of GENERAL MOTORS CORP.

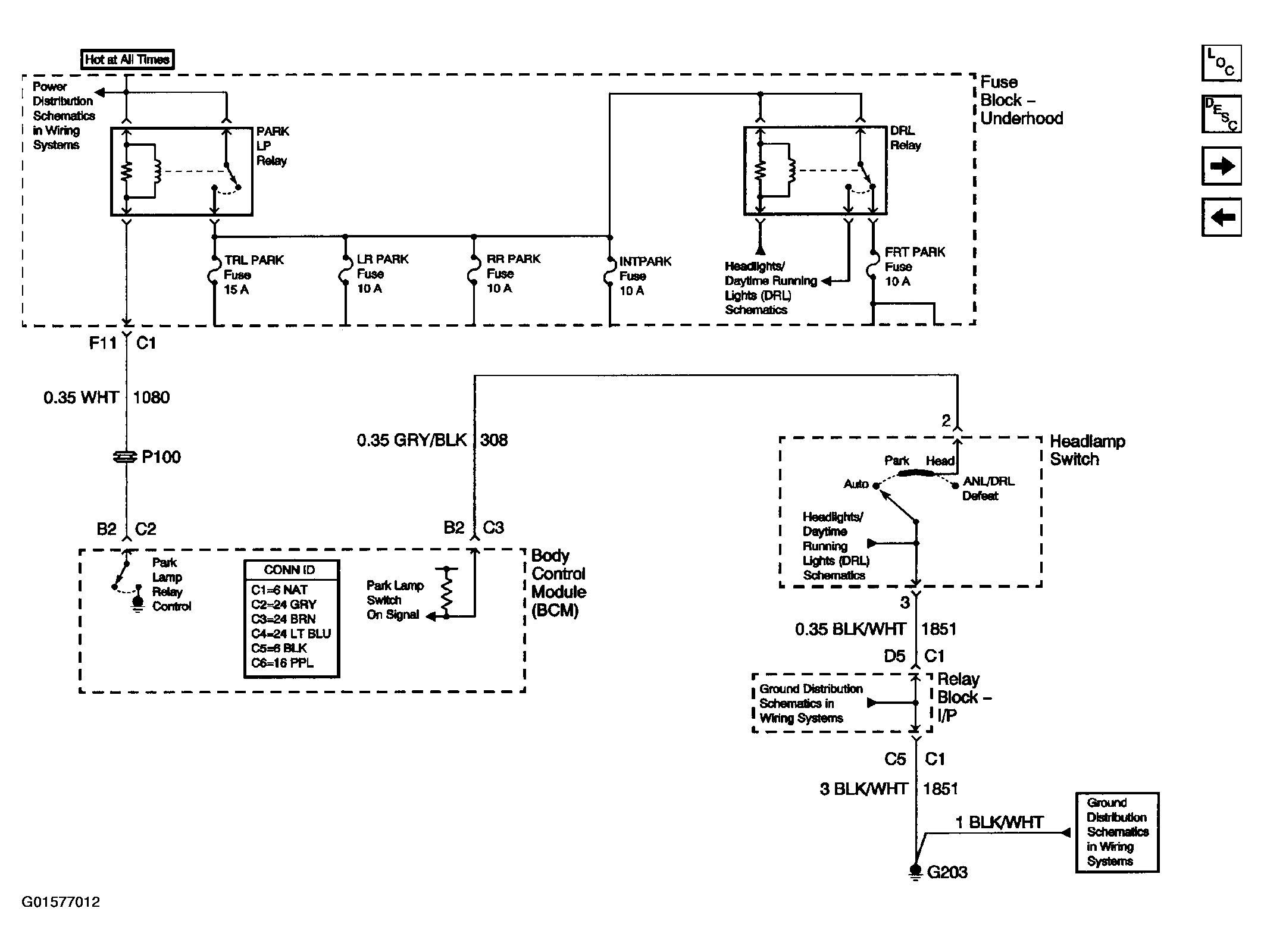

Fig 2: Exterior Lights Schematics (Park Lamp Relay - Export)

G01577012

Courtesy of GENERAL MOTORS CORP.

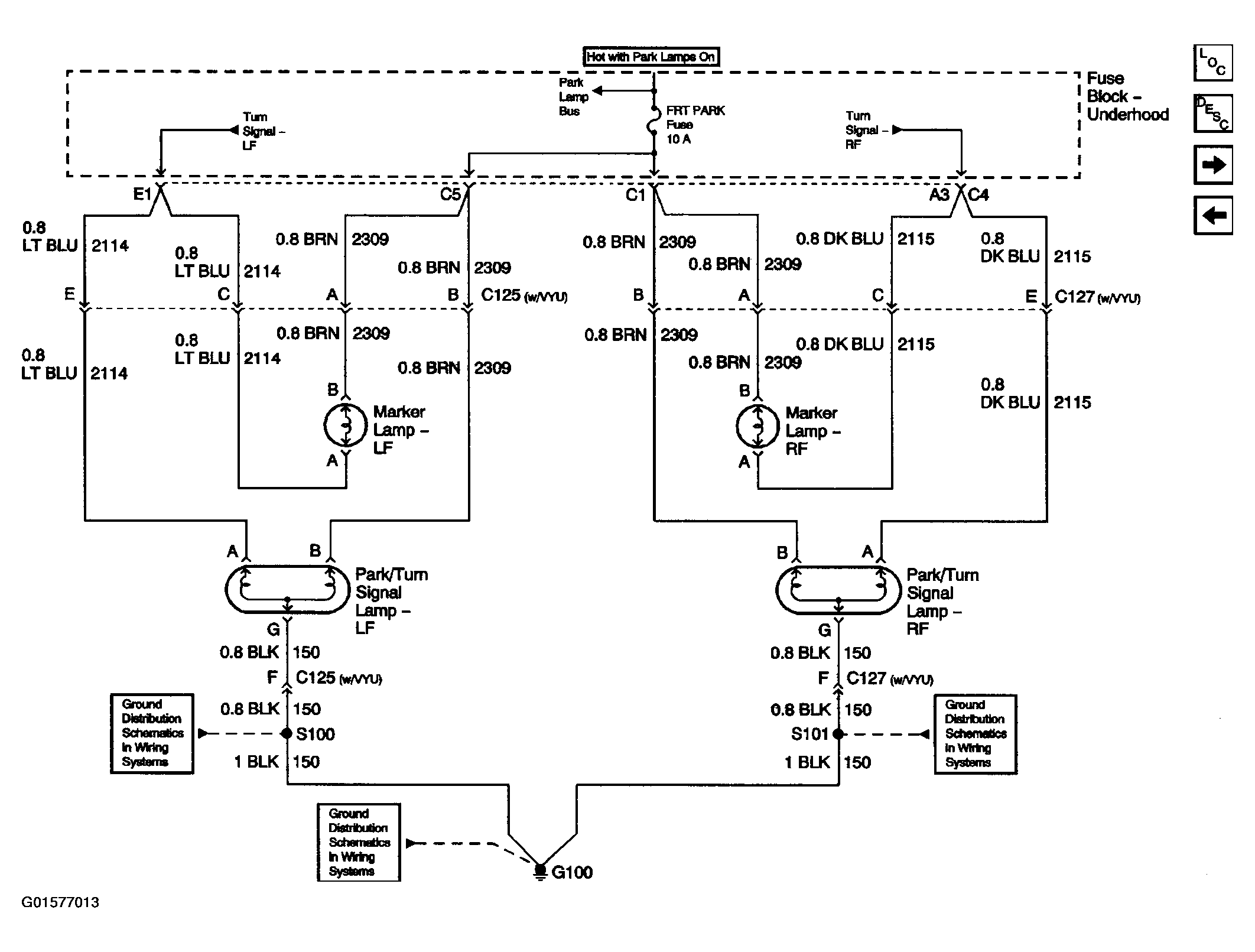

Fig 3: Exterior Lights Schematics (Front Park Lamps - Domestic)

G01577013

Courtesy of GENERAL MOTORS CORP.

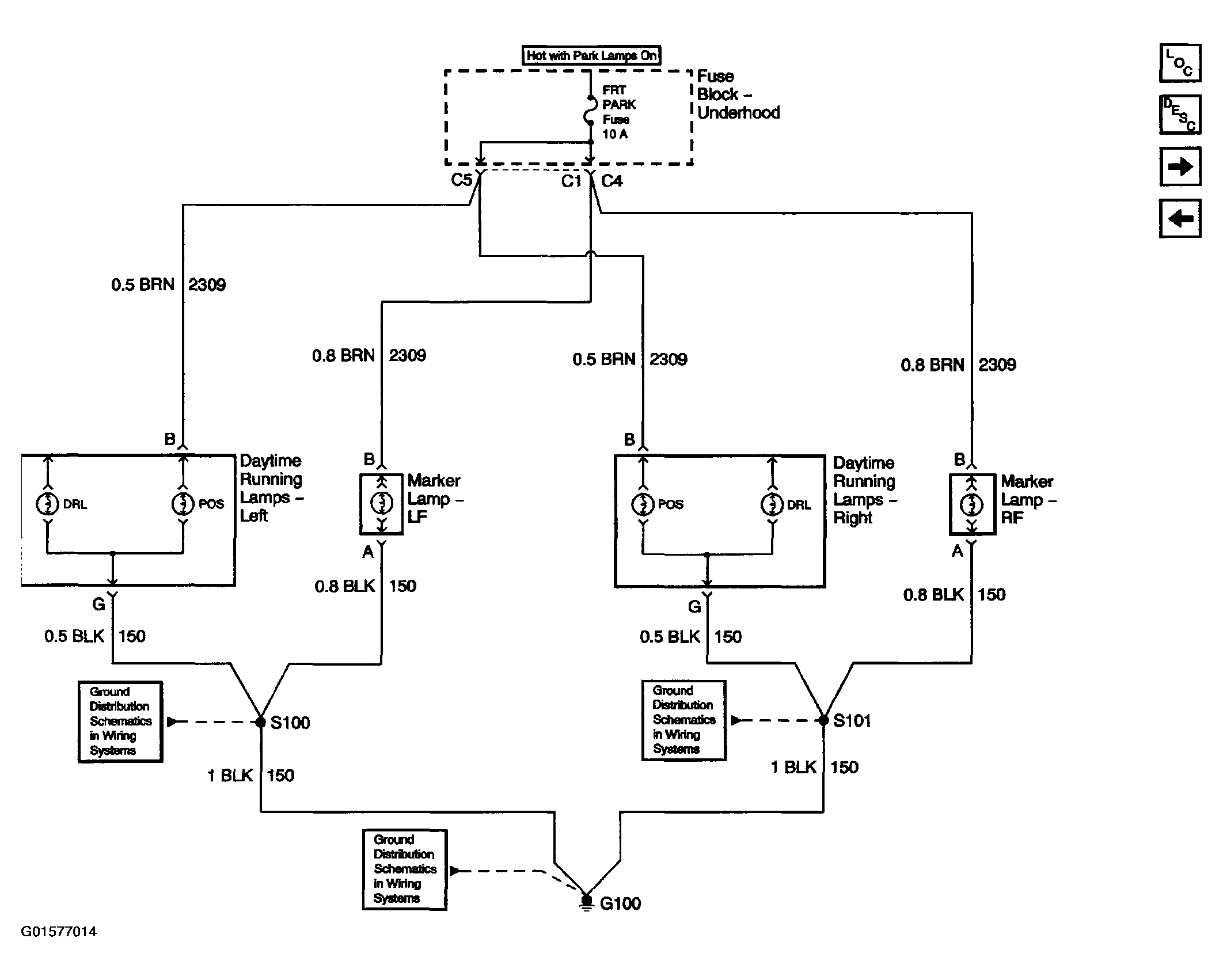

Fig 4: Exterior Lights Schematics (Front Park Lamps - Export)

G01577014

Courtesy of GENERAL MOTORS CORP.

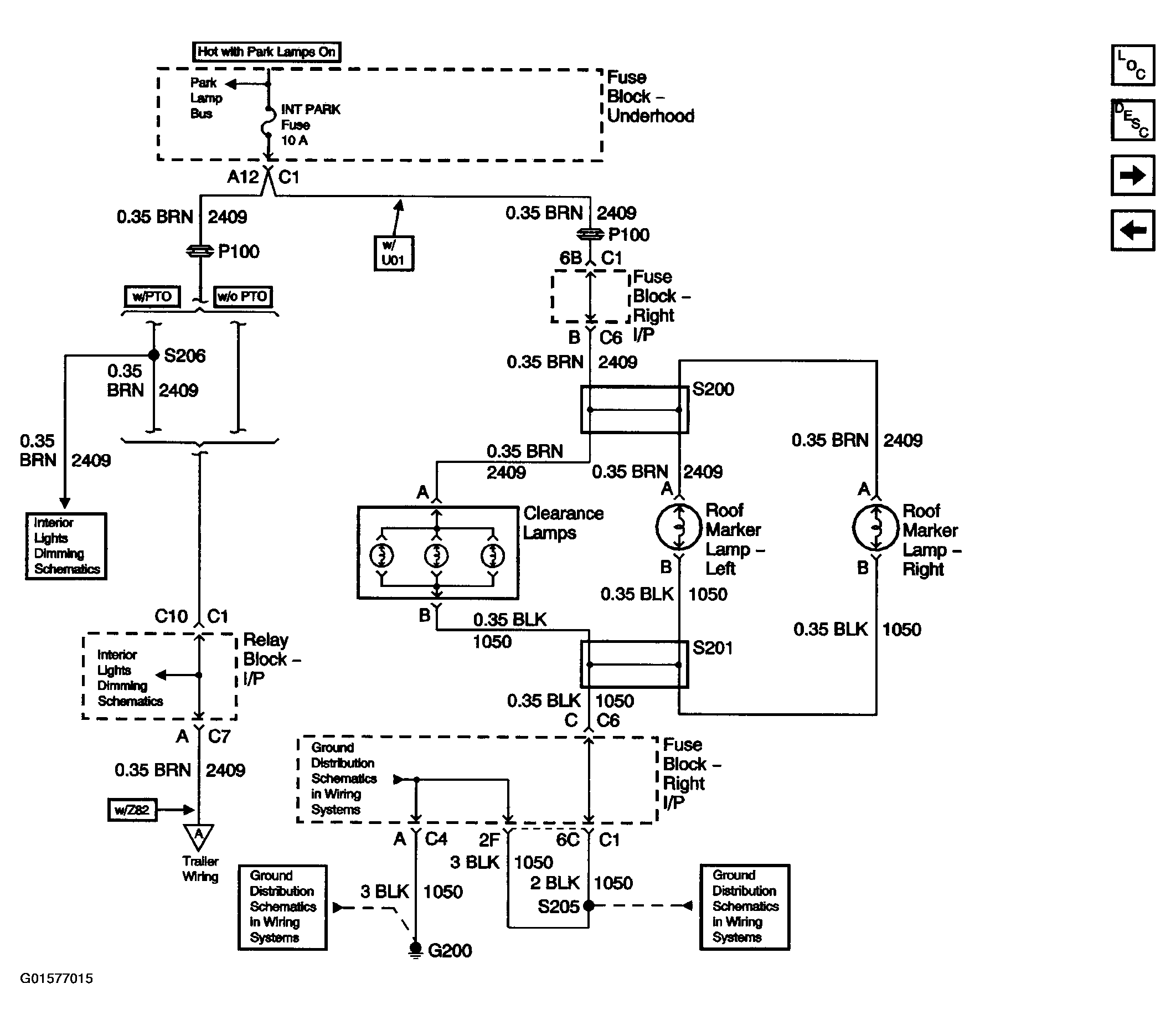

Fig 5: Exterior Lights Schematics (Interior Park)

G01577015

Courtesy of GENERAL MOTORS CORP.

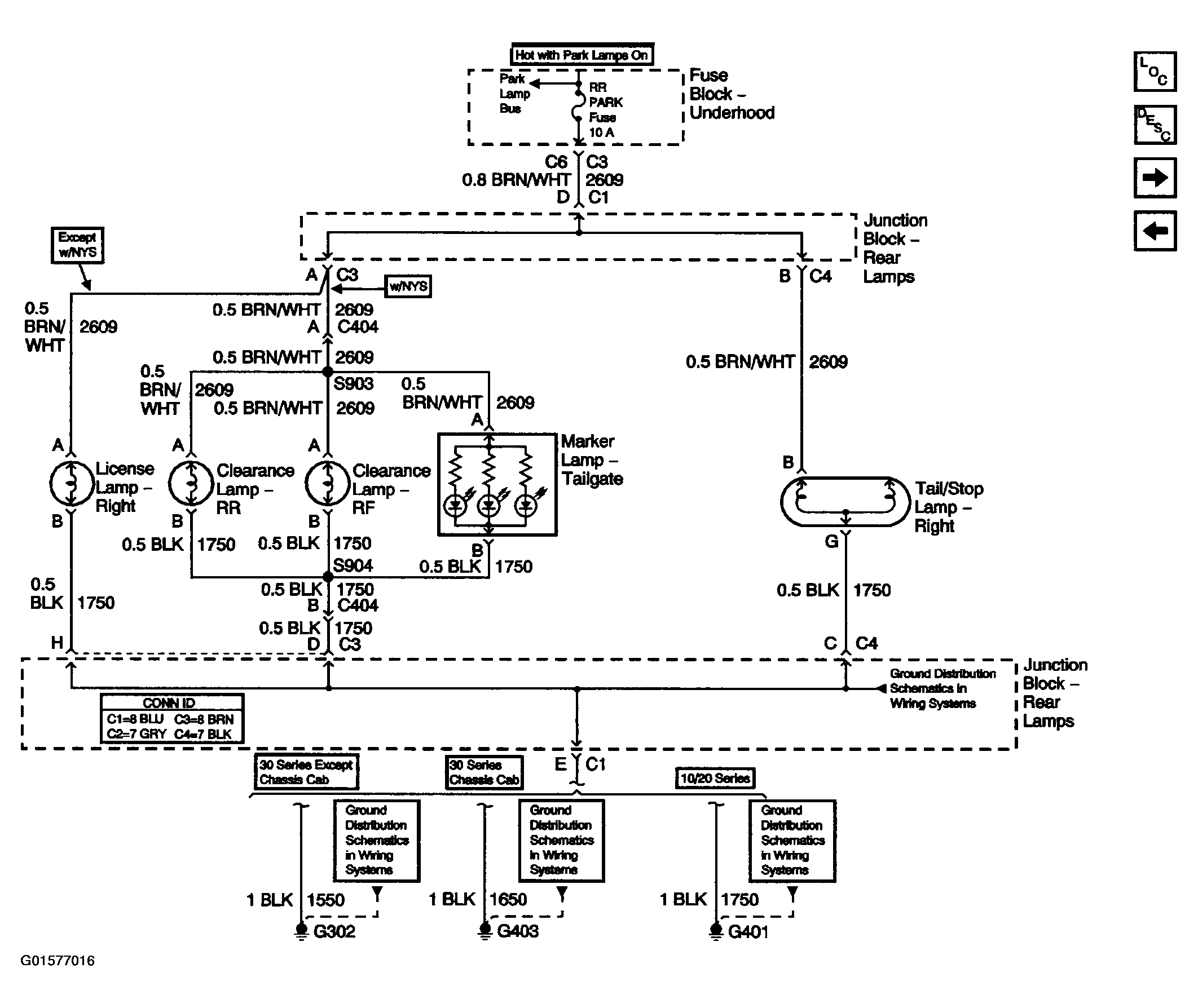

Fig 6: Exterior Lights Schematics (Right Rear Park Lamps - GMC)

G01577016

Courtesy of GENERAL MOTORS CORP.

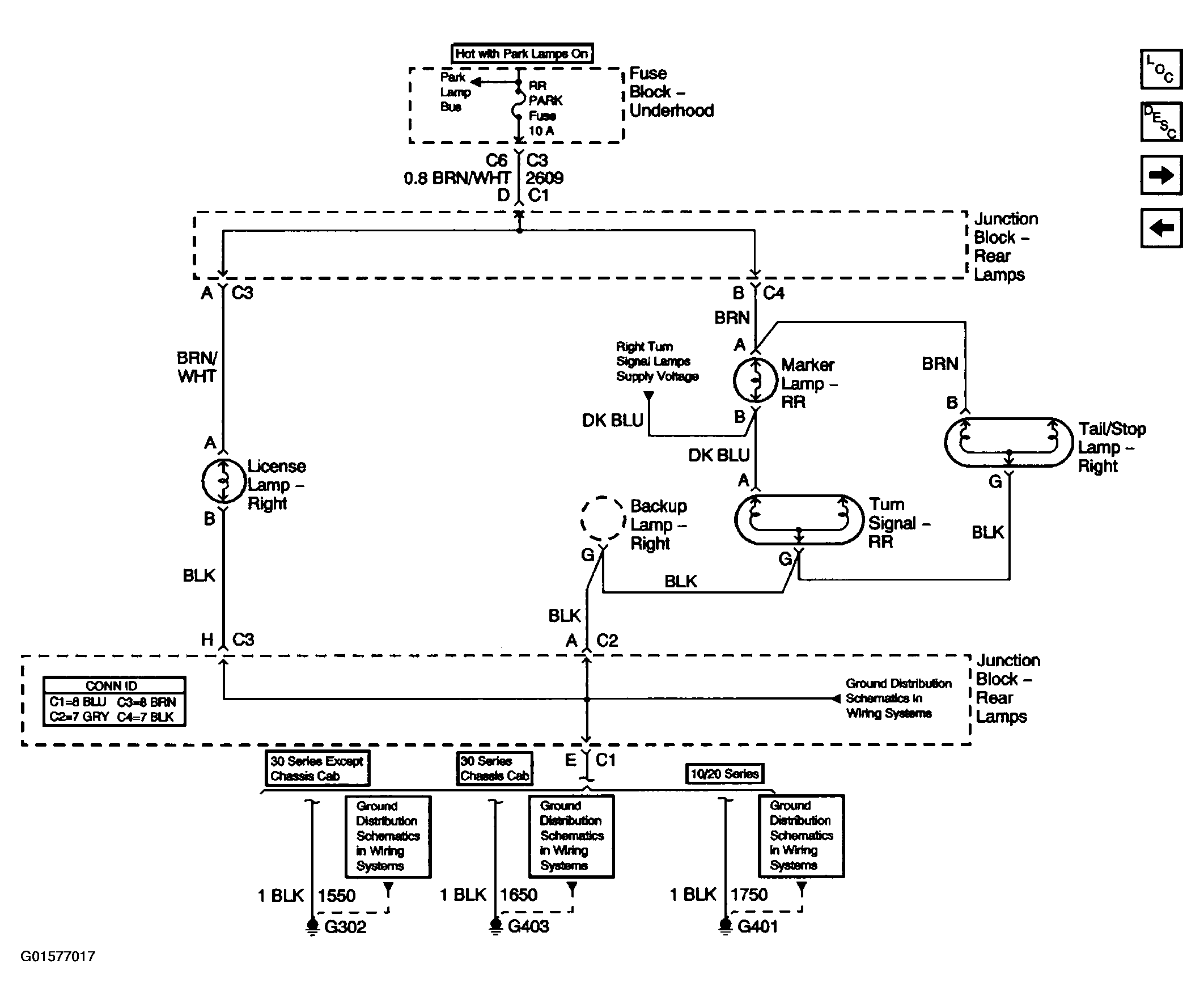

Fig 7: Exterior Lights Schematics (Right Rear Park Lamps - Chevrolet)

G01577017

Courtesy of GENERAL MOTORS CORP.

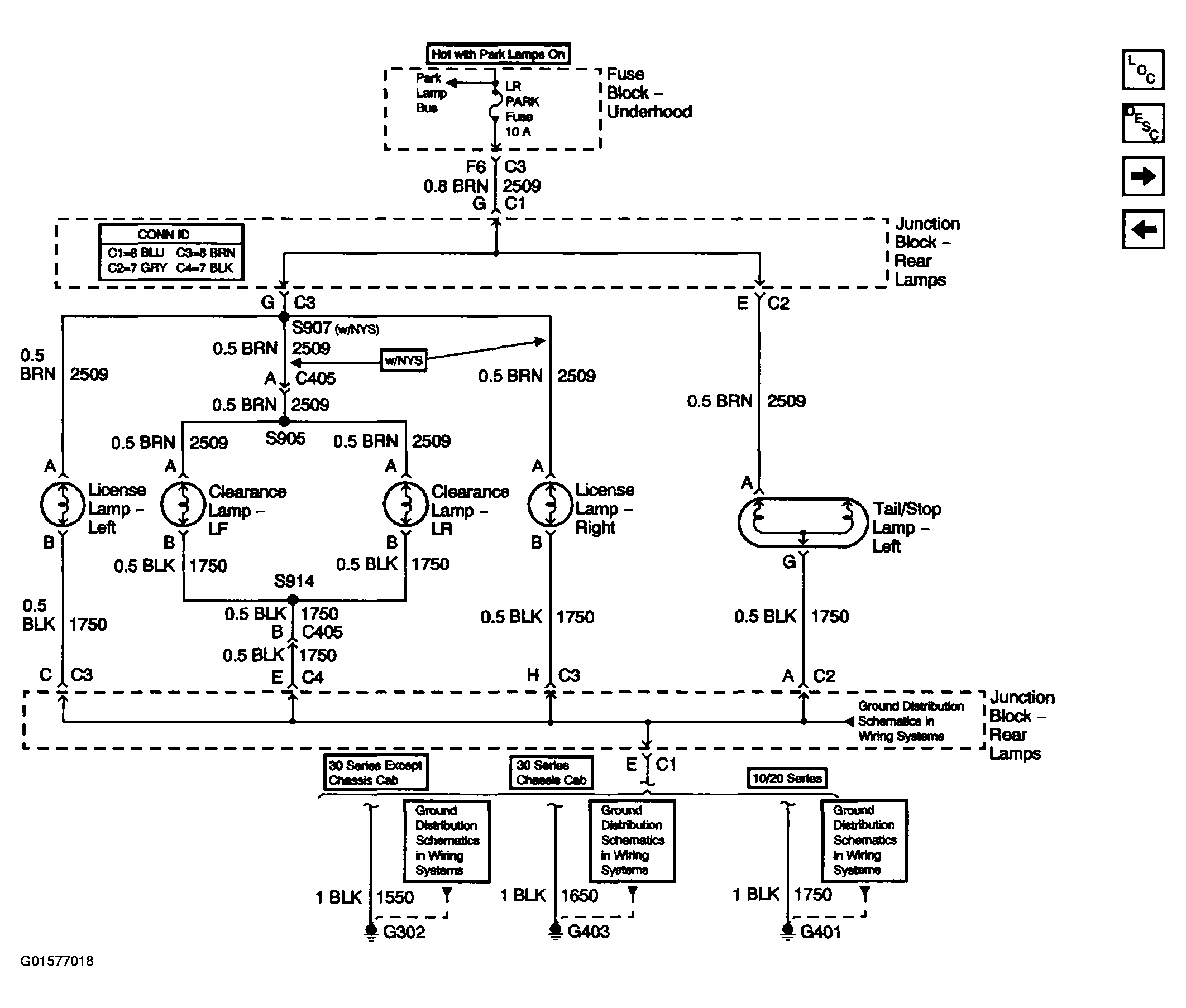

Fig 8: Exterior Lights Schematics (Left Rear Park Lamps - GMC)

G01577018

Courtesy of GENERAL MOTORS CORP.

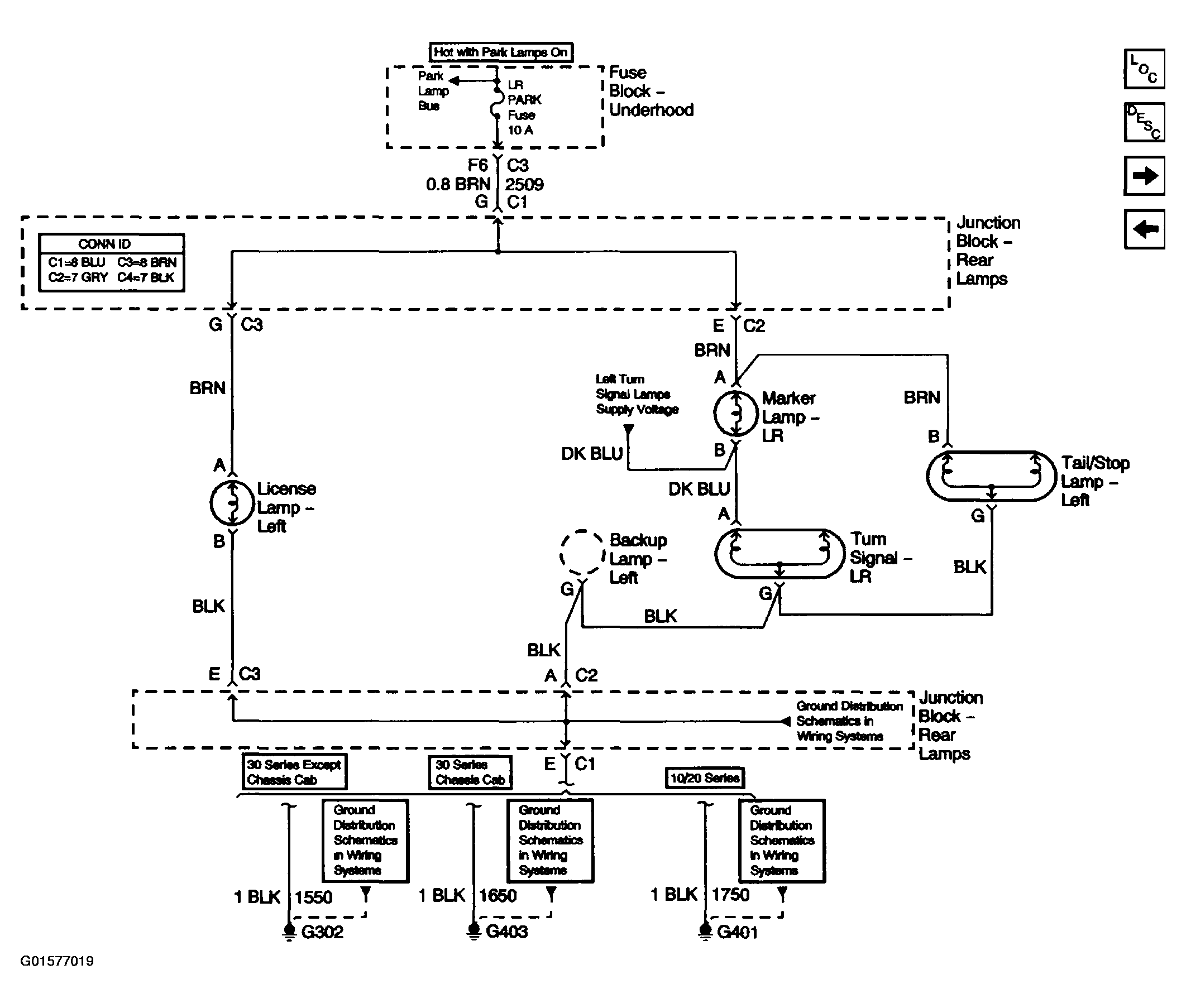

Fig 9: Exterior Lights Schematics (Left Rear Park Lamps - Chevrolet)

G01577019

Courtesy of GENERAL MOTORS CORP.

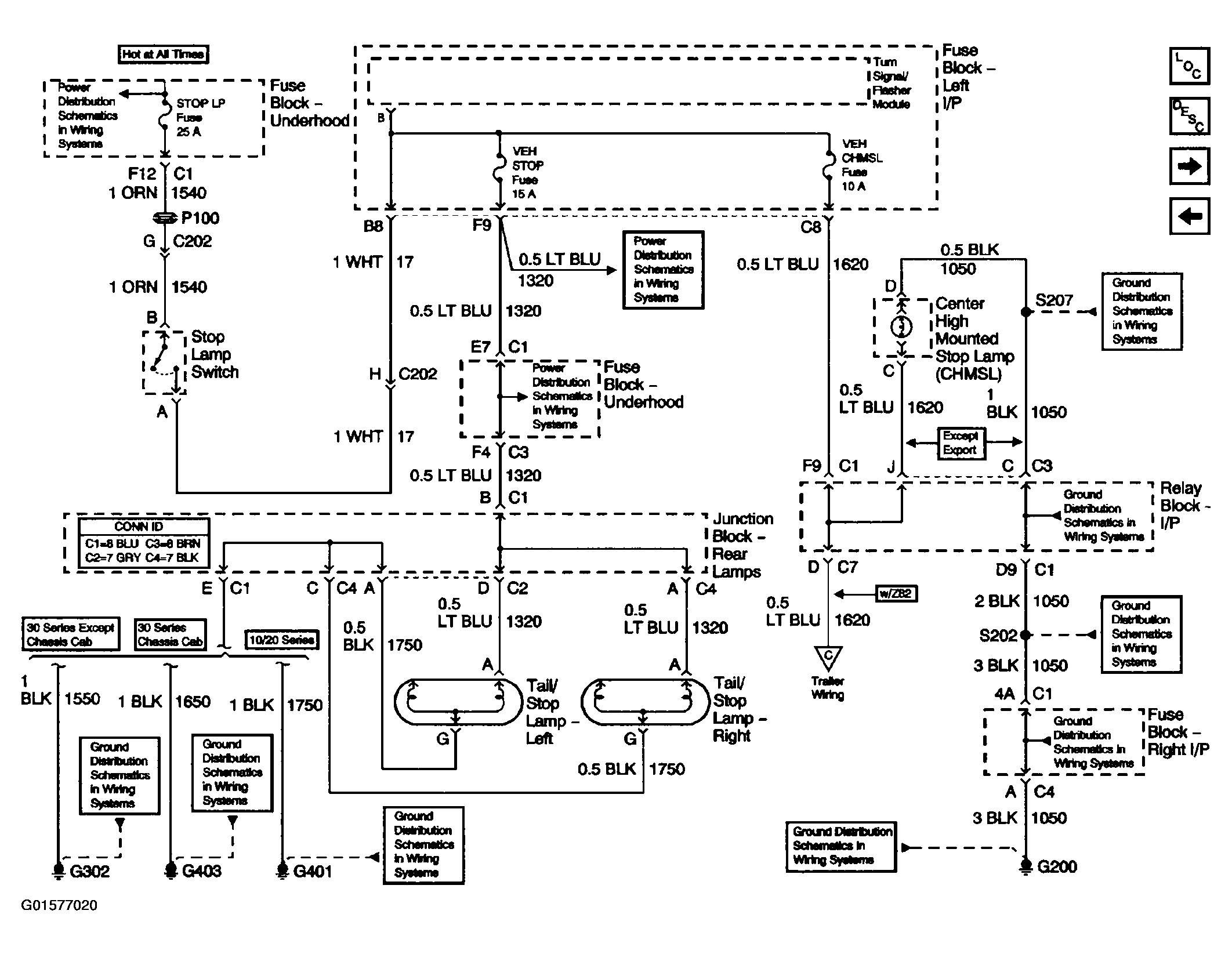

Fig 10: Exterior Lights Schematics (Stop Lamps - GMC)

G01577020

Courtesy of GENERAL MOTORS CORP.

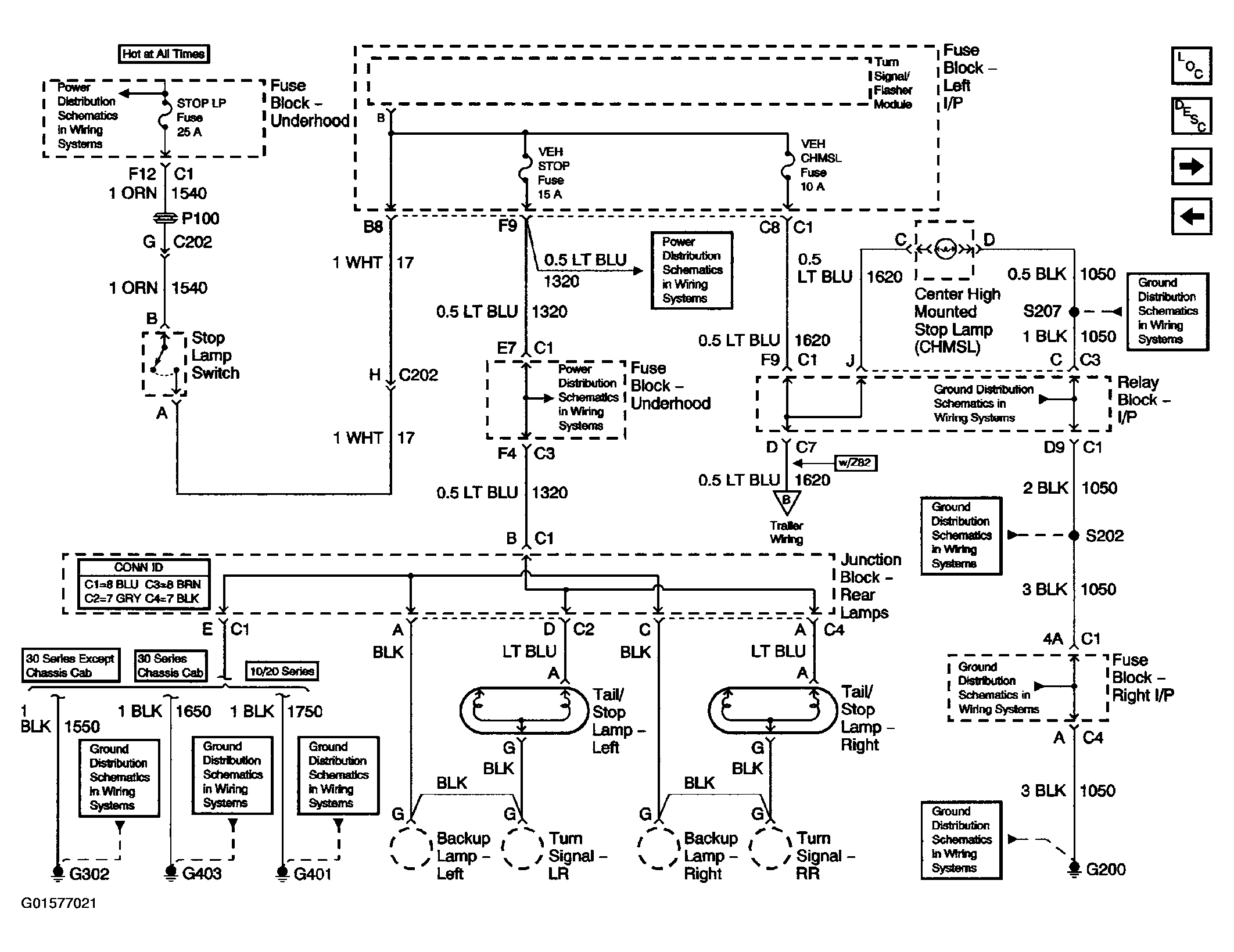

Fig 11: Exterior Lights Schematics (Stoplamps - Chevrolet)

G01577021

Courtesy of GENERAL MOTORS CORP.

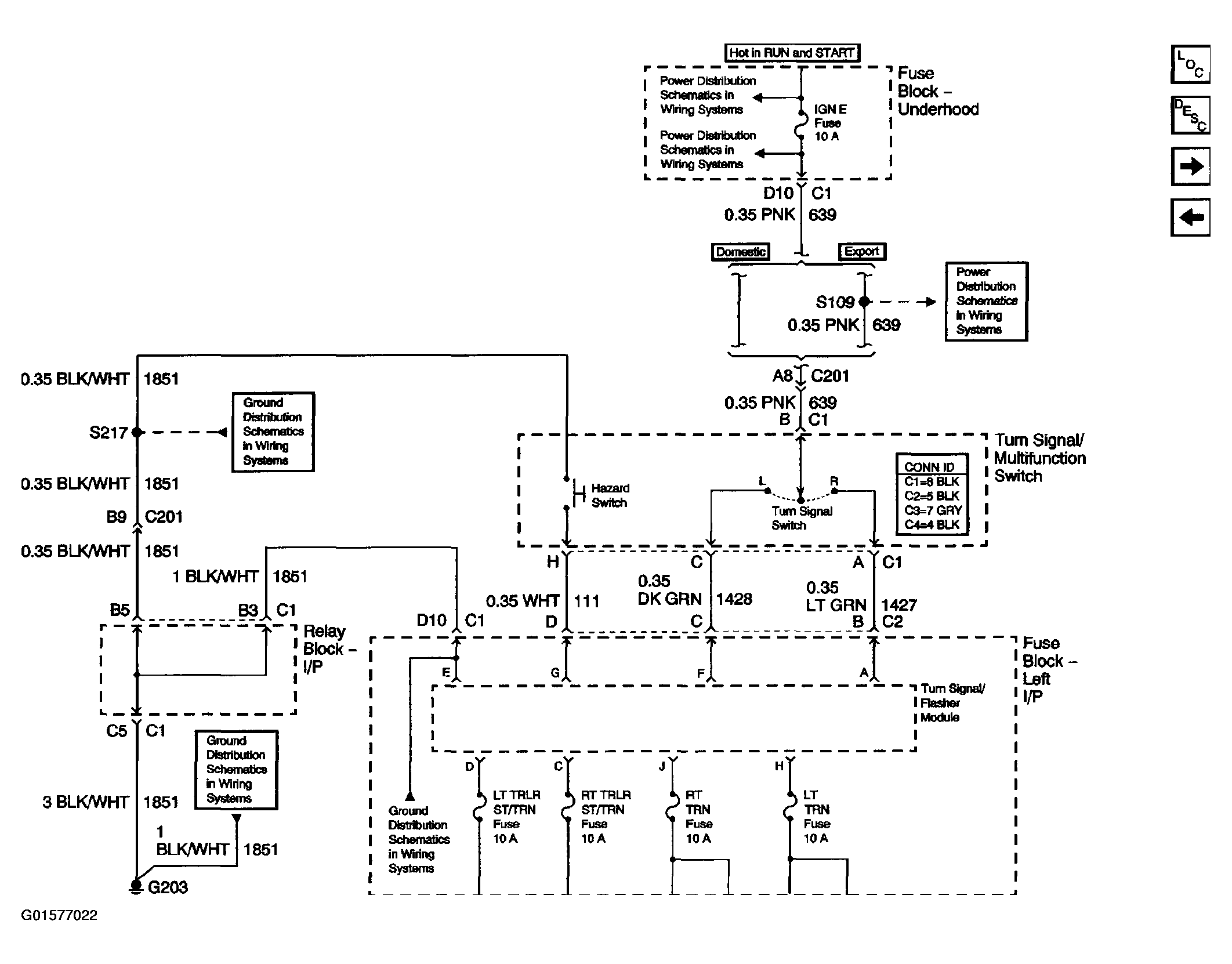

Fig 12: Exterior Lights Schematics (Turn Signal Multifunction)

G01577022

Courtesy of GENERAL MOTORS CORP.

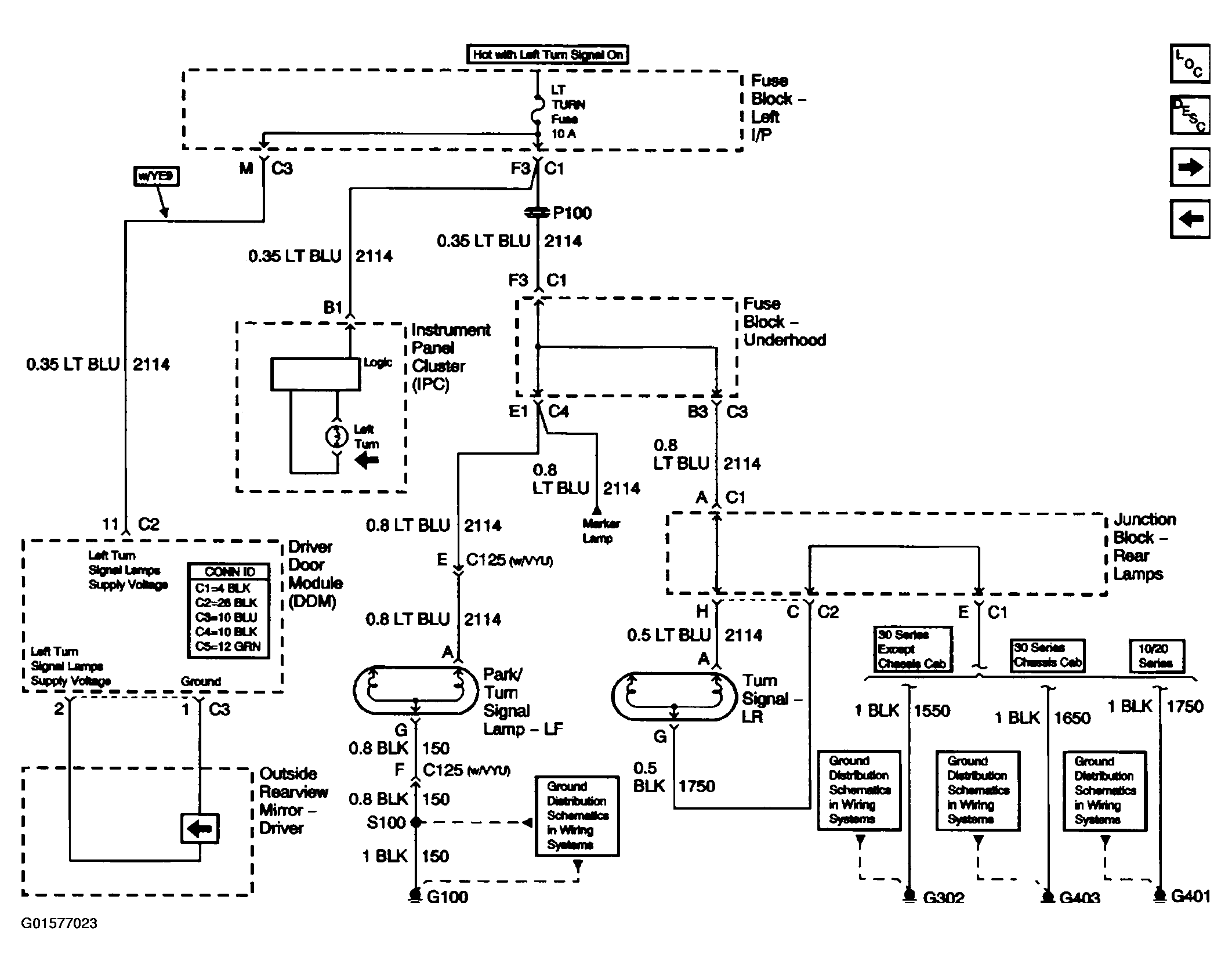

Fig 13: Exterior Lights Schematics (Left Turn Signals - Domestic - GMC)

G01577023

Courtesy of GENERAL MOTORS CORP.

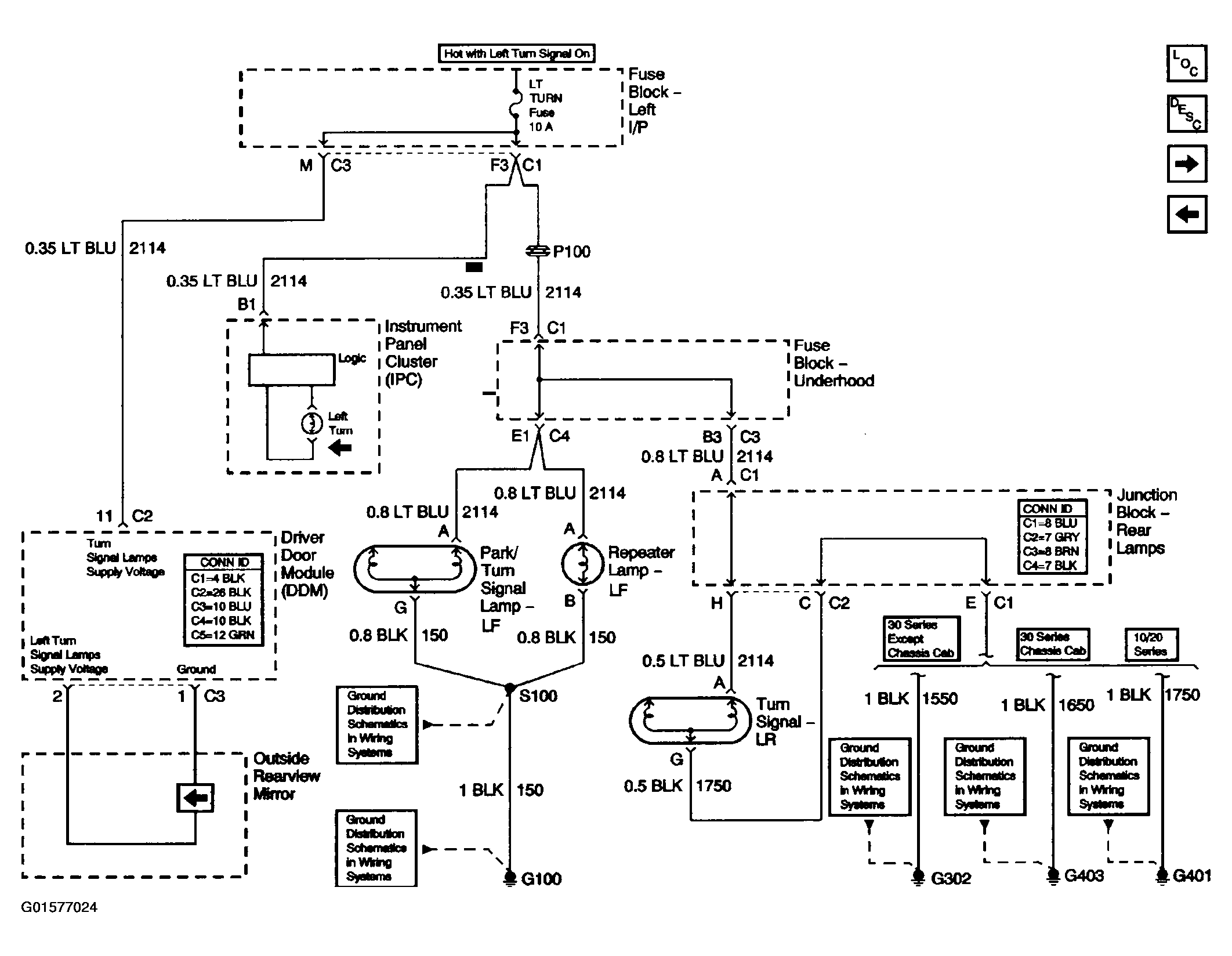

Fig 14: Exterior Lights Schematics (Left Turn Signals - Export - GMC)

G01577024

Courtesy of GENERAL MOTORS CORP.

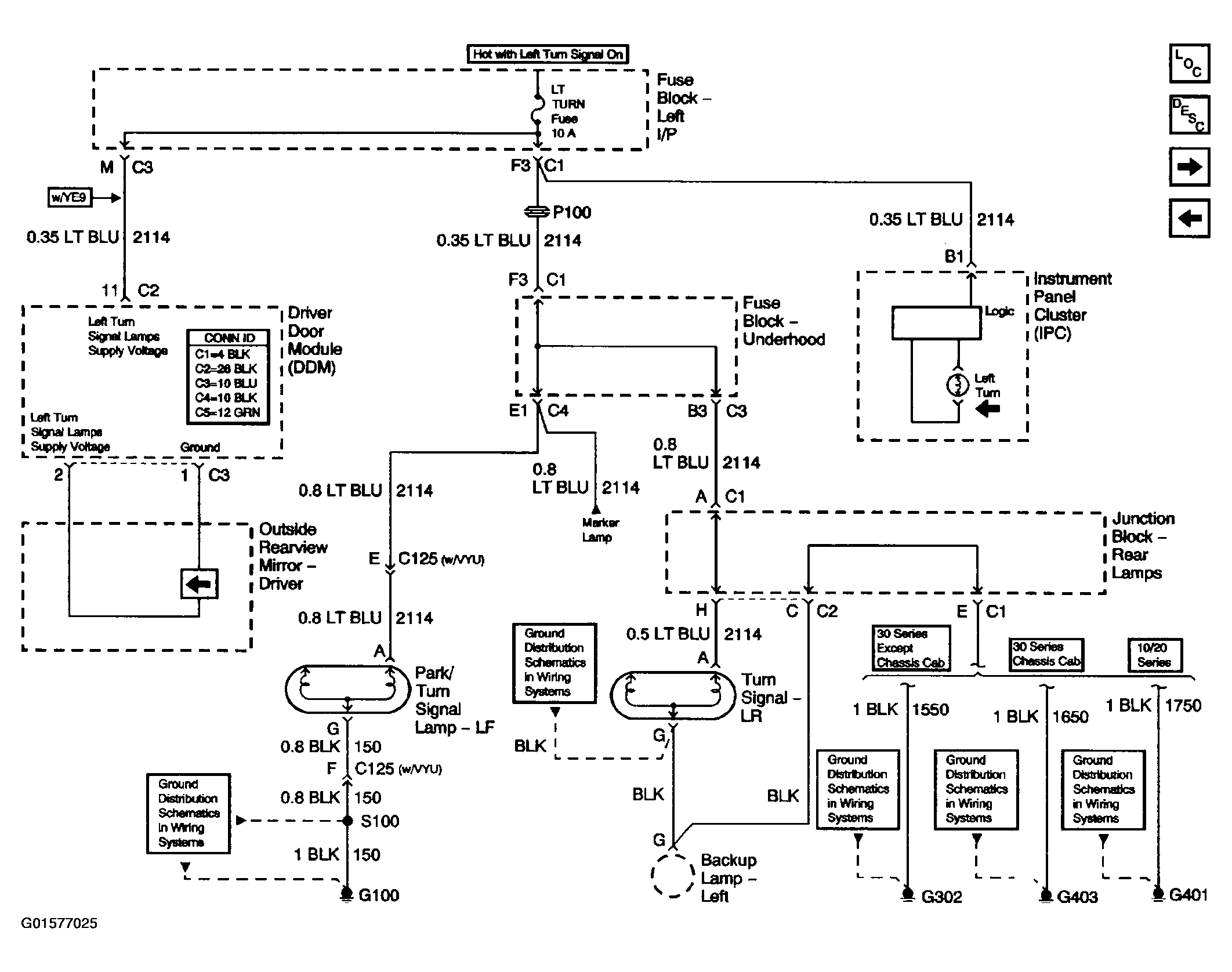

Fig 15: Exterior Lights Schematics (Left Turn Signals - Domestic - Chevrolet)

G01577025

Courtesy of GENERAL MOTORS CORP.

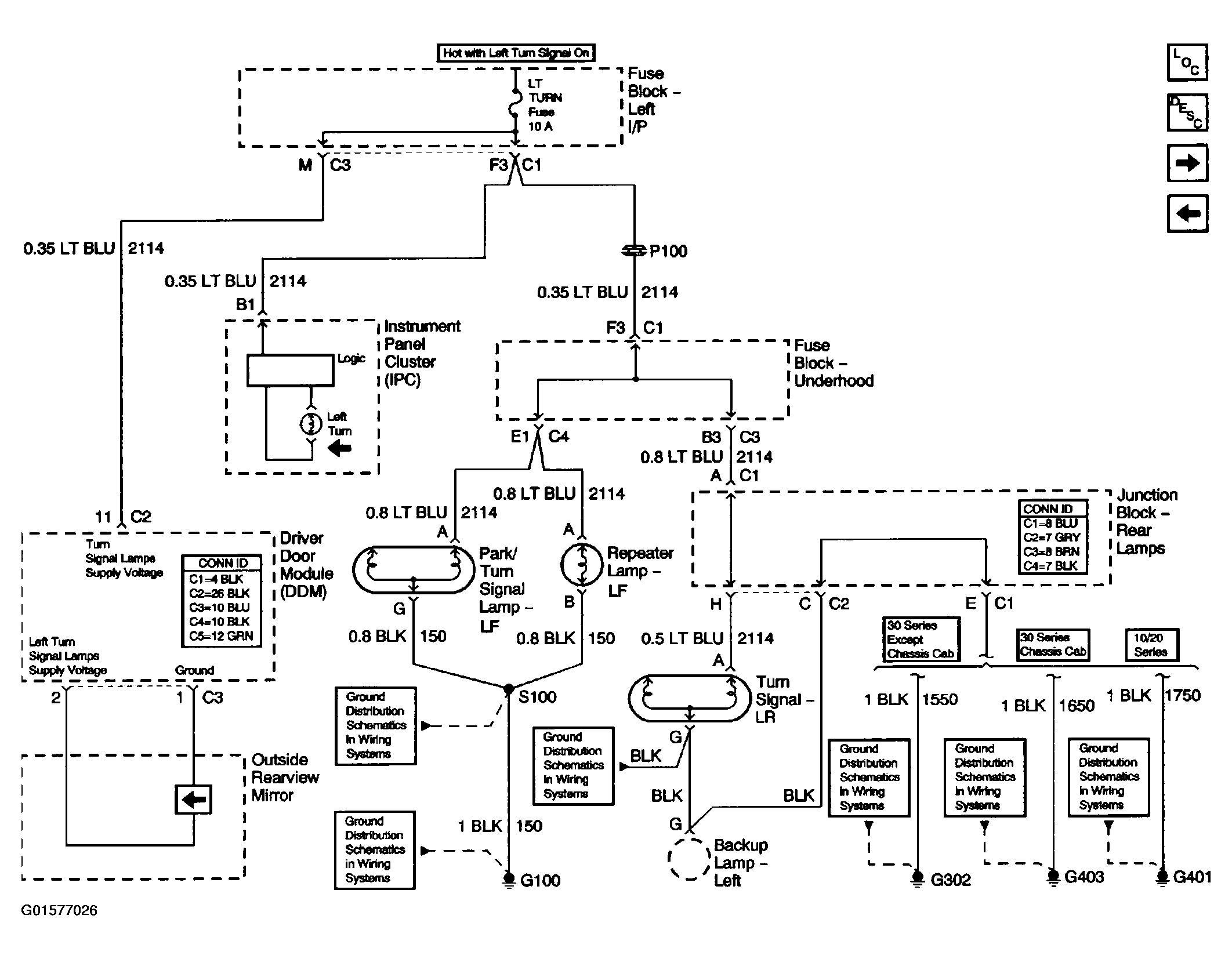

Fig 16: Exterior Lights Schematics (Left Turn Signals - Export - Chevrolet)

G01577026

Courtesy of GENERAL MOTORS CORP.

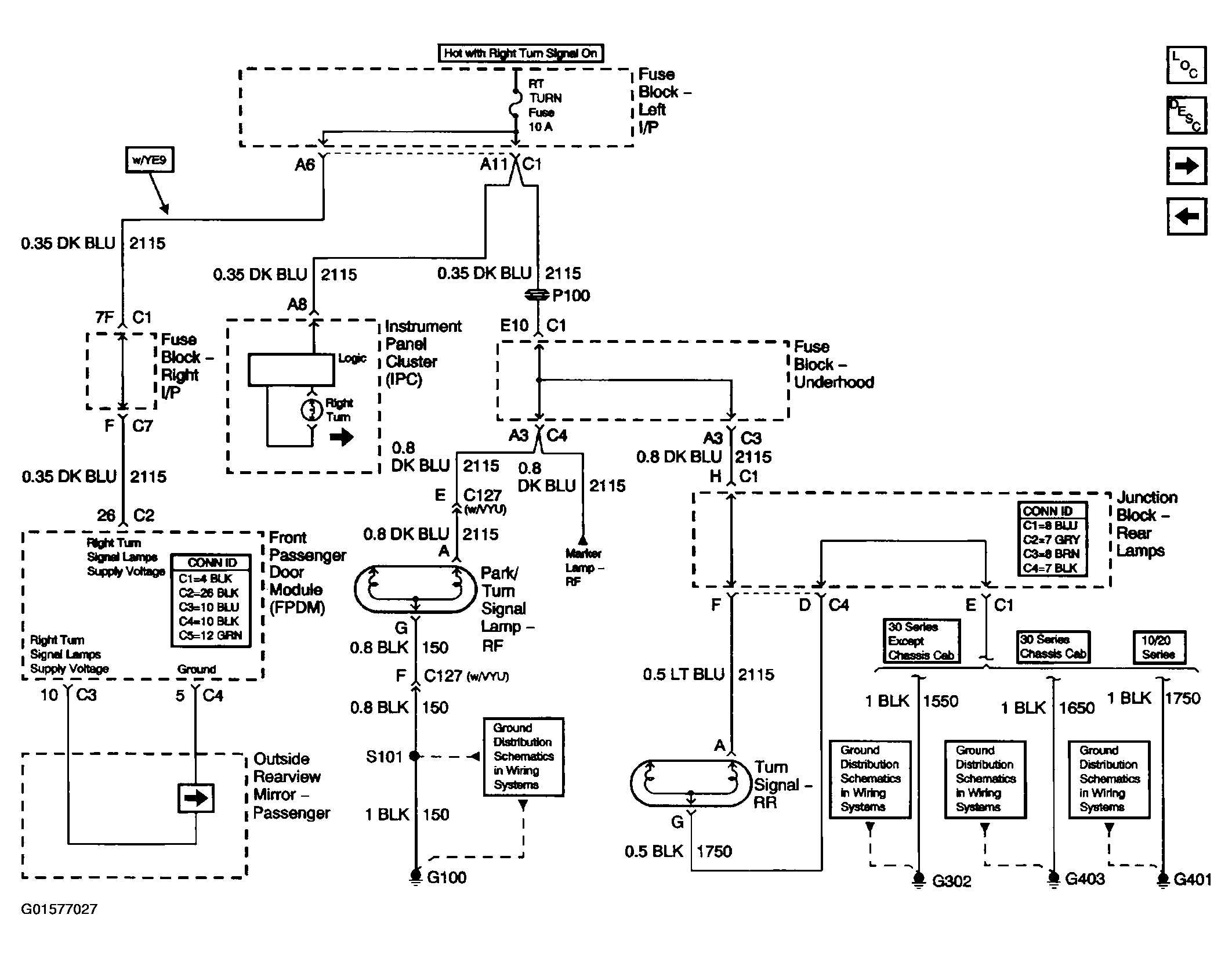

Fig 17: Exterior Lights Schematics (Right Turn Signals - Domestic - GMC)

G01577027

Courtesy of GENERAL MOTORS CORP.

Fig 18: Exterior Lights Schematics (Right Turn Signals - Export - GMC)

G01577028

Courtesy of GENERAL MOTORS CORP.

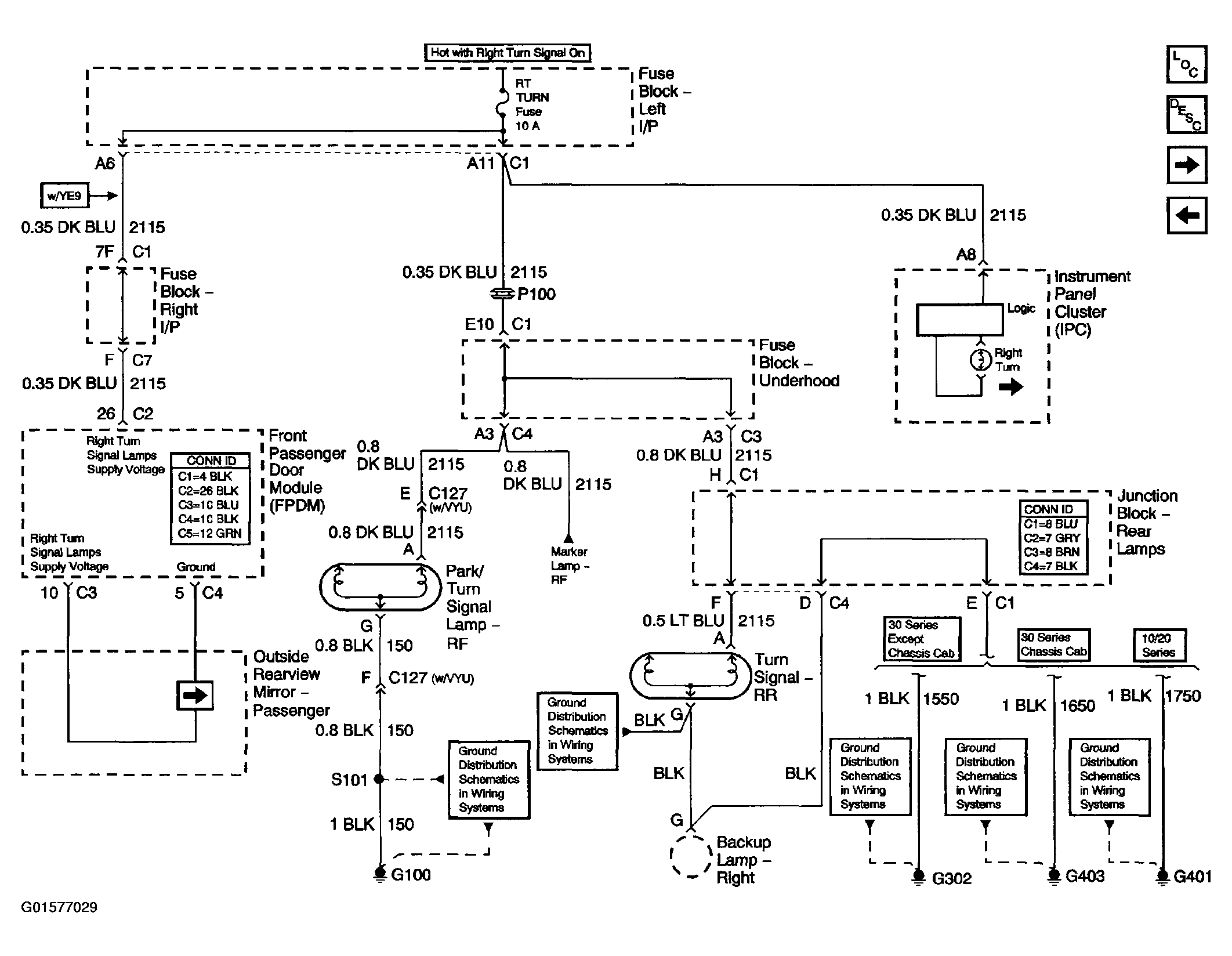

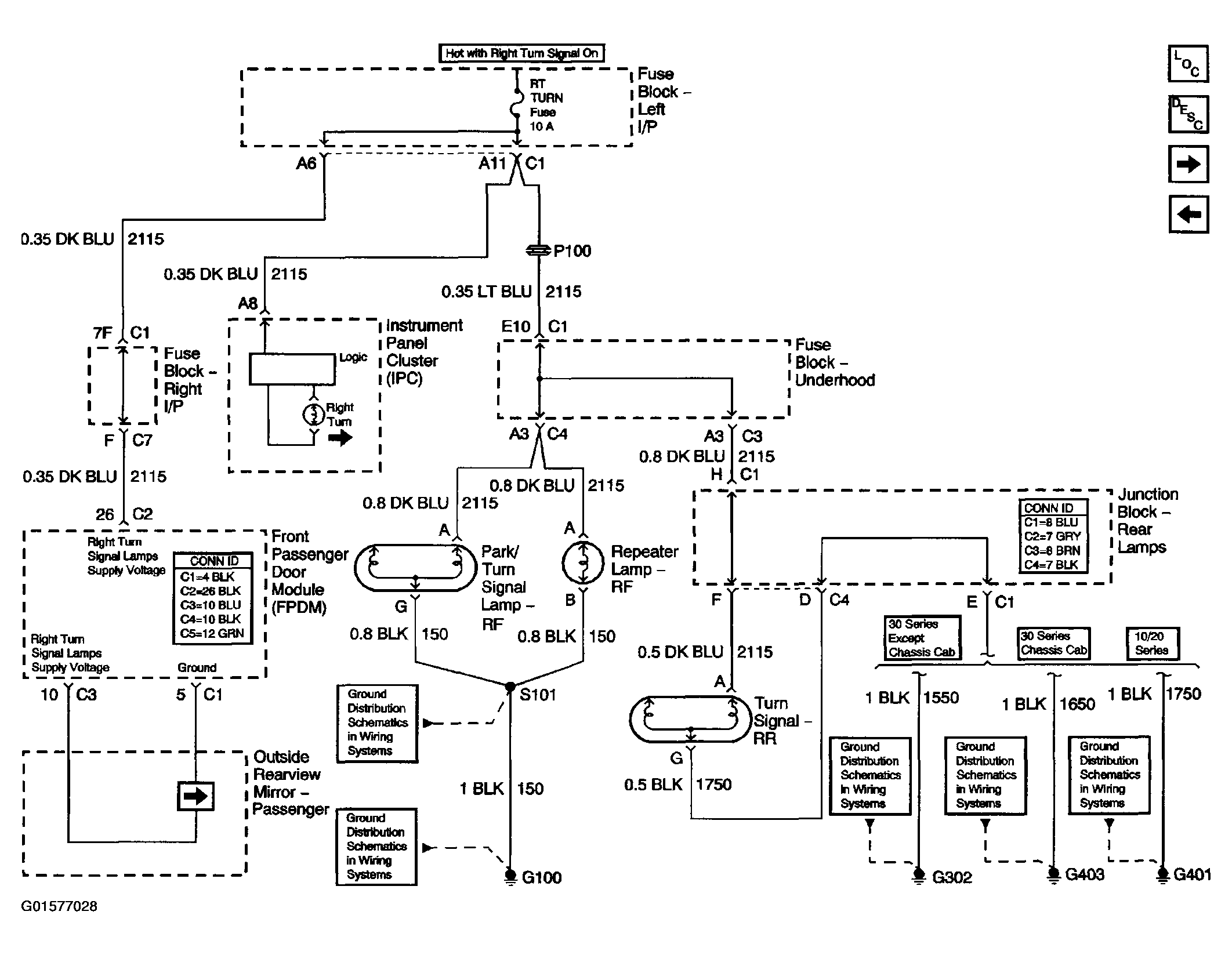

Fig 19: Exterior Lights Schematics (Right Turn Signals - Domestic - Chevrolet)

G01577029

Courtesy of GENERAL MOTORS CORP.

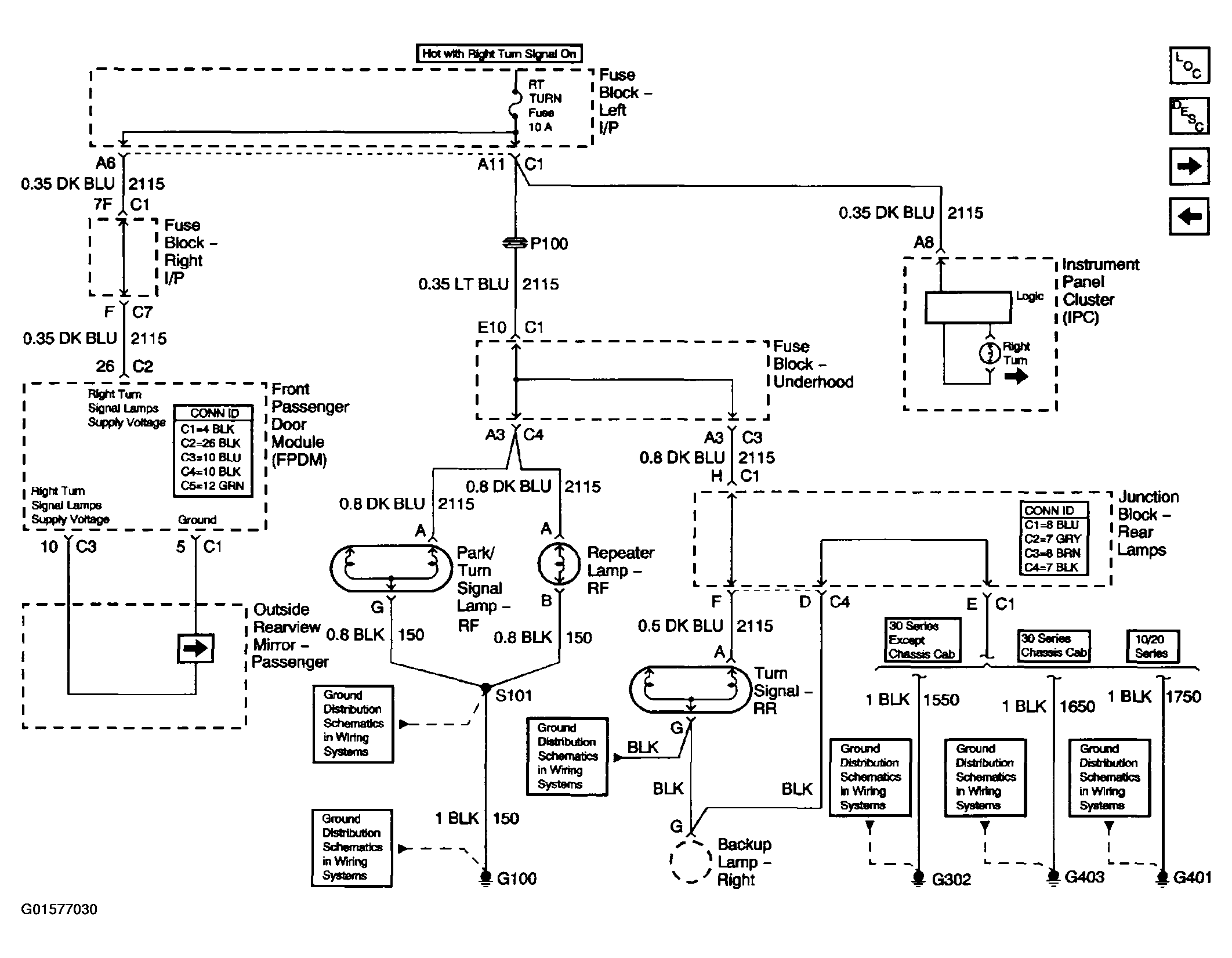

Fig 20: Exterior Lights Schematics (Right Turn Signals - Export - Chevrolet)

G01577030

Courtesy of GENERAL MOTORS CORP.

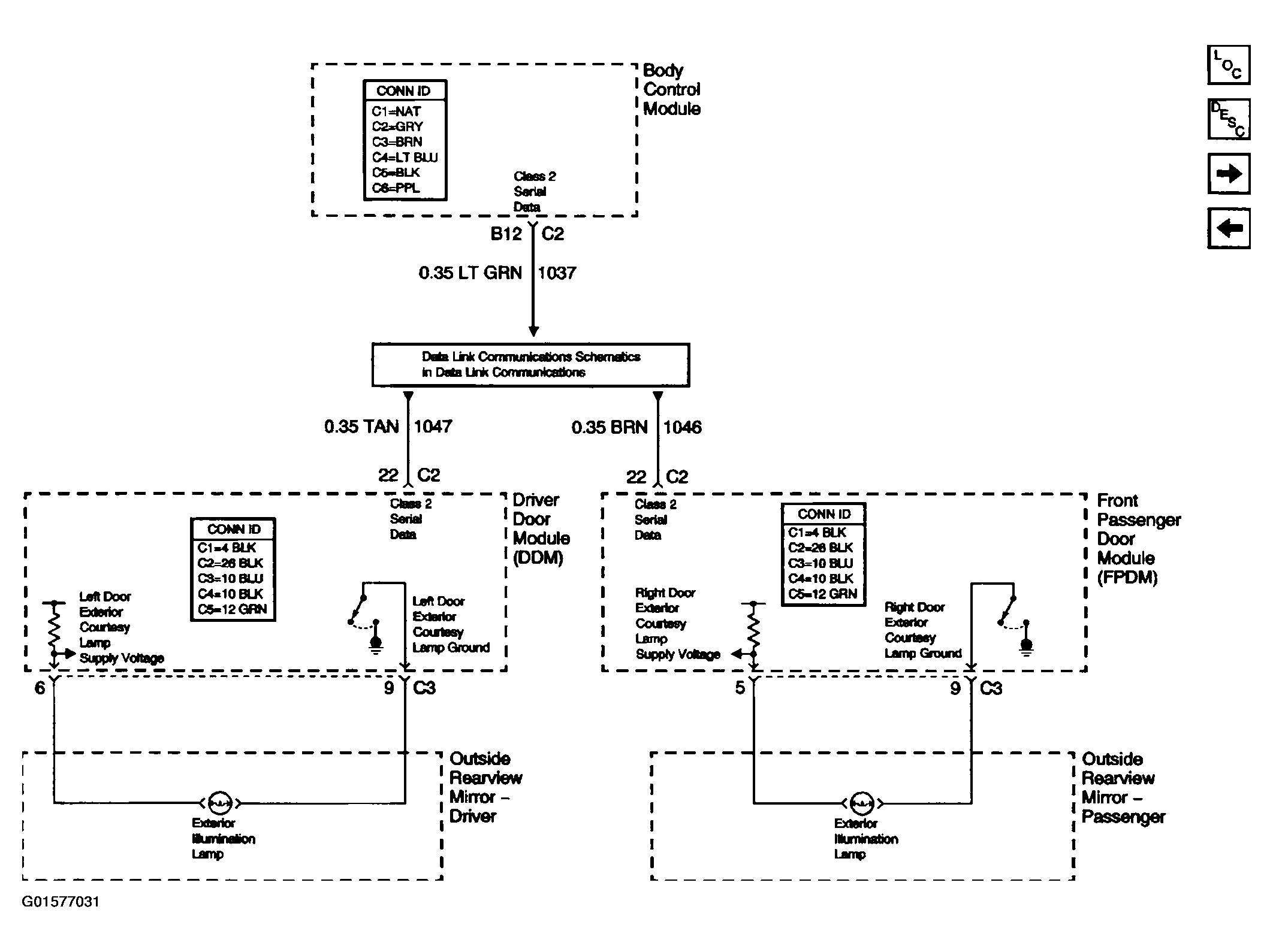

Fig 21: Exterior Lights Schematics (Exterior Illumination Lamps)

G01577031

Courtesy of GENERAL MOTORS CORP.

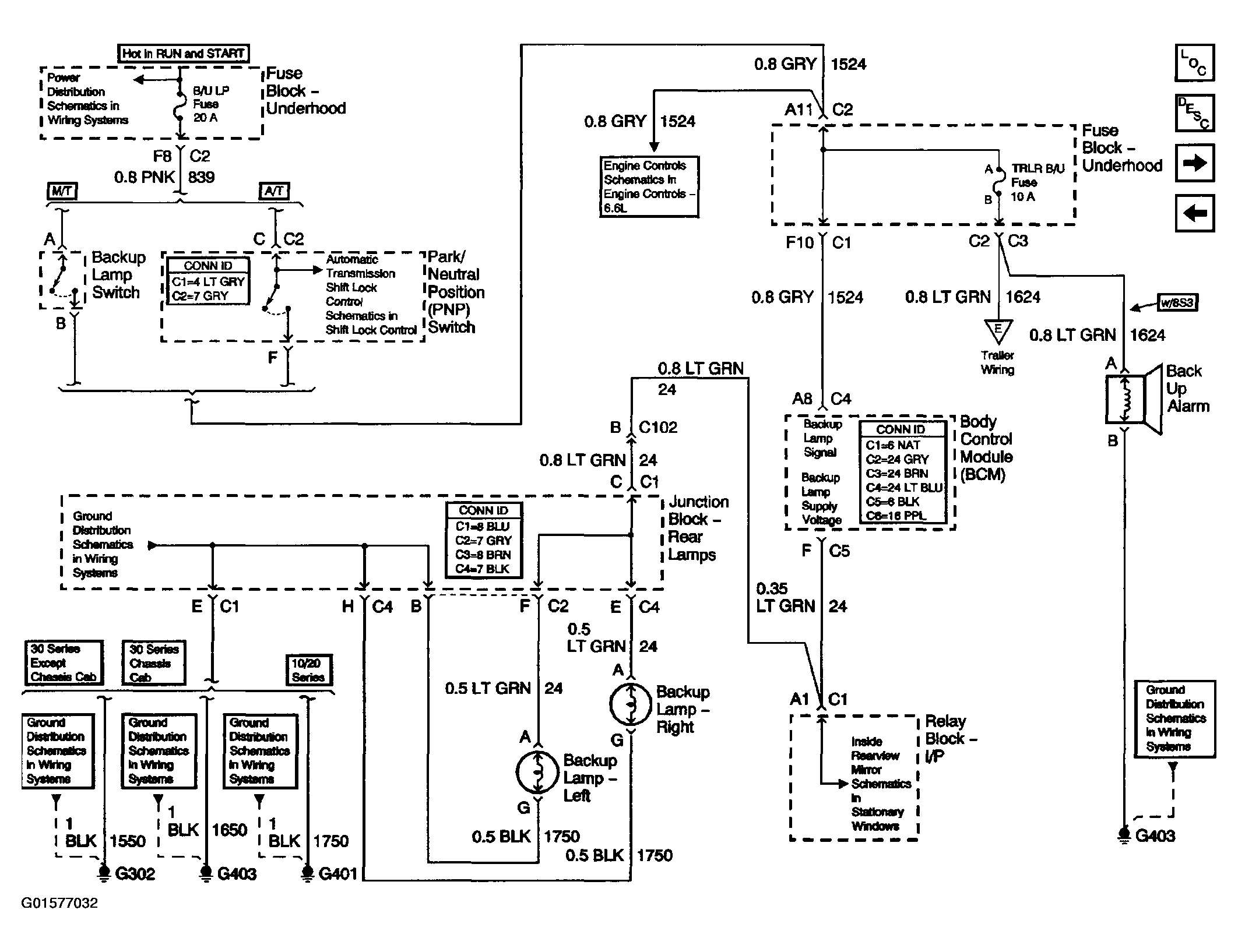

Fig 22: Exterior Lights Schematics (Backup Lamps - GMC)

G01577032

Courtesy of GENERAL MOTORS CORP.

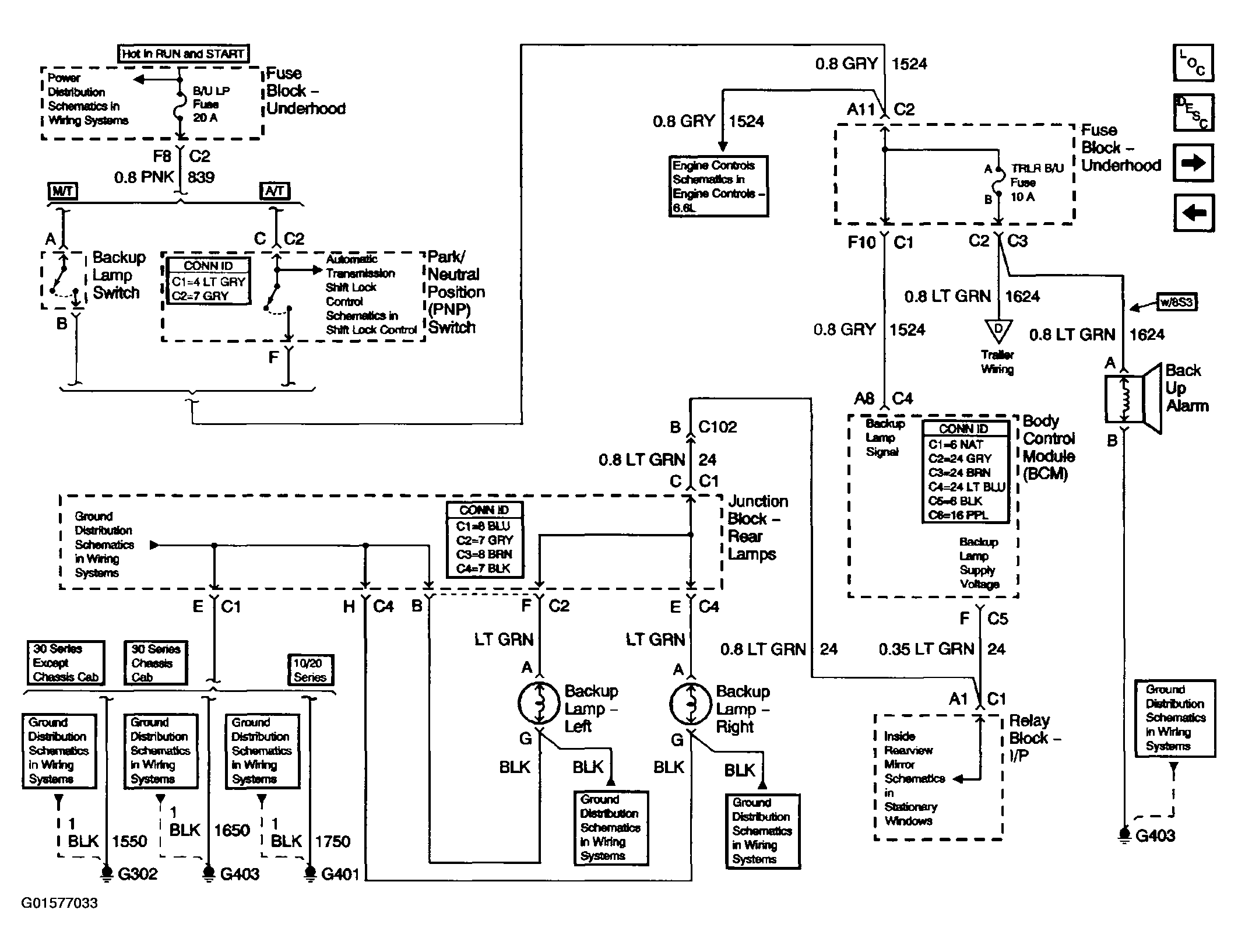

Fig 23: Exterior Lights Schematics (Backup Lamps - Chevrolet)

G01577033

Courtesy of GENERAL MOTORS CORP.

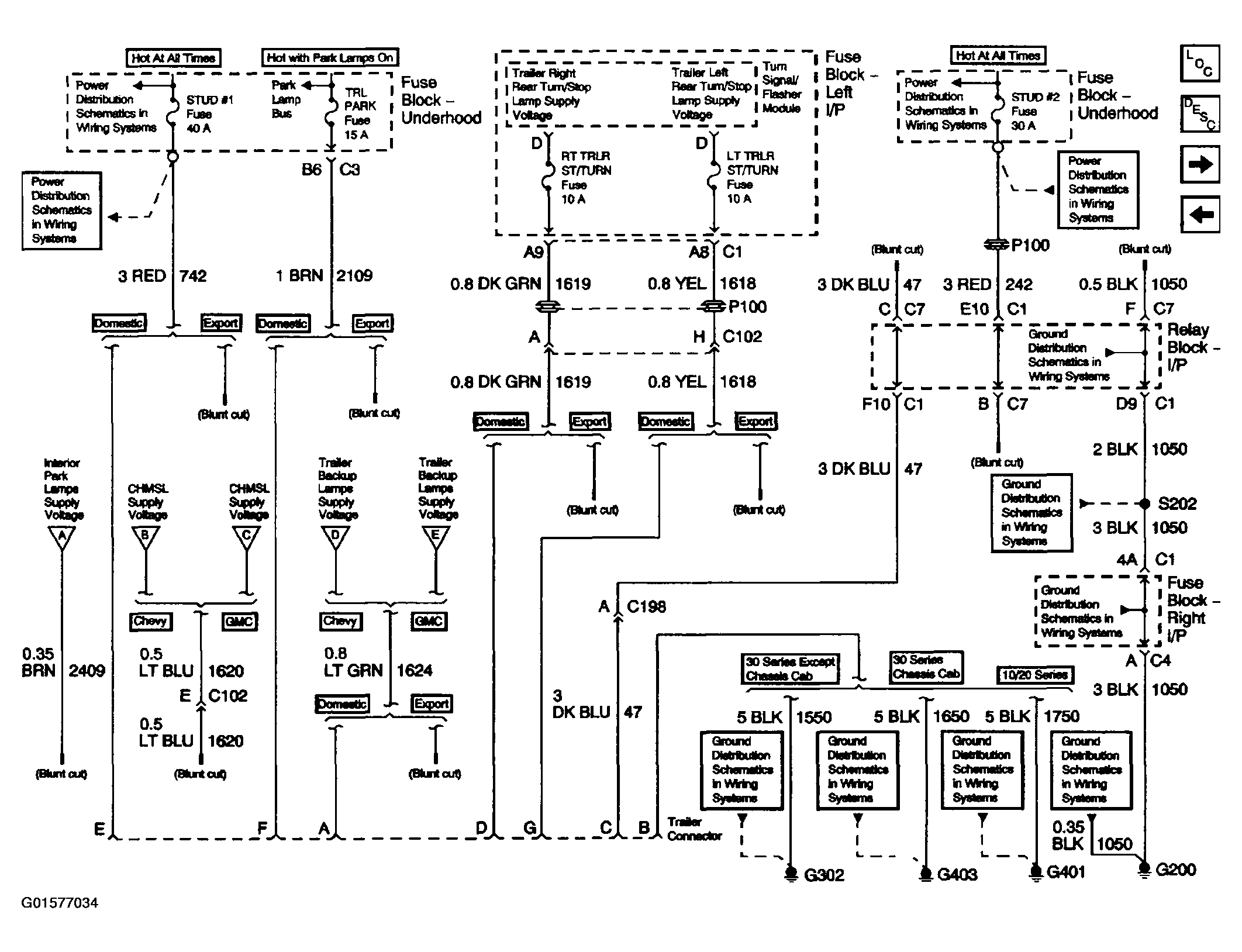

Fig 24: Exterior Lights Schematics (Trailer Wiring/Connector)

G01577034

Courtesy of GENERAL MOTORS CORP.

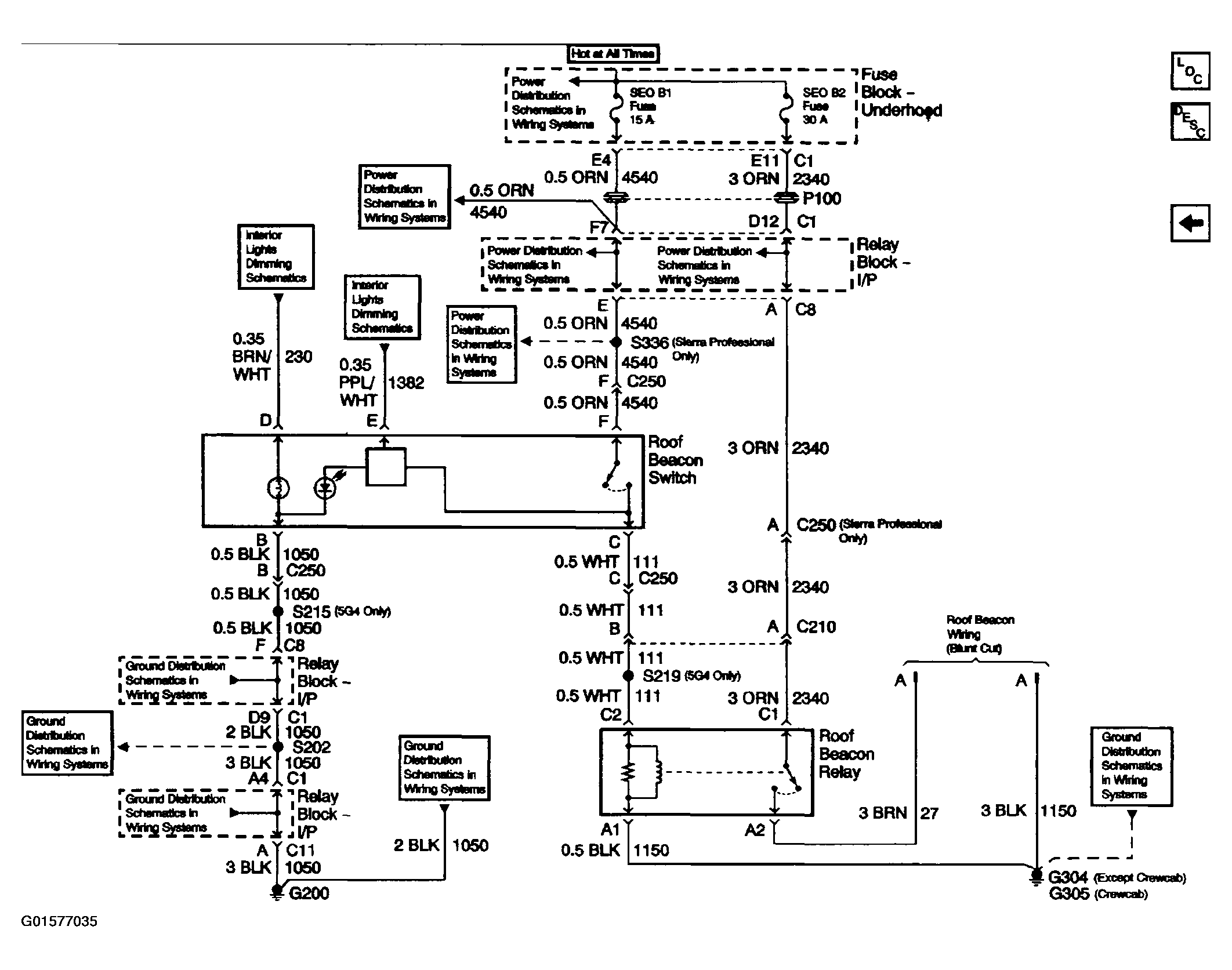

Fig 25: Exterior Lights Schematics (Roof Beacon)

G01577035

Courtesy of GENERAL MOTORS CORP.
