Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the electrical connector to the park/turn signal lamp assembly.
  2. Install the lamp assembly.
  3. Install the headlamp. Refer to Headlamp Assembly Or Headlamp Bulb Replacement (Old Style)   or Headlamp Assembly Or Headlamp Bulb Replacement (New Style Gmc)   or Headlamp Assembly Or Headlamp Bulb Replacement (New Style Chevy)   .

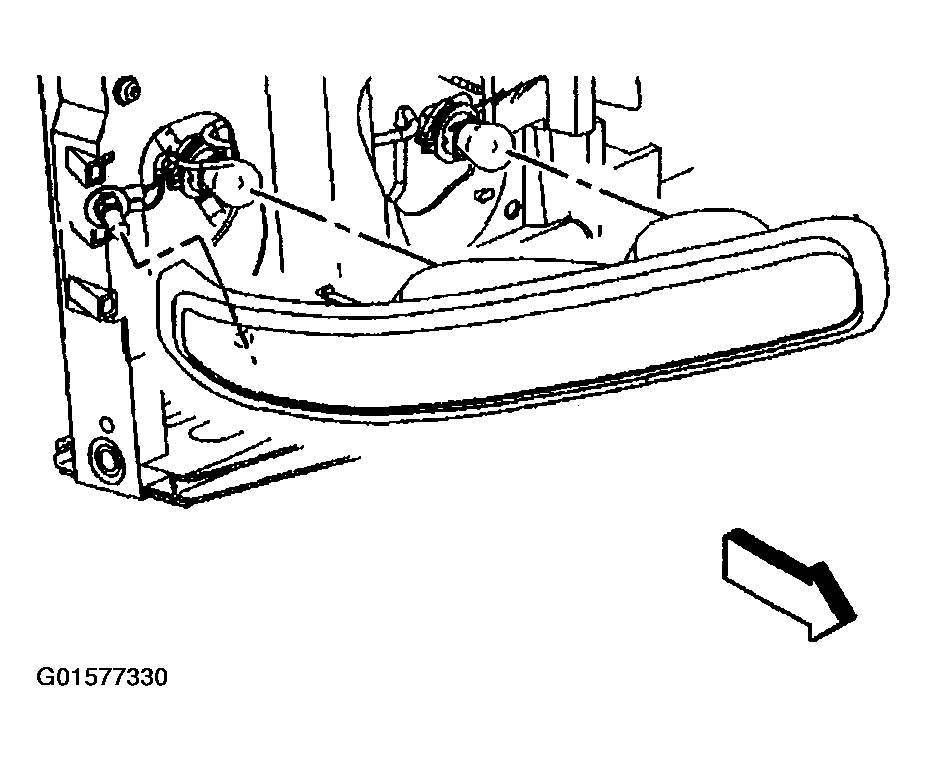

    Fig 1: Installing Park/Turn Signal Lamp (Old Style)
    G01577330Courtesy of GENERAL MOTORS CORP.
