Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure the headlamp switch is in the OFF position.
  2. Remove the headlamp. Refer to Headlamp Assembly Or Headlamp Bulb Replacement (Old Style)   or Headlamp Assembly Or Headlamp Bulb Replacement (New Style GMC)   or Headlamp Assembly Or Headlamp Bulb Replacement (New Style Chevy)   .
  3. Remove the park/turn signal lamp assembly by pushing on the inboard retainer clip (1).
  4. Disconnect the electrical connector from the assembly.
  5. Remove the lamp assembly from the vehicle.

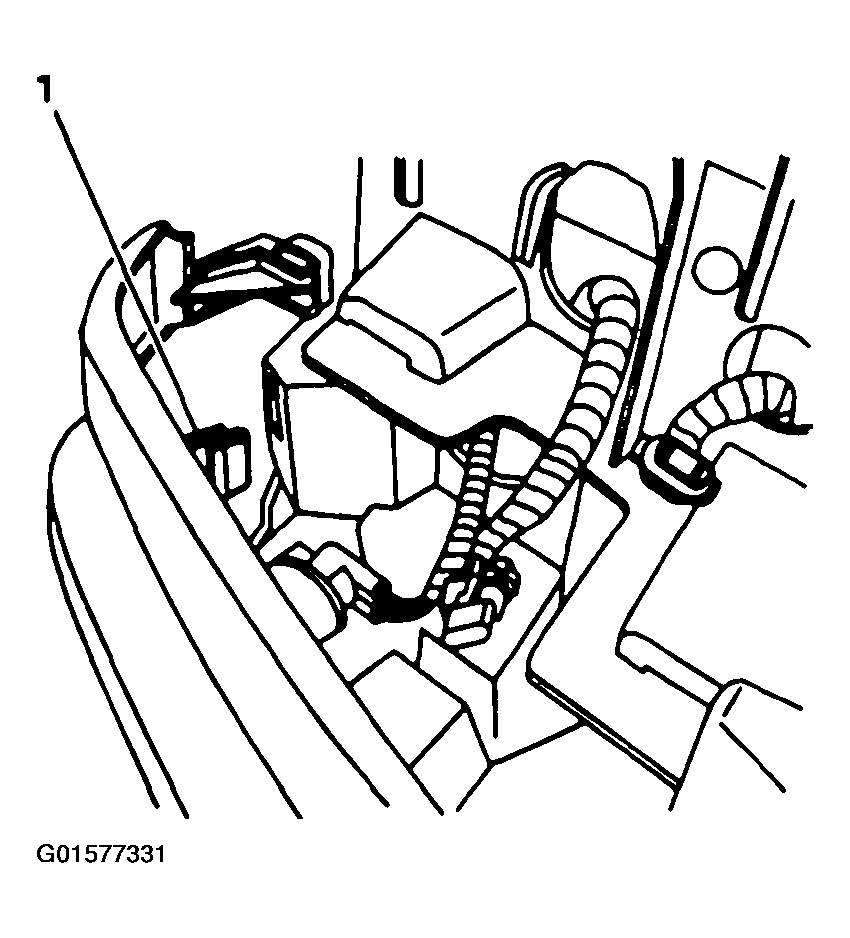

    Fig 1: Locating Park/Turn Signal Lamp Inboard Retainer Clip (New Style)
    G01577331Courtesy of GENERAL MOTORS CORP.
