Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the electrical connector to the park/turn signal lamp assembly.
Align the lamp assembly to the vehicle.
Secure the retaining clip by pushing inward on the lamp assembly.

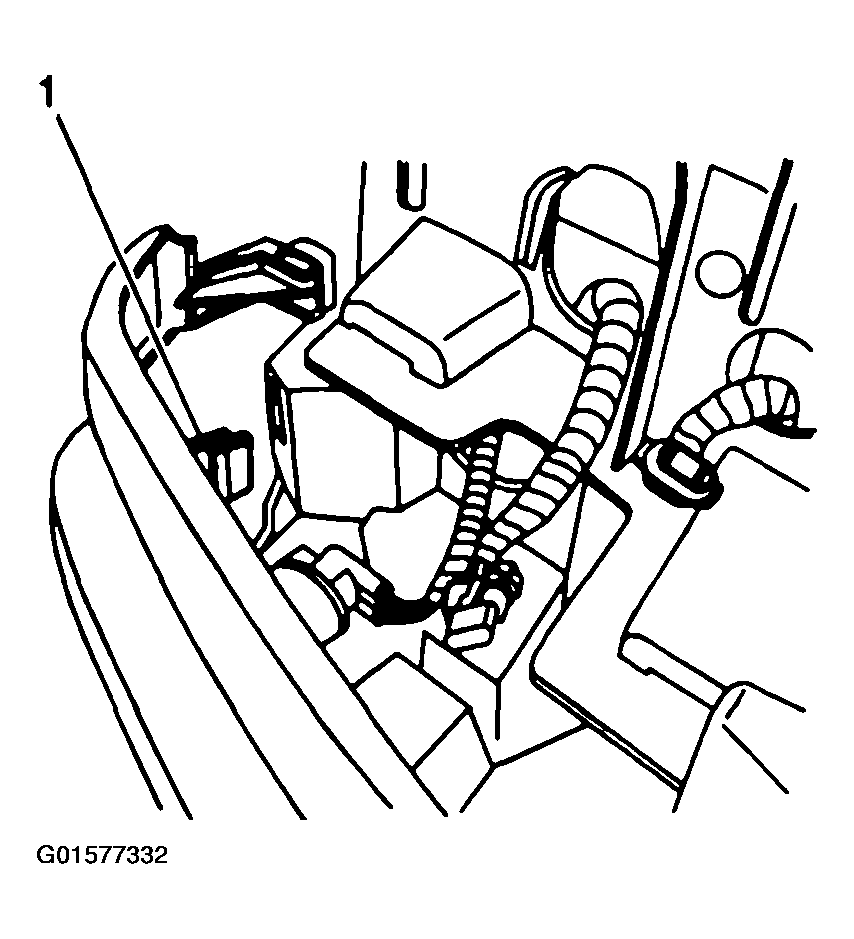

Fig 1: Locating Park/Turn Signal Lamp Inboard Retainer Clip (New Style)
Courtesy of GENERAL MOTORS CORP.
Install the headlamp. Refer to Headlamp Assembly Or Headlamp Bulb Replacement (Old Style) or Headlamp Assembly Or Headlamp Bulb Replacement (New Style GMC) or Headlamp Assembly Or Headlamp Bulb Replacement (New Style Chevy) .
