Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws from the roof marker lamp lens.
  2. Remove the roof marker lamp lens.
  3. Disconnect the electrical connector from the roof marker lamp.
  4. Remove the lamp assembly.

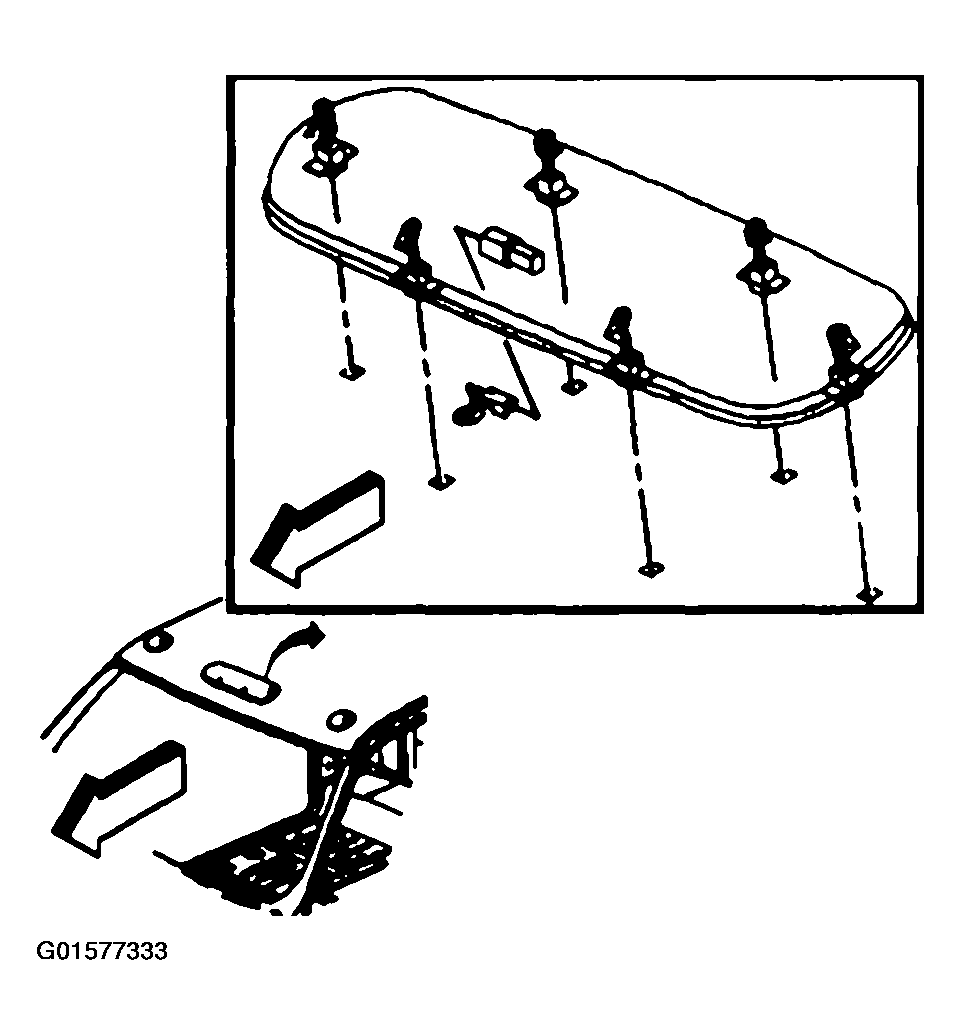

    Fig 1: Removing Roof Marker Lamp (Center)
    G01577333Courtesy of GENERAL MOTORS CORP.
