Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lamp assembly.
  2. Connect the electrical connector to the roof marker lamp.
  3. Install the roof marker lamp lens.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the screws to the roof marker lens.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

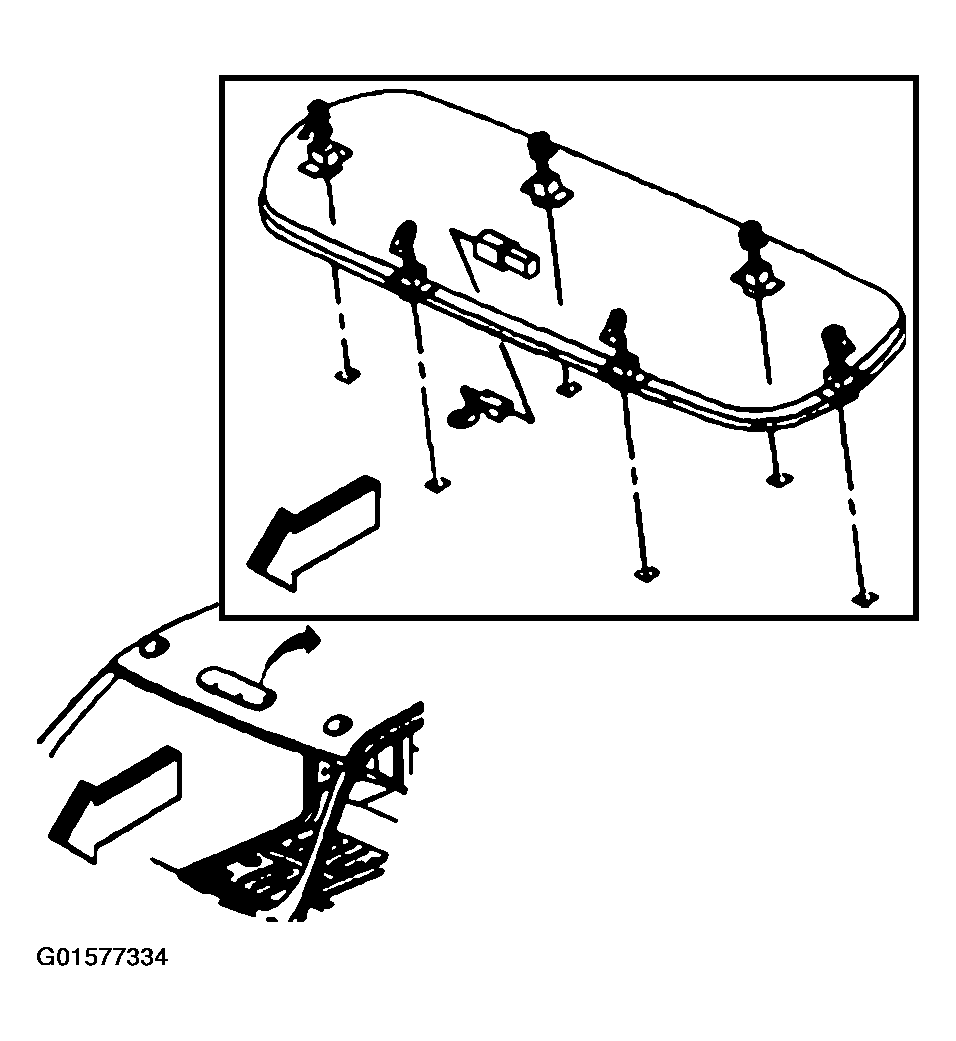

    Fig 1: Installing Roof Marker Lamp (Center)
    G01577334Courtesy of GENERAL MOTORS CORP.
