Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. In order to install the bulb, push in the bulb until the bulb is seated.
  2. Install the roof marker lamp lens.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screws to the roof marker lamp lens.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb ft).

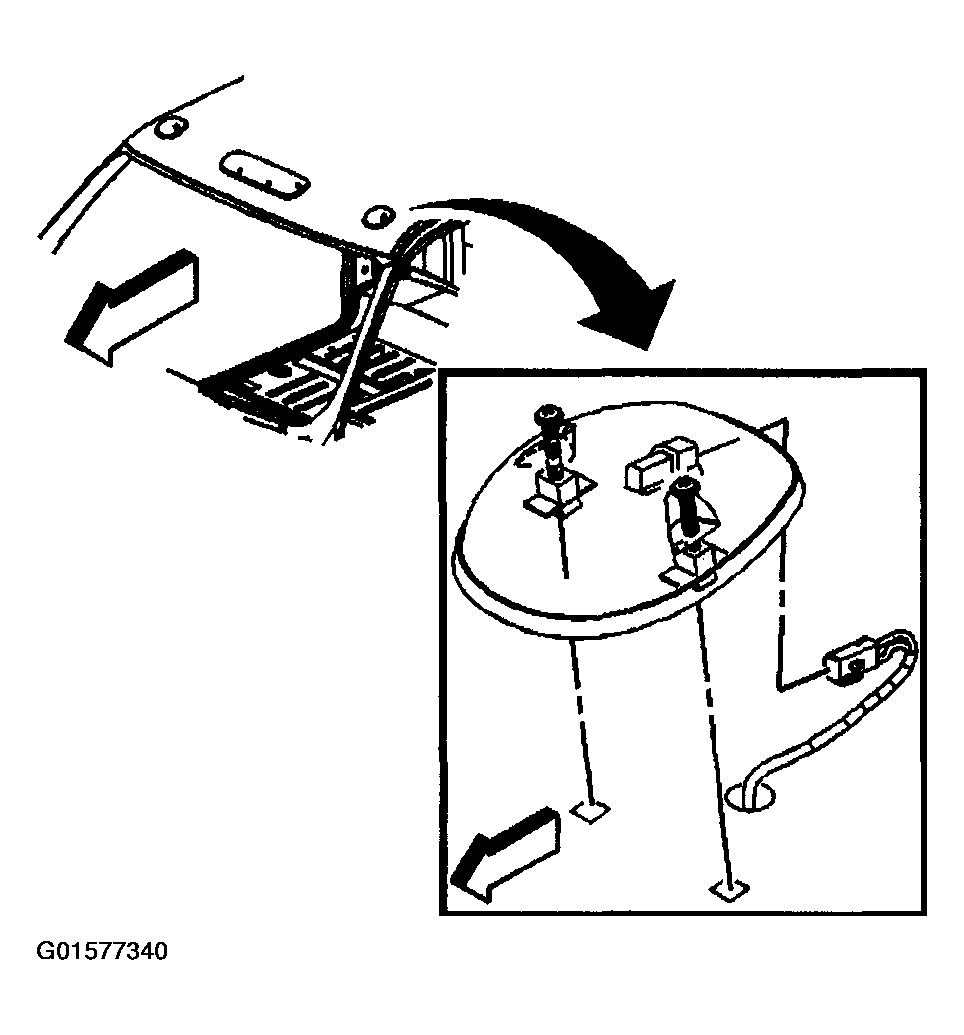

    Fig 1: Installing Roof Marker Lamp Lens (Outer)
    G01577340Courtesy of GENERAL MOTORS CORP.
