Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb.
  2. Install the lens to the lamp assembly (2).
  3. Install the wiring (3) to the back of the lens assembly.

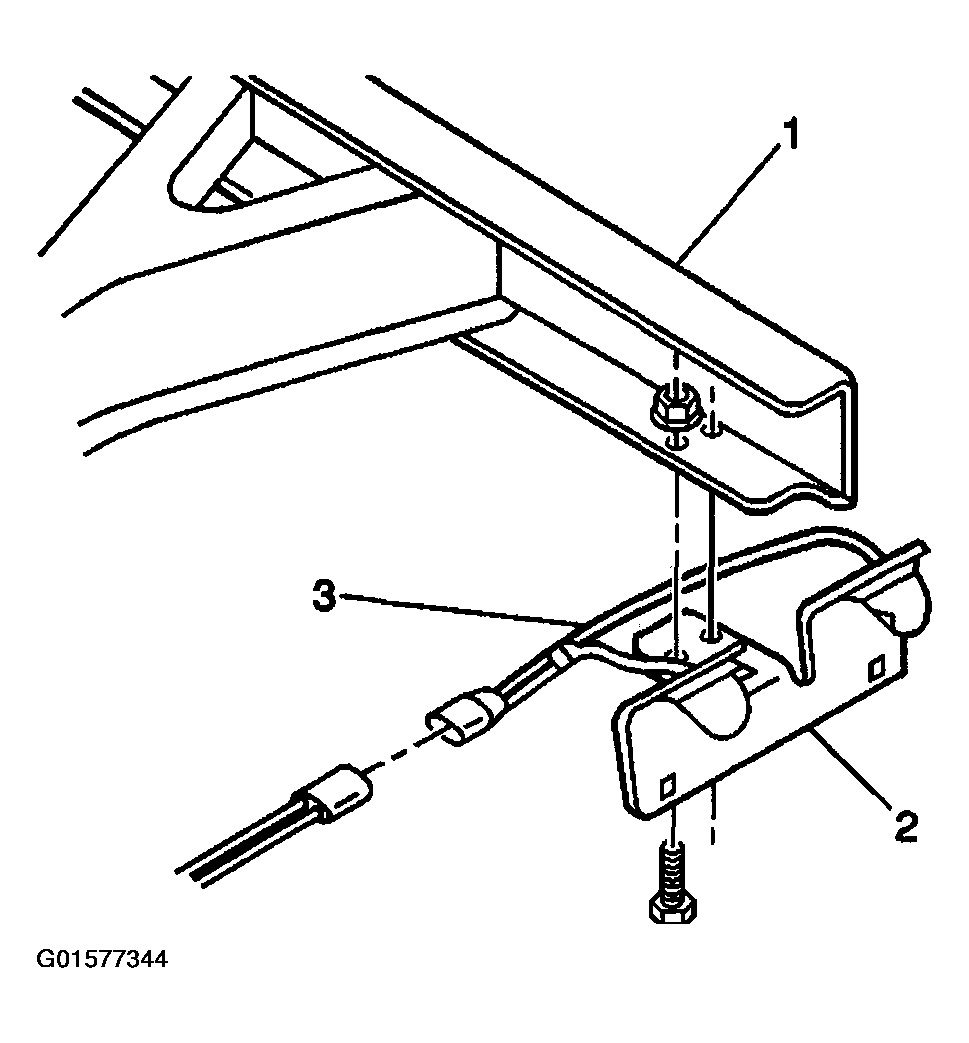

    Fig 1: Installing License Lamp (Pickup W/O Bumper)
    G01577344Courtesy of GENERAL MOTORS CORP.
