Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the instrument panel storage compartment door by pressing in the tab.
  2. With one hand holding the plunger of the switch, use a small screw driver to push in the tabs on each side while pulling outwards.
  3. Pull the switch assembly from the I/P.
  4. Disconnect the electrical connector.

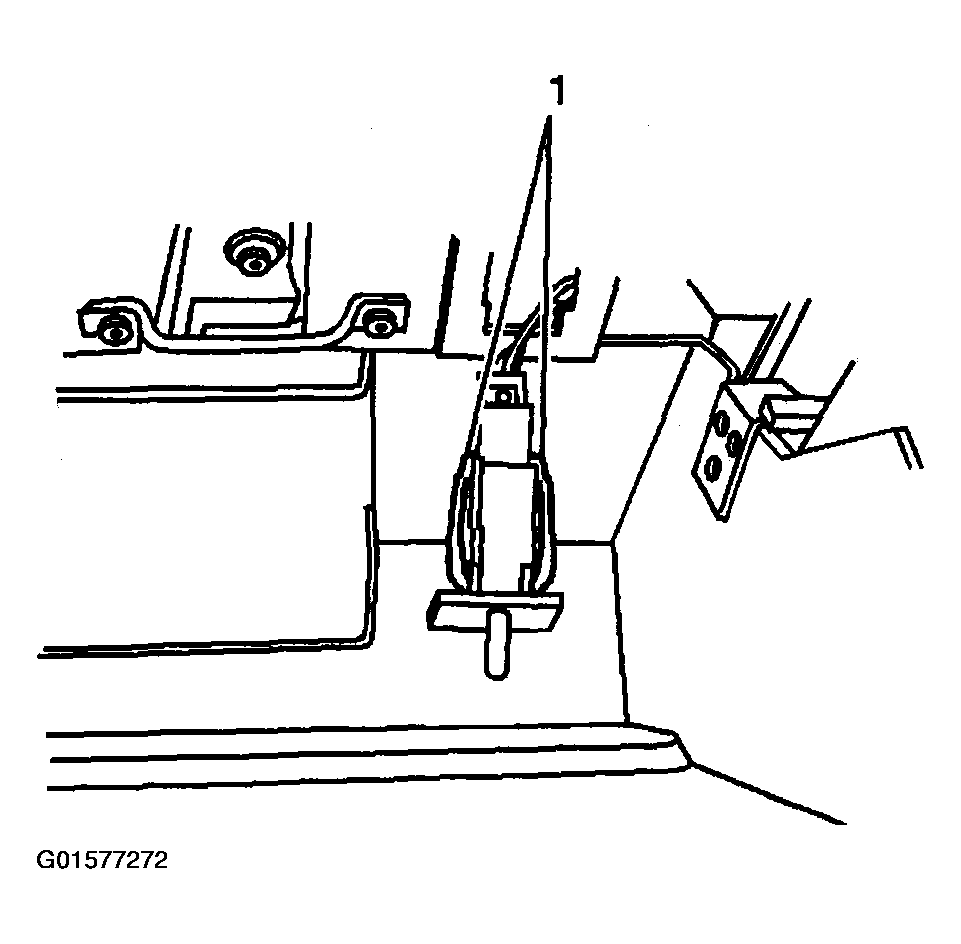

    Fig 1: Disconnecting Instrument Panel (I/P) Compartment Lamp Switch Electrical Connector
    G01577272Courtesy of GENERAL MOTORS CORP.
  5. Remove the bulb (1).

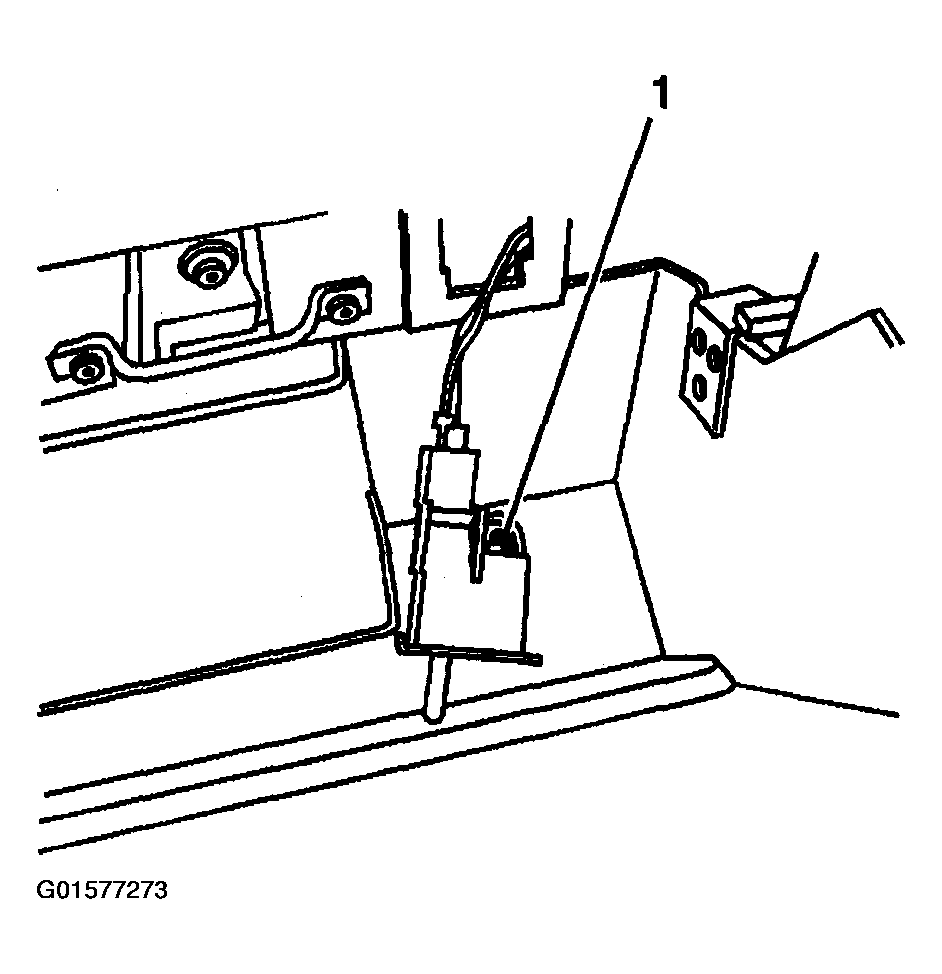

    Fig 2: Removing Instrument Panel (I/P) Compartment Lamp Bulb
    G01577273Courtesy of GENERAL MOTORS CORP.
