Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Tighten

    Tighten the fog lamp bolt to 9 N.m (7 lb ft).

  2. Install the fog lamp to the bumper fascia.
  3. Install the retainers that attach the fog lamp to the bracket.
  4. Connect the electrical connector to the fog lamp.
  5. Inspect the fog lamp aiming.

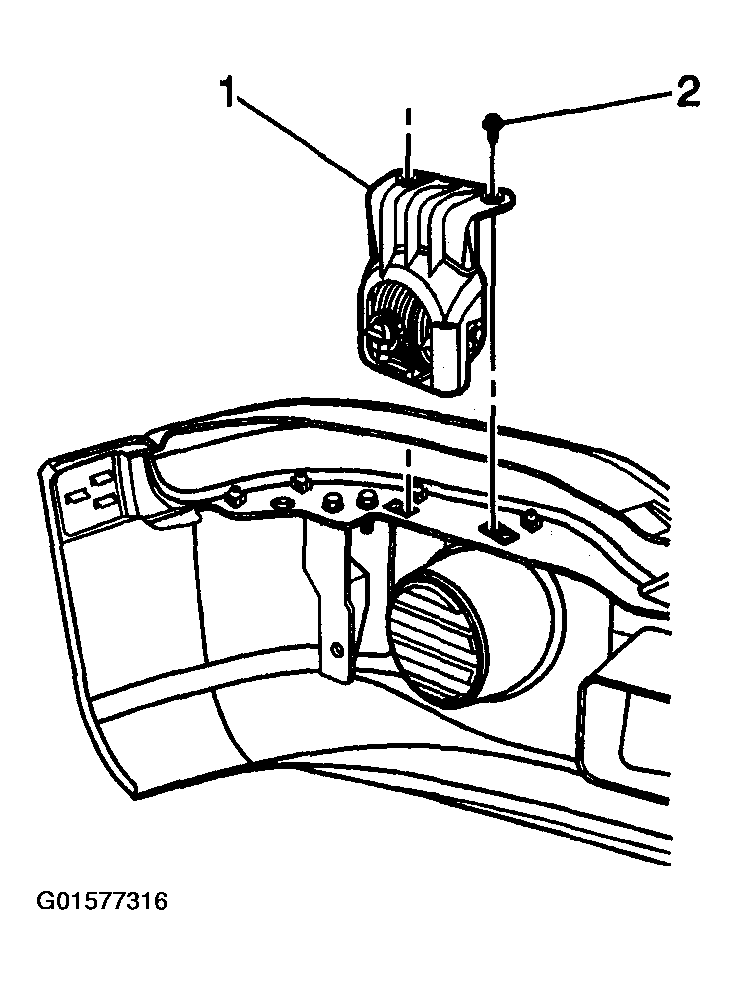

    Fig 1: Installing Front Fog Lamp (New Style GMC)
    G01577316Courtesy of GENERAL MOTORS CORP.
