Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical connector from the fog lamp.
  2. Remove the retainers that attach the fog lamp to the bracket.
  3. Remove the fog lamp from the bumper fascia.

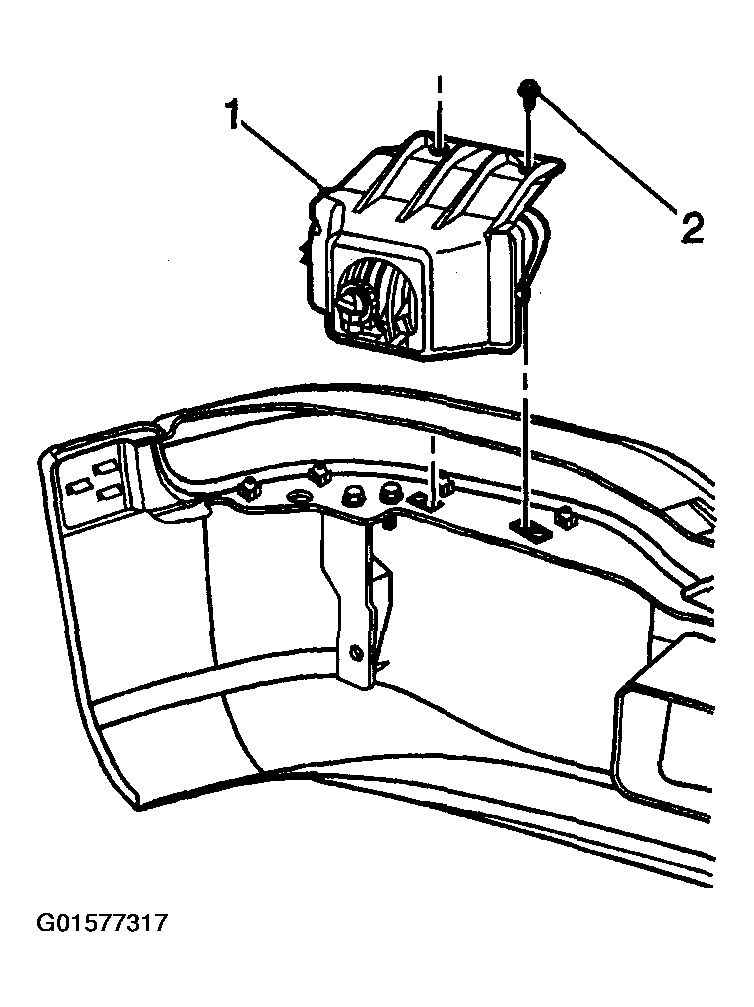

    Fig 1: Removing Front Fog Lamp (New Style Chevrolet)
    G01577317Courtesy of GENERAL MOTORS CORP.
