Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the electrical connector.
    CAUTION: Refer to HALOGEN BULB CAUTION .
  2. Remove the bulb from the fog lamp assembly by twisting the bulb counterclockwise and pulling the bulb out.

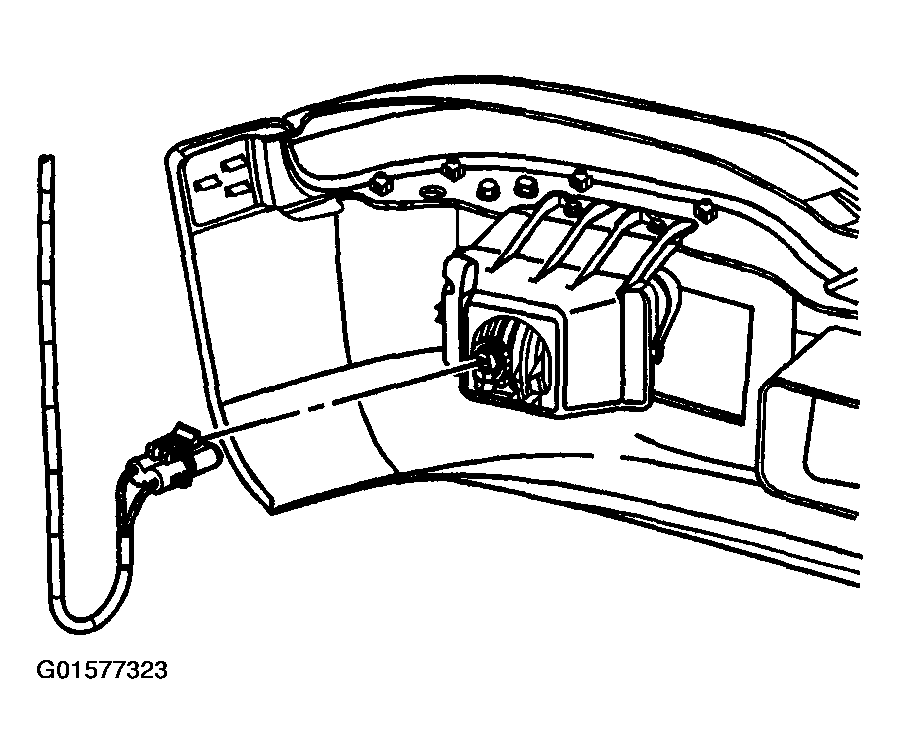

    Fig 1: Removing Front Fog Lamp Bulb Electrical Connector (New Style Chevrolet)
    G01577323Courtesy of GENERAL MOTORS CORP.
