Headlamps Always On-Low or High Beam

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

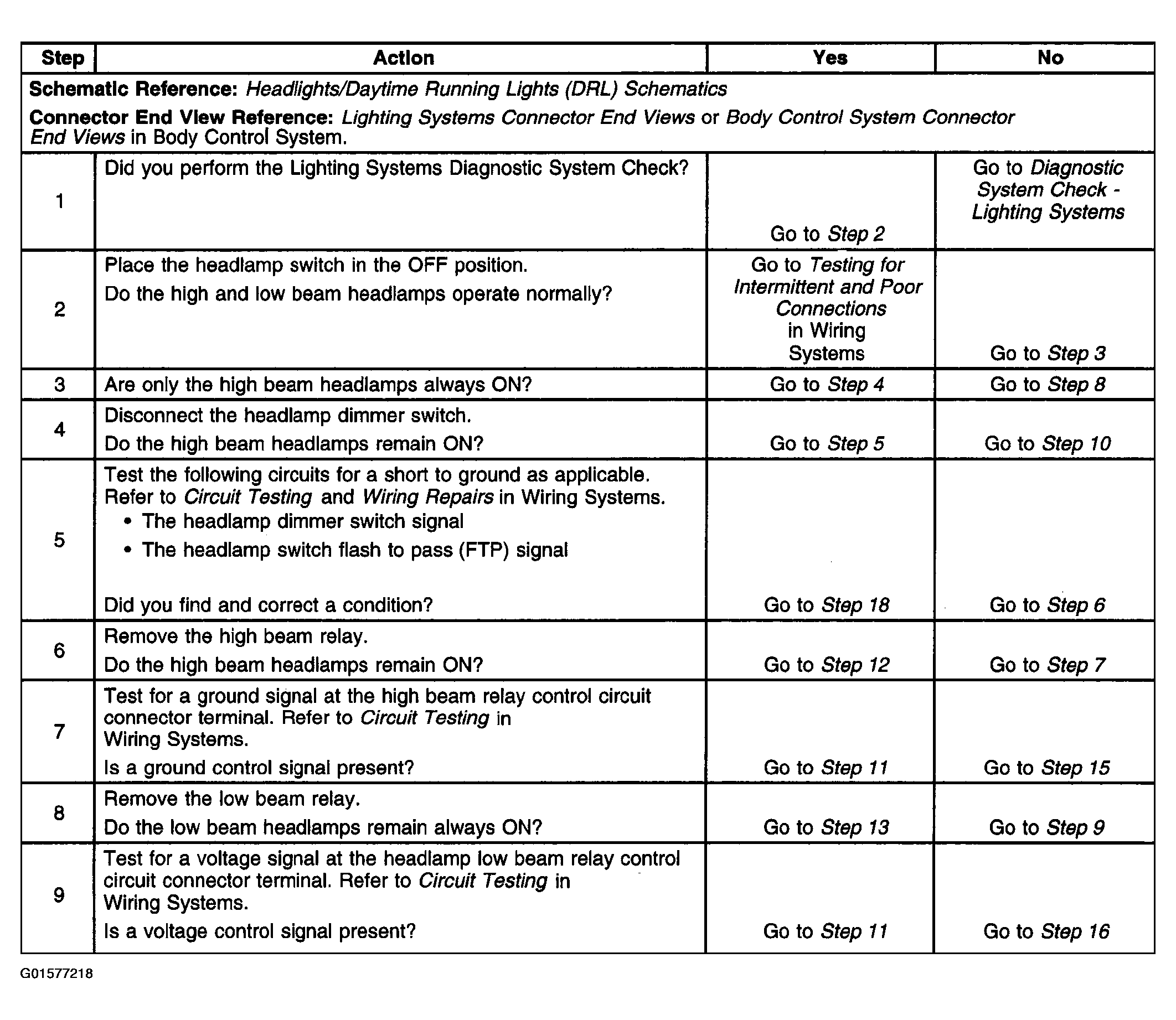

Fig 1: Headlamps Always On-Low Or High Beam (Steps 1 - 9)

Courtesy of GENERAL MOTORS CORP.

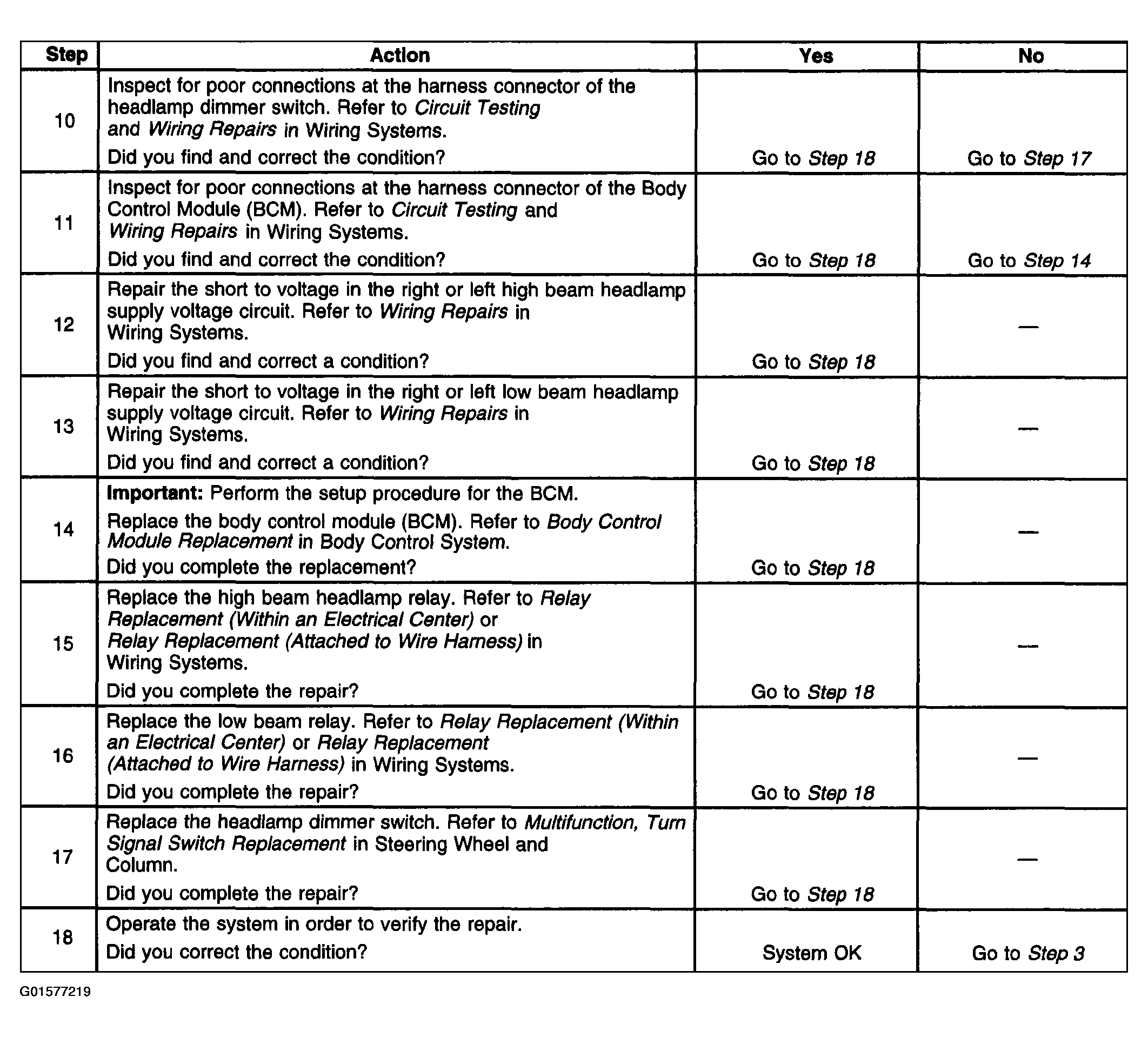

Fig 2: Headlamps Always On-Low Or High Beam - (Steps 10 - 18)

Courtesy of GENERAL MOTORS CORP.
