Daytime Running Lamps (DRL) Inoperative

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

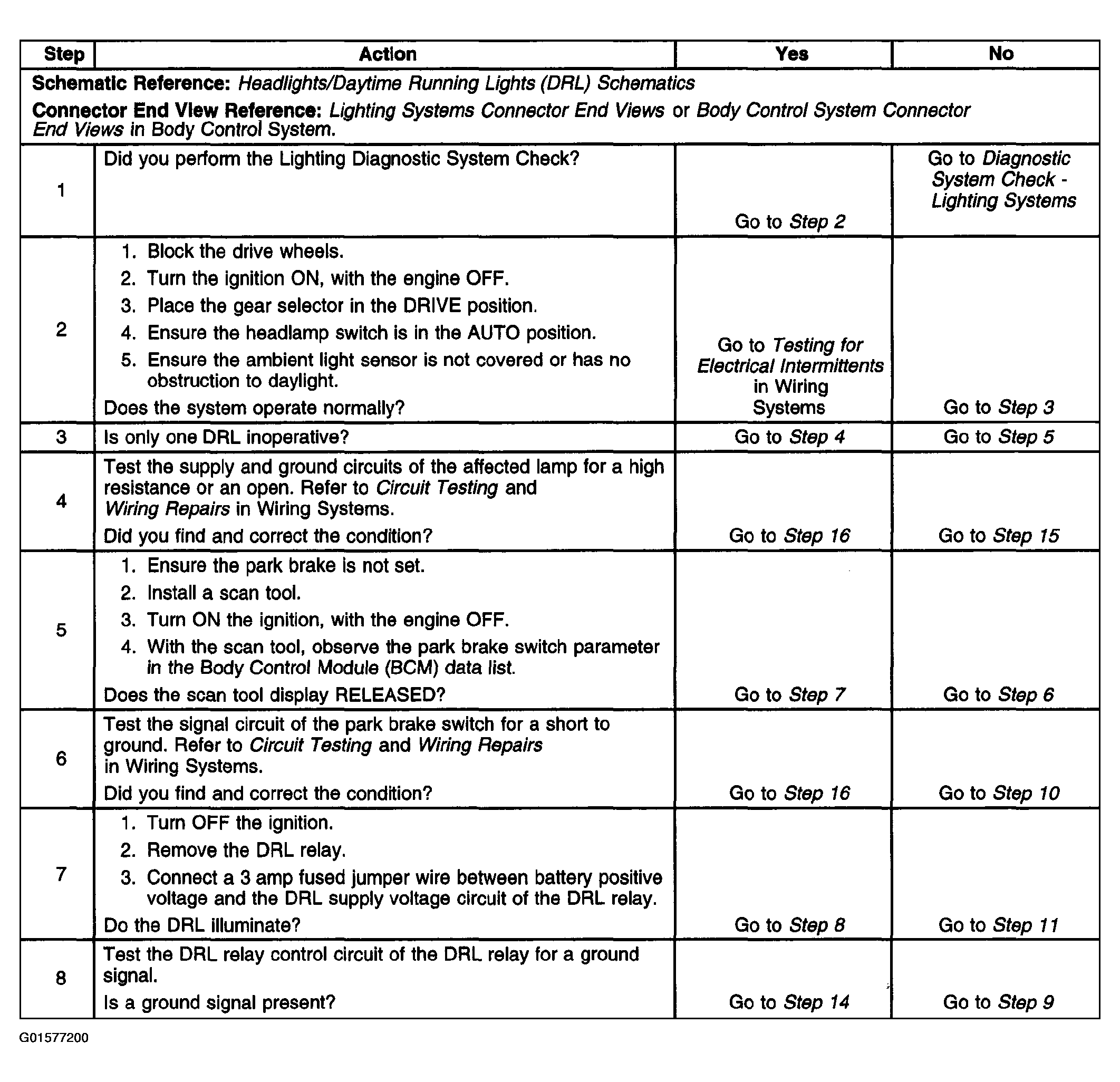

Fig 1: Daytime Running Lamps Inoperative (Steps 1 - 8)
G01577200Courtesy of GENERAL MOTORS CORP.

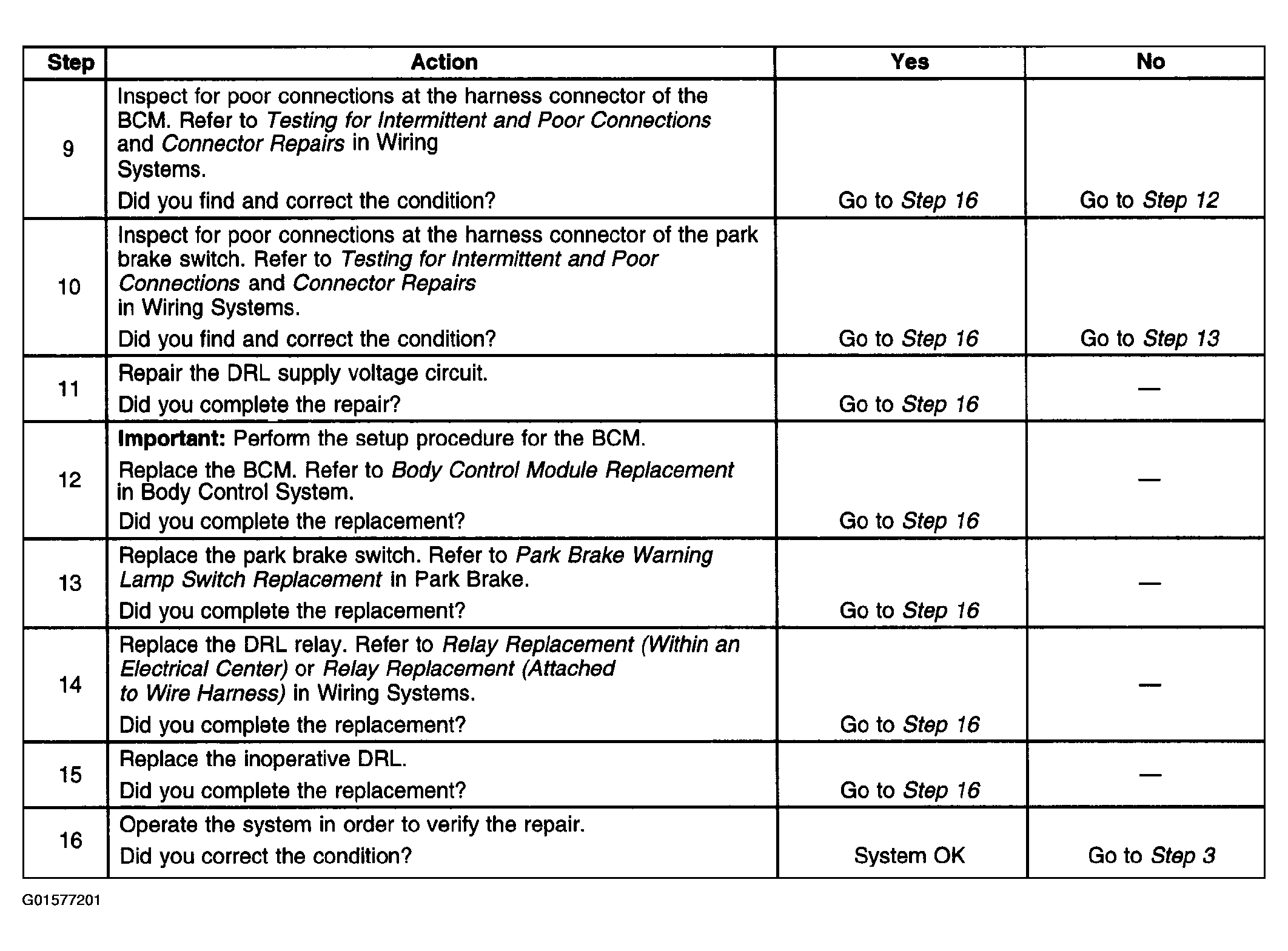

Fig 2: Daytime Running Lamps Inoperative (Steps 9 - 16)
G01577201Courtesy of GENERAL MOTORS CORP.
