Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side end panel.
  2. Push in the tabs in order to remove the fuse block.
  3. Pull out the fuse block out of the I/P in order to remove the retaining bolt.
  4. Loosen the bolt.
  5. Insert a screw driver between the wire harness block and fuse block in order to separate.
  6. Separate the fuse block from the I/P harness block.
  7. Remove the I/P wiring harness block from the vehicle.

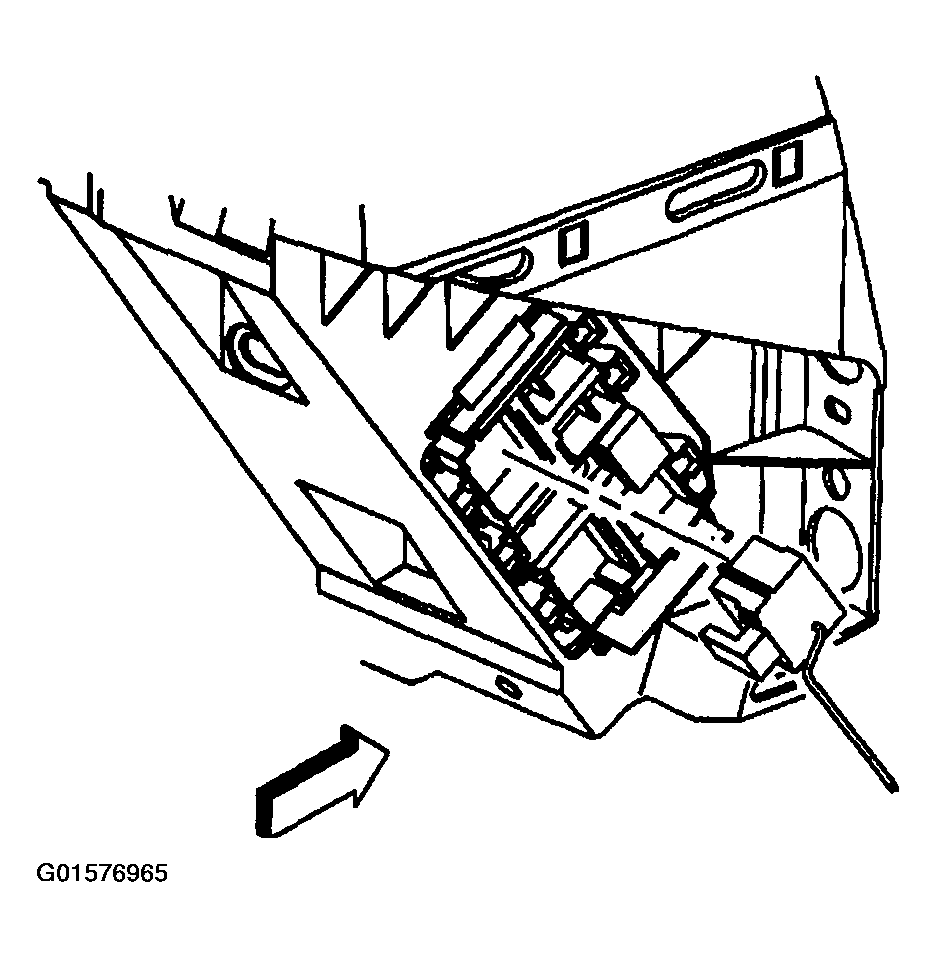

    Fig 1: Right Instrument Panel Electrical Center Or Junction Block
    G01576965Courtesy of GENERAL MOTORS CORP.
