Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fuse block to the I/P wire harness block.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the retaining bolt.

    Tighten

    Tighten the bolt to 6 N.m (53 lb in)

  3. Install the fuse block to the I/P until it clicks in place.

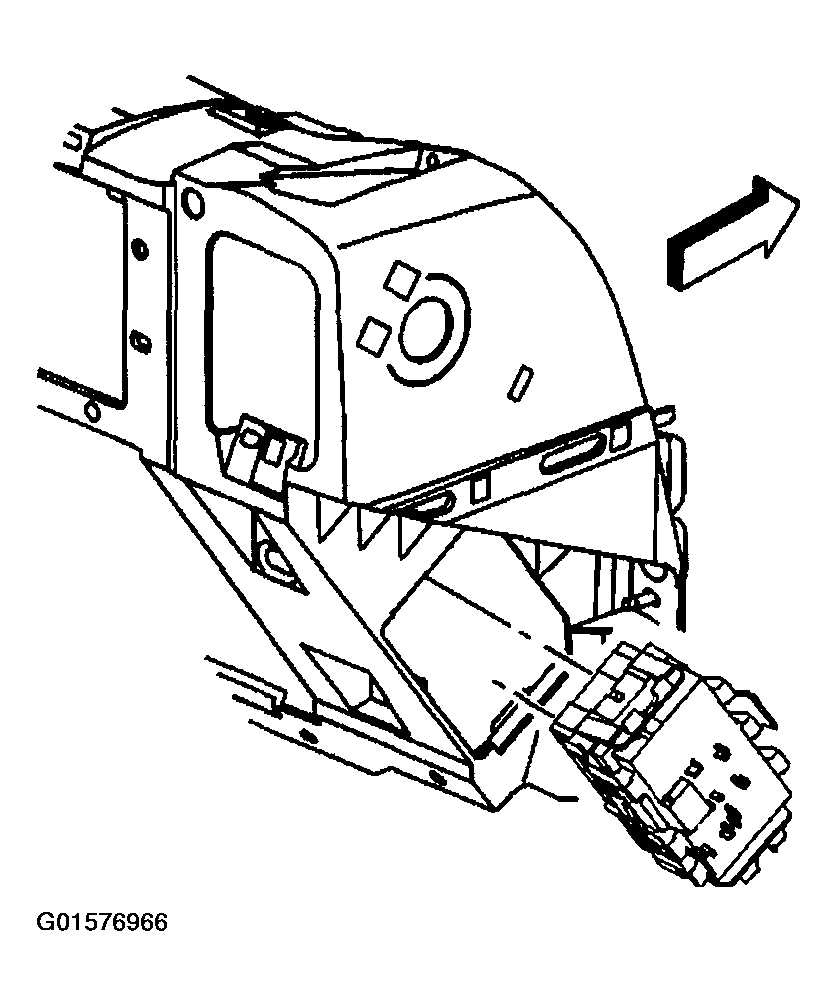

    Fig 1: Installing Fuse Block To I/P
    G01576966Courtesy of GENERAL MOTORS CORP.
  4. Connect the wiring connectors to the fuse block.
  5. Install the right side end panel.

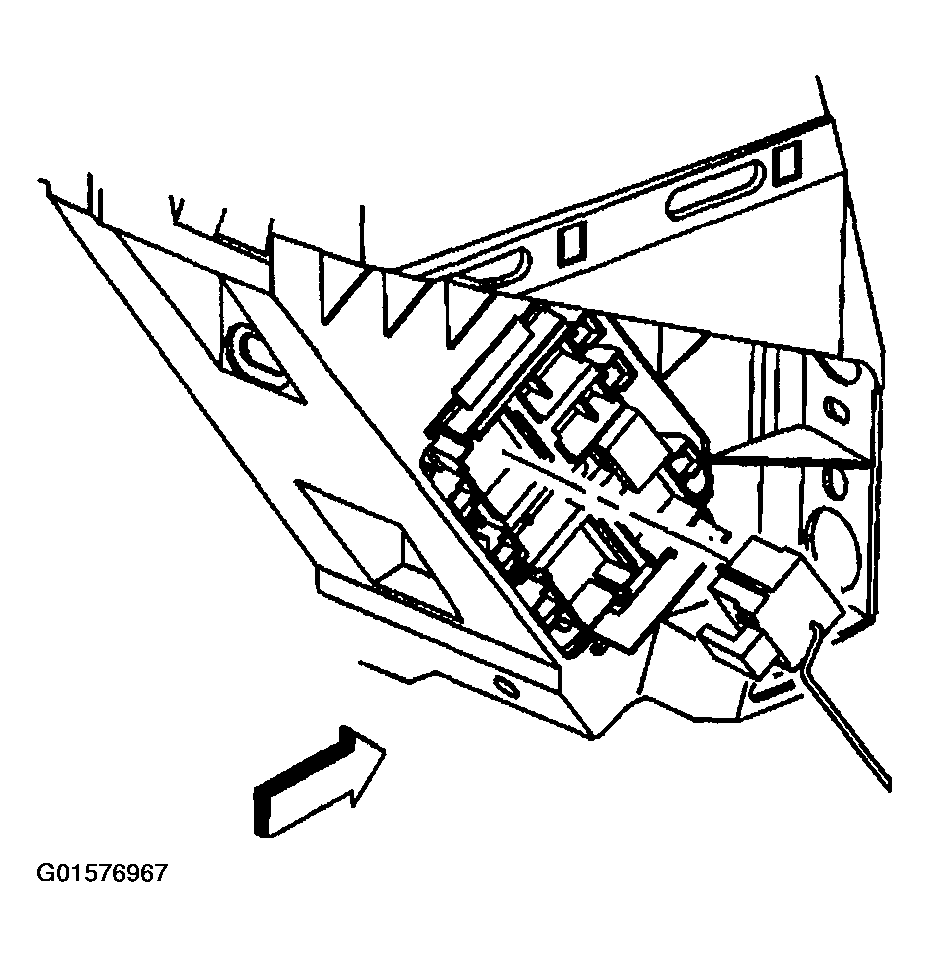

    Fig 2: Installing Right Side End Panel
    G01576967Courtesy of GENERAL MOTORS CORP.
