Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fuse block onto the I/P assembly until it clicks in place.
  2. Install the wire harness block to the back of the fuse block.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the bolt.

    Tighten

    Tighten the bolt to 6 N.m (53 lb in).

  4. Install the turn signal relay to the back of the fuse block.
  5. Using the wiring diagram on the cover of the fuse panel, install the fuses.
  6. Install the electrical connectors.
  7. Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT .
  8. Install the left side end panel.

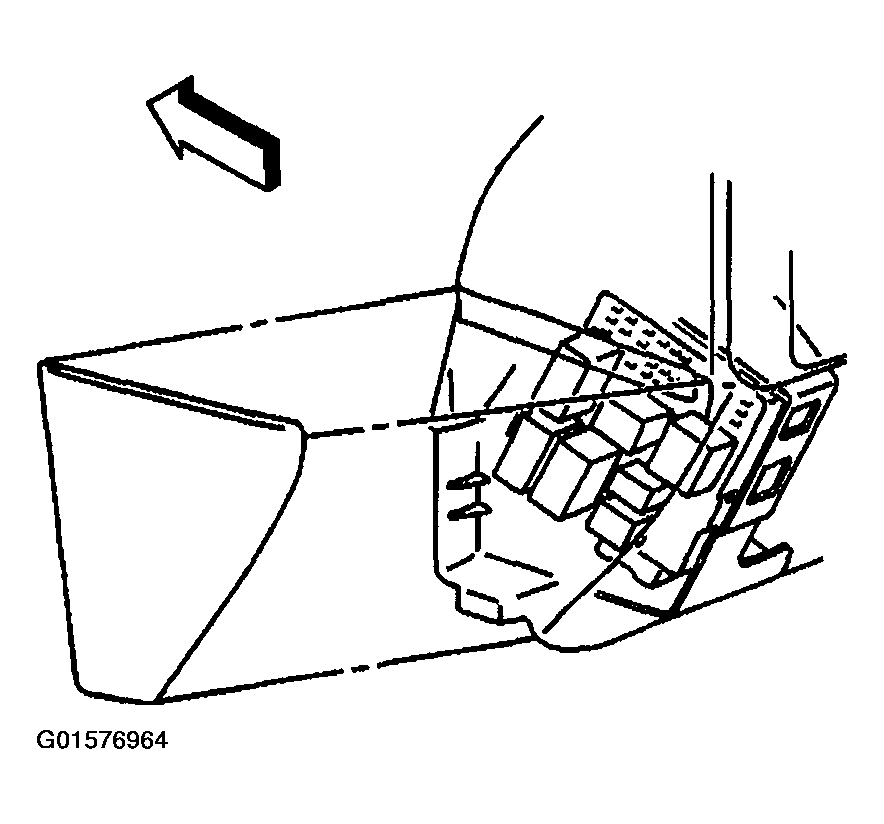

    Fig 1: Left Instrument Panel Electrical Center Or Junction Block
    G01576964Courtesy of GENERAL MOTORS CORP.
