Electrical Symbols

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

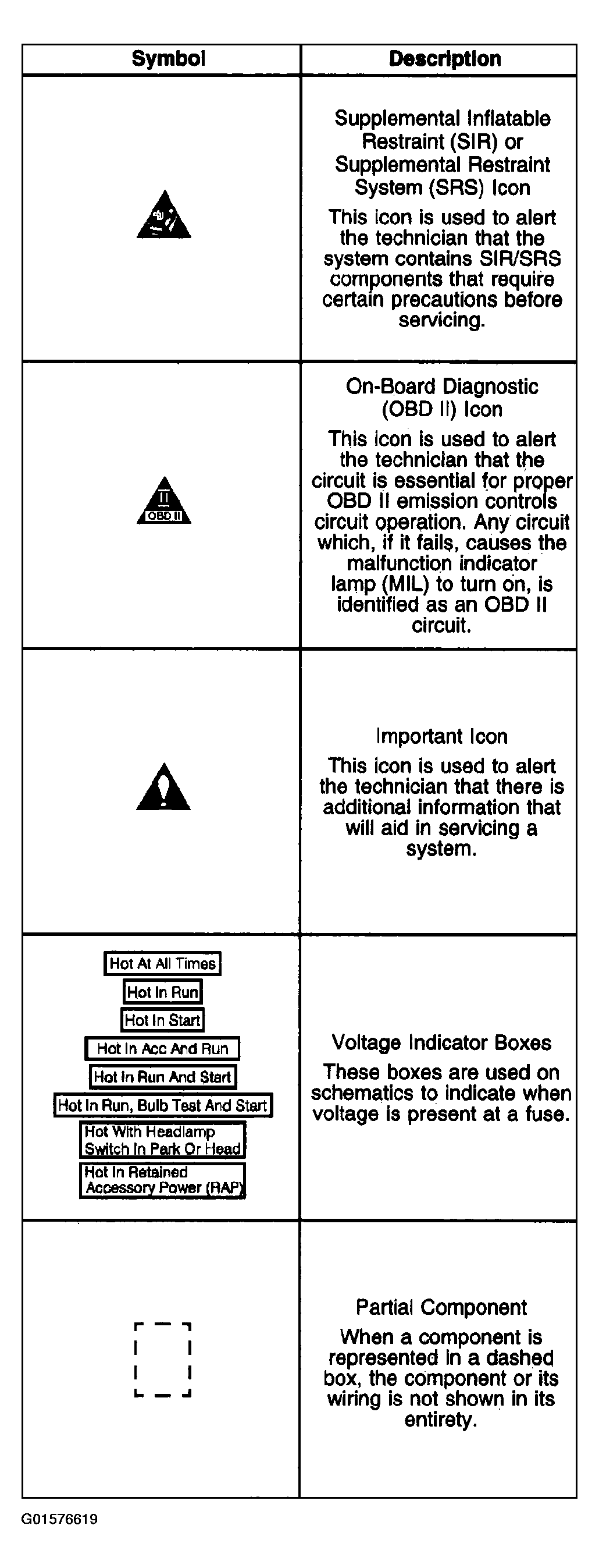

Fig 1: Electrical Symbols (1 Of 8)

G01576619

Courtesy of GENERAL MOTORS CORP.

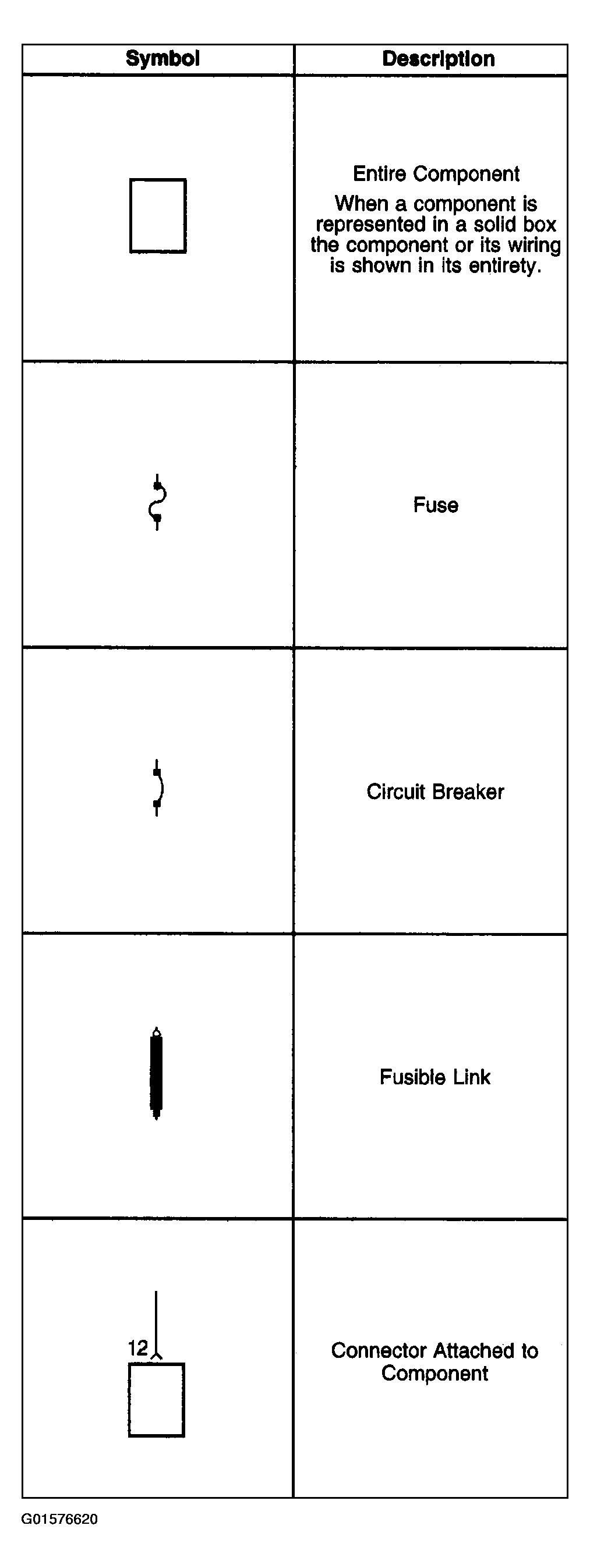

Fig 2: Electrical Symbols (2 Of 8)

G01576620

Courtesy of GENERAL MOTORS CORP.

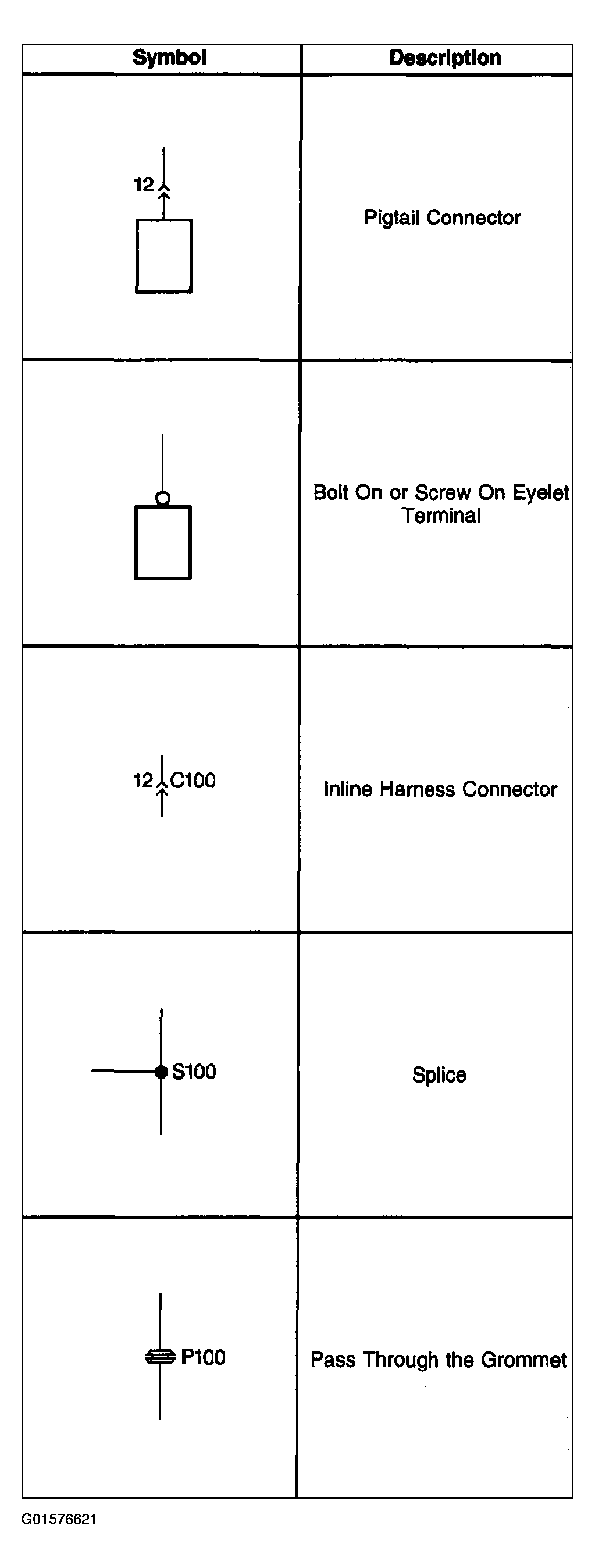

Fig 3: Electrical Symbols (3 Of 8)

G01576621

Courtesy of GENERAL MOTORS CORP.

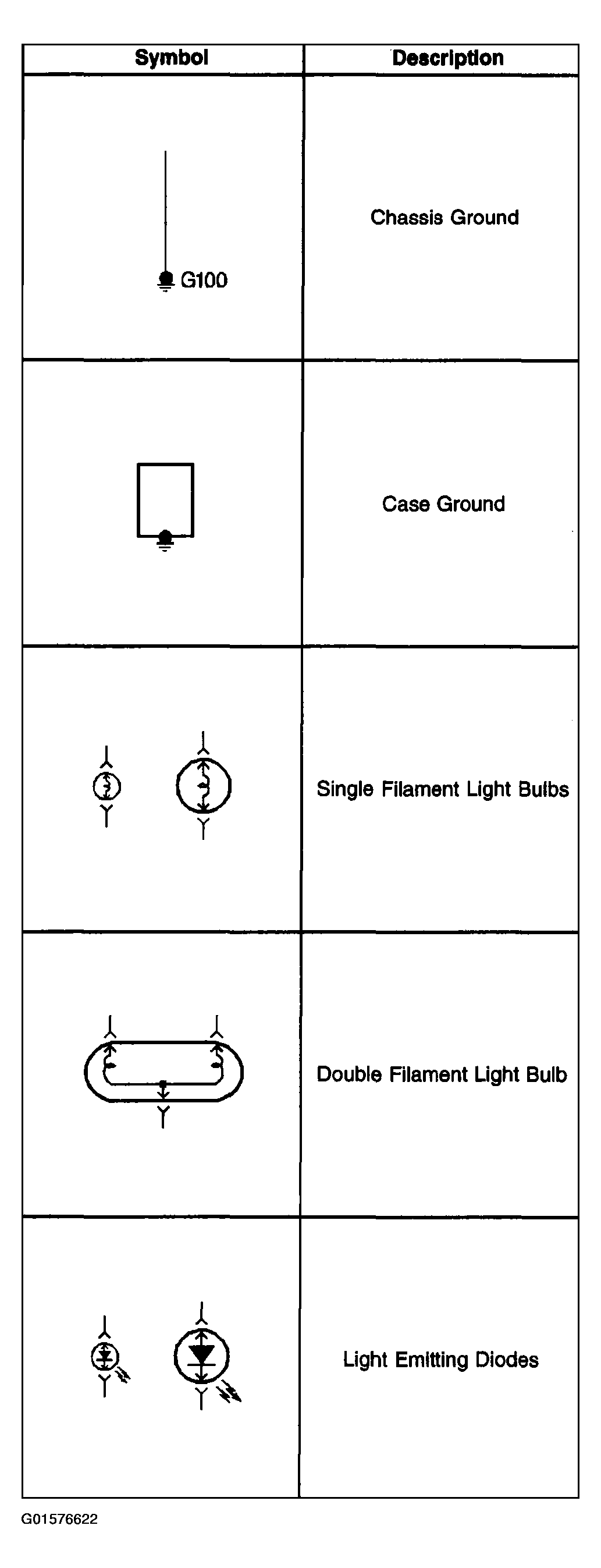

Fig 4: Electrical Symbols (4 Of 8)

G01576622

Courtesy of GENERAL MOTORS CORP.

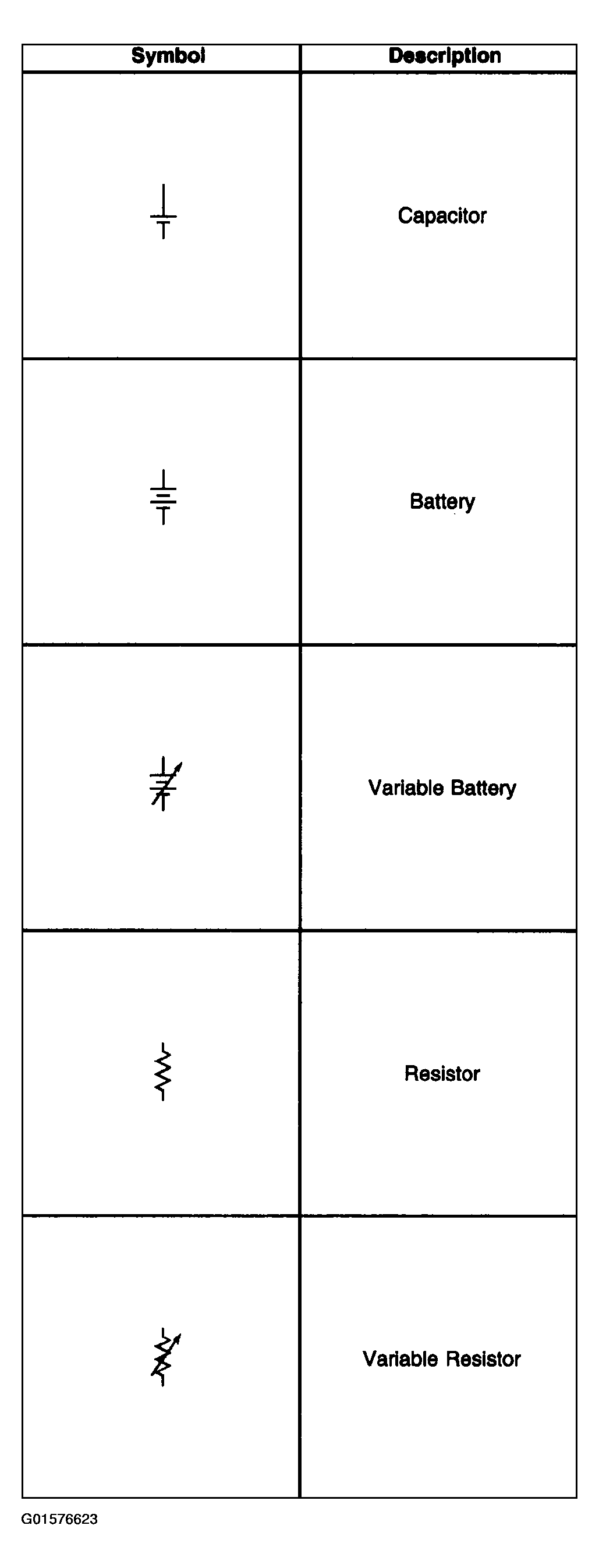

Fig 5: Electrical Symbols (5 Of 8)

G01576623

Courtesy of GENERAL MOTORS CORP.

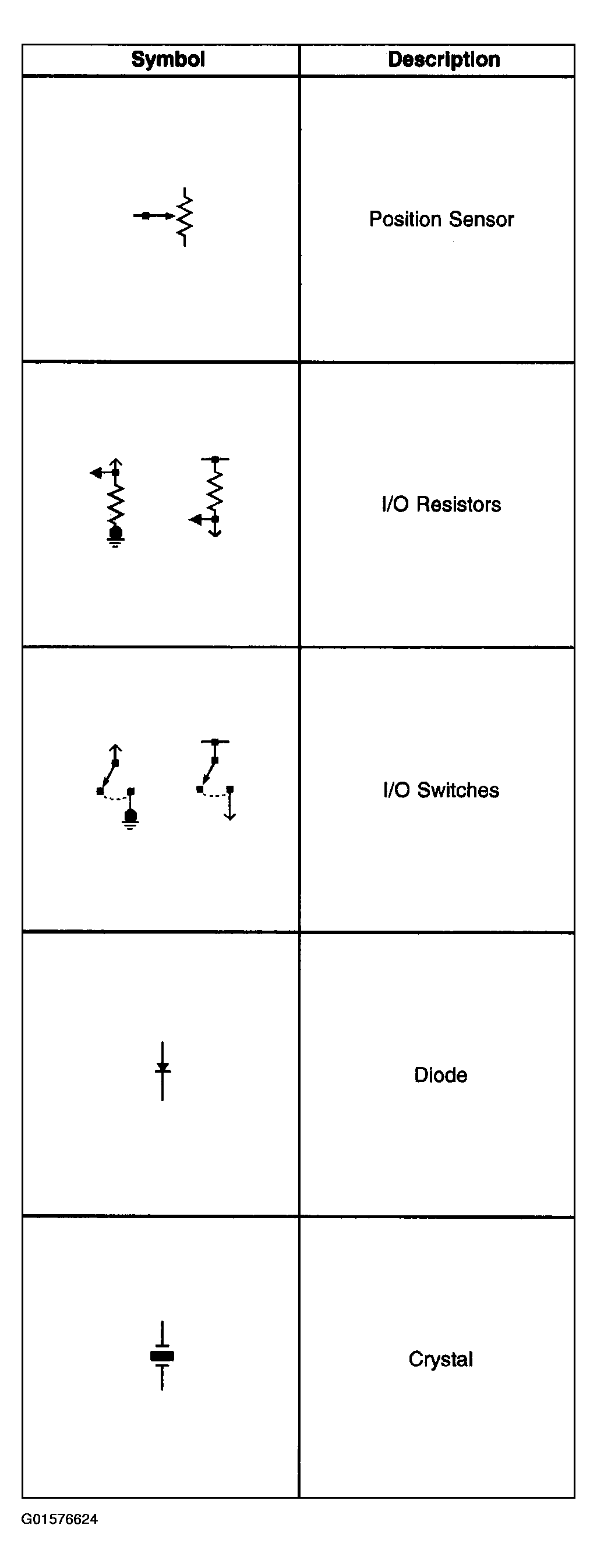

Fig 6: Electrical Symbols (6 Of 8)

G01576624

Courtesy of GENERAL MOTORS CORP.

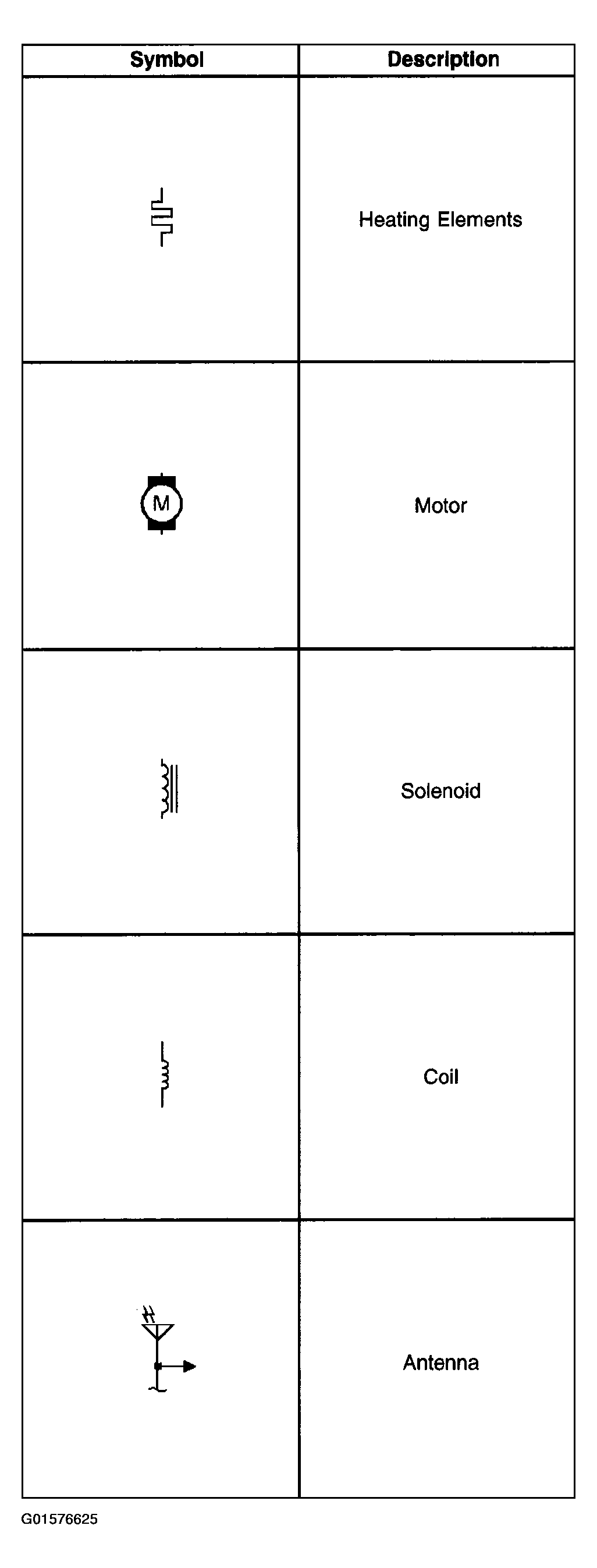

Fig 7: Electrical Symbols (7 Of 8)

G01576625

Courtesy of GENERAL MOTORS CORP.

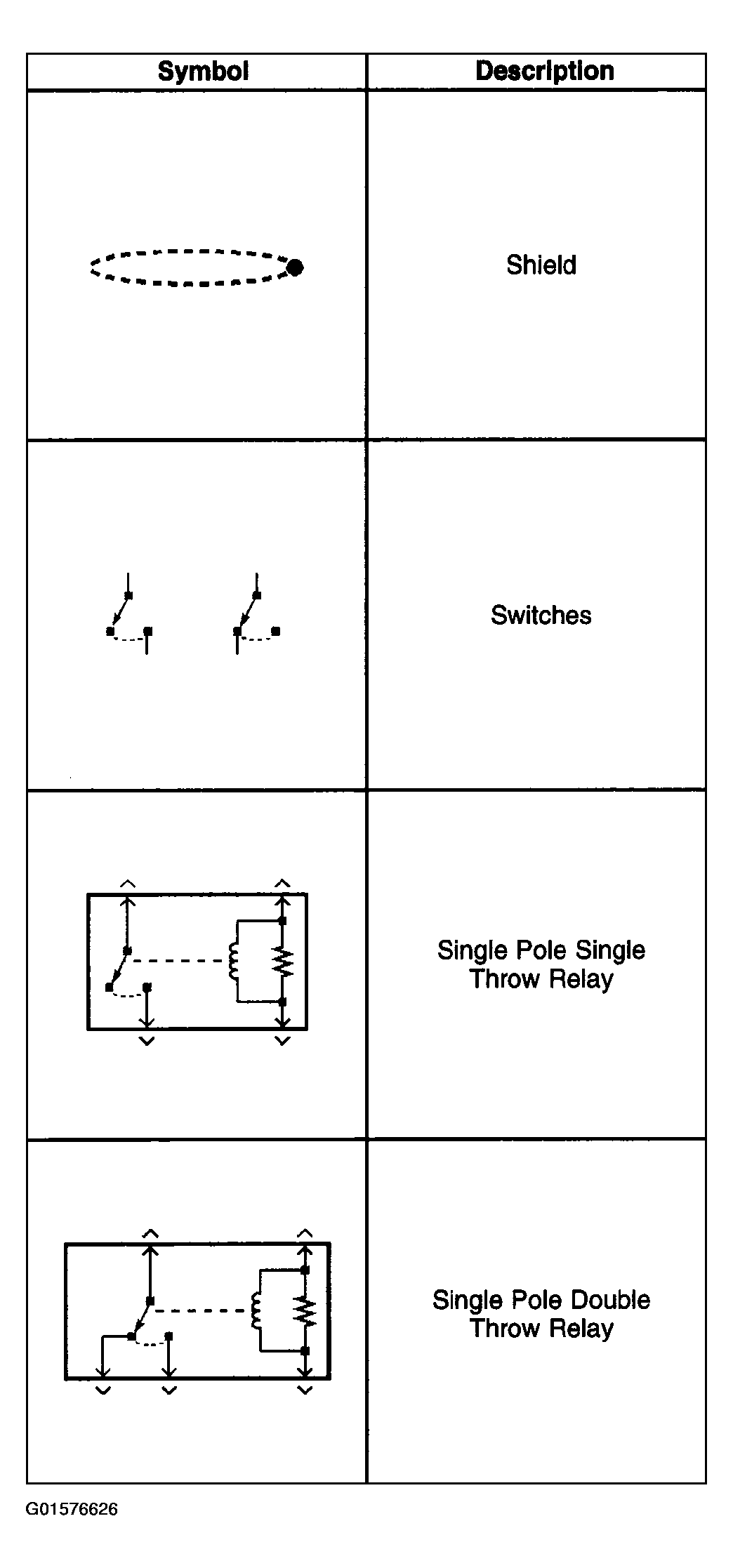

Fig 8: Electrical Symbols (8 Of 8)

G01576626

Courtesy of GENERAL MOTORS CORP.
