Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the manual transmission. Refer to:
  2. Remove the clutch release bearing.
    • Rotate the bearing in either direction
    • The compression spring load will push the release bearing off the end of the clutch actuator bearing.

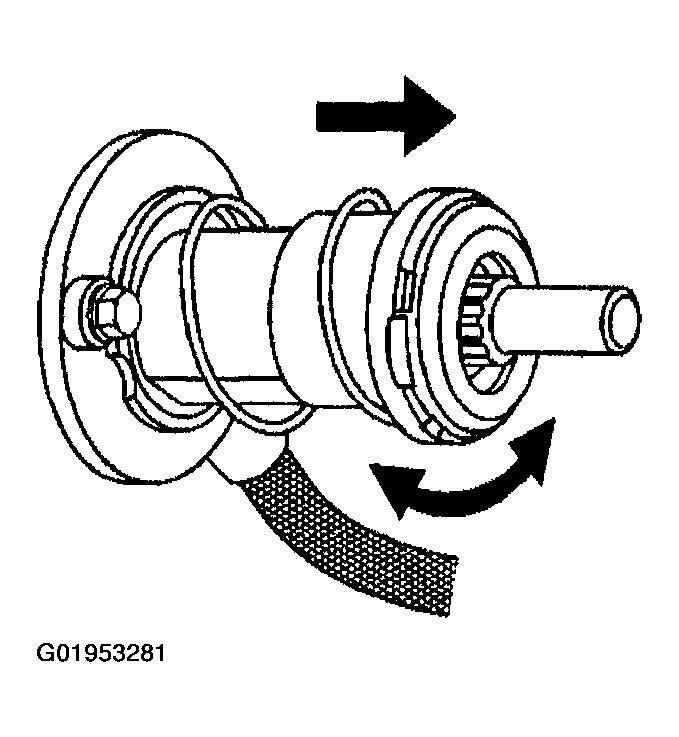

      Fig 1: Removing Clutch Release Bearing
      G01953281Courtesy of GENERAL MOTORS CORP.
