Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: DO NOT use cleaners or chemicals to clean the quill and DO NOT grease the quill.
  1. Using a clean dry cloth, clean the exposed area of the actuator cylinder quill.

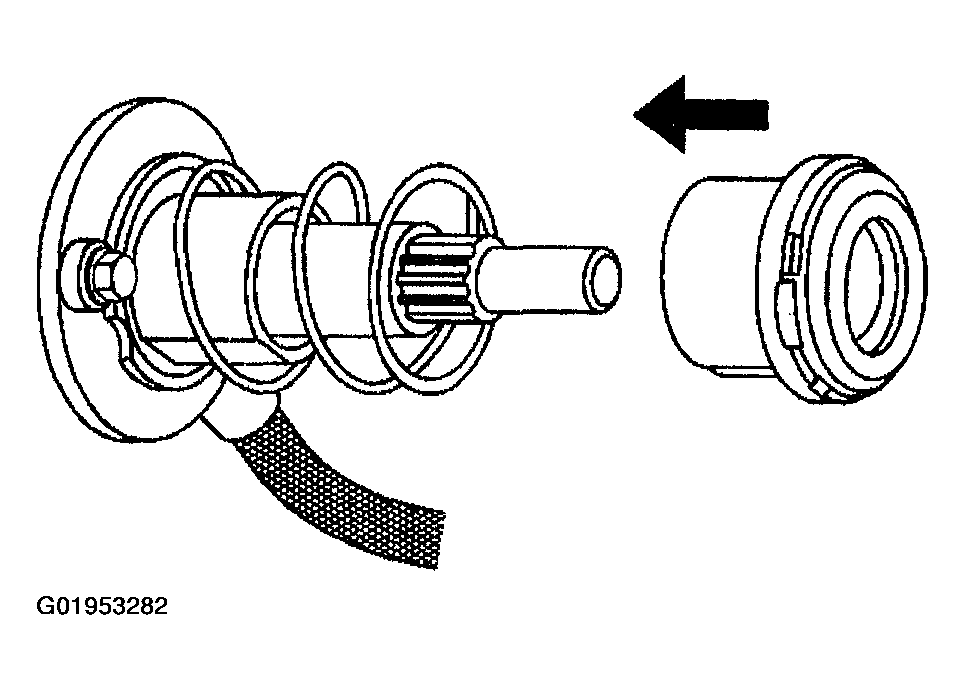

  2. Install the NEW clutch release bearing to the clutch actuator cylinder.
    • Firmly push the clutch release bearing into place.
    • The release bearing will snap over the retainer tab and will be self-retained to the actuator cylinder.
  3. Install the manual transmission. Refer to:
