Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The flywheel spacer (if applicable) must be removed prior to pilot bearing installation.

Install a 5/8 inch washer (1) onto the J 38836 or equivalent.
Install a NEW clutch pilot bearing (2) onto the tool.

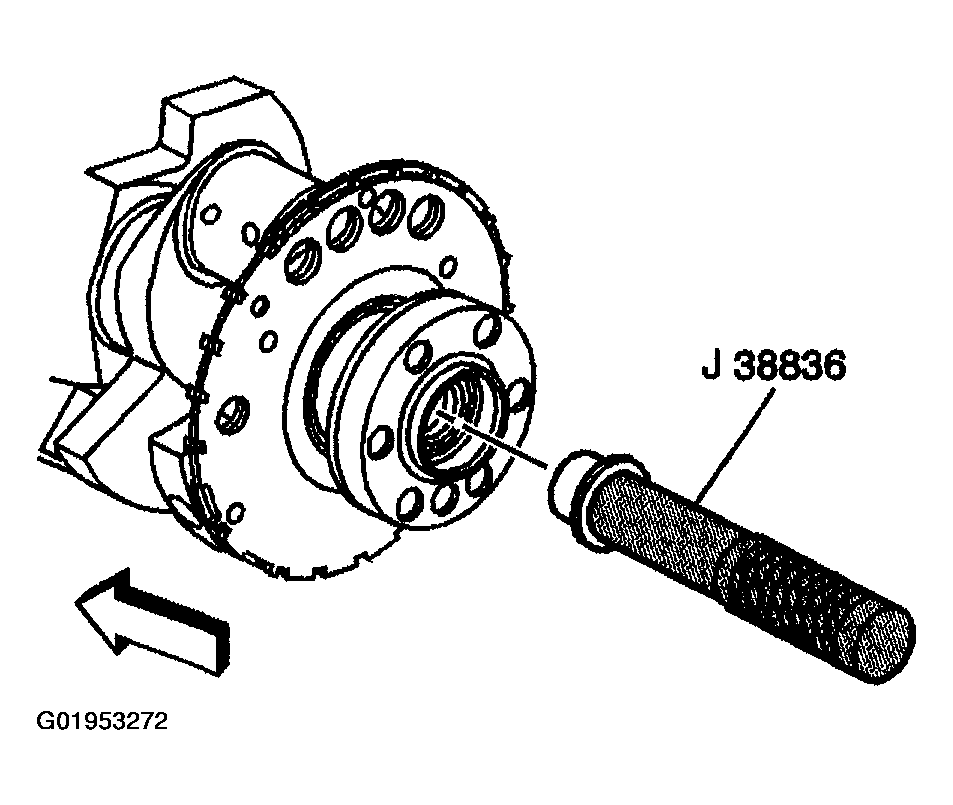

Fig 1: Installing Clutch Pilot Bearing
Courtesy of GENERAL MOTORS CORP.
Install the NEW clutch pilot bearing into the crankshaft using J 38836.

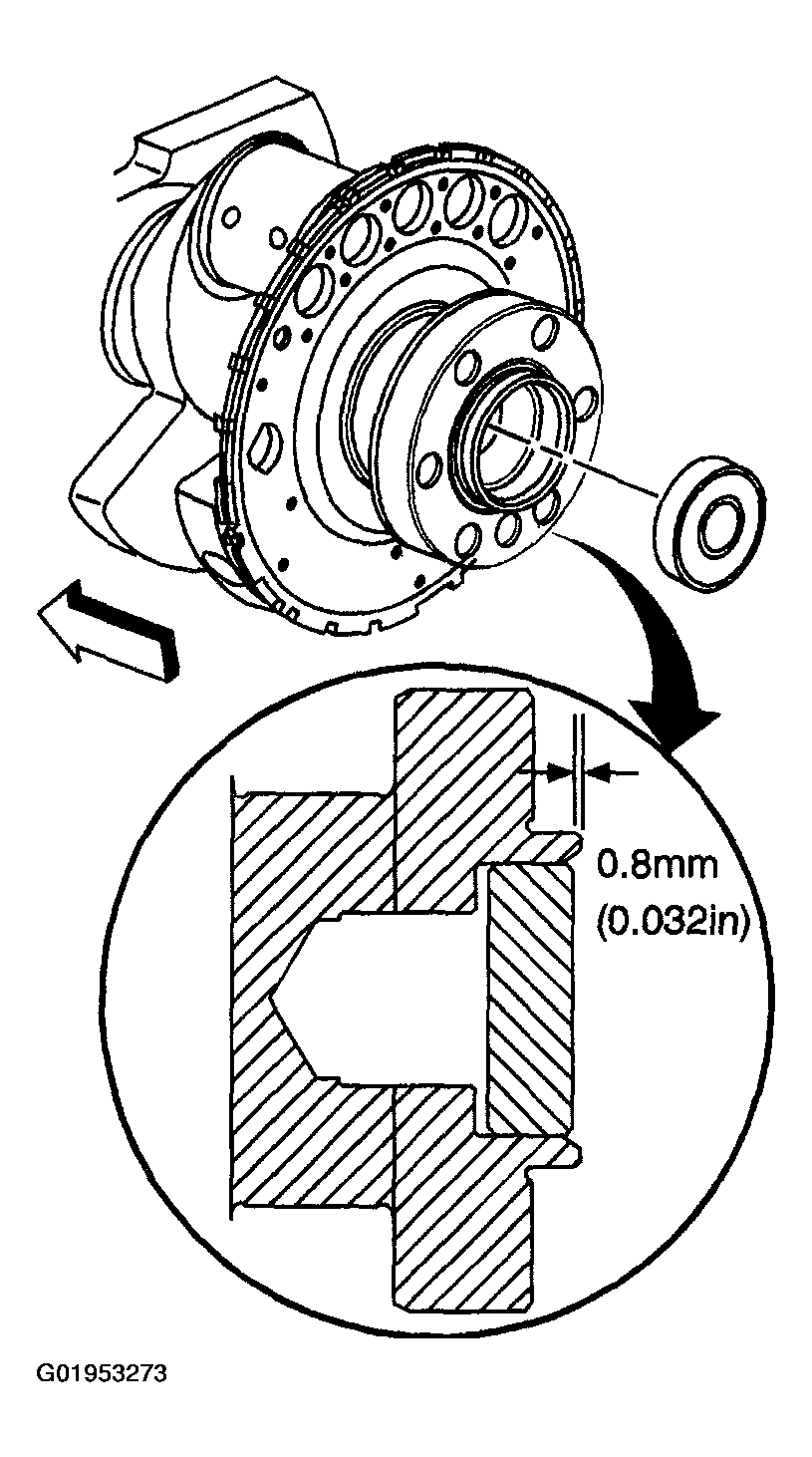

Fig 2: Installing Clutch Pilot Bearing Into Crankshaft
Courtesy of GENERAL MOTORS CORP.
Inspect the clutch pilot bearing for proper installation.
Install the clutch assembly. Refer to Clutch Assembly Replacement .

Fig 3: Inspecting Clutch Pilot Bearing For Proper Installation
Courtesy of GENERAL MOTORS CORP.
