Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the clutch pedal position switch electrical connector (1).
  2. Remove the plastic retainer tabs from the clutch pedal position switch.
  3. Remove the clutch pedal position switch from the pushrod.

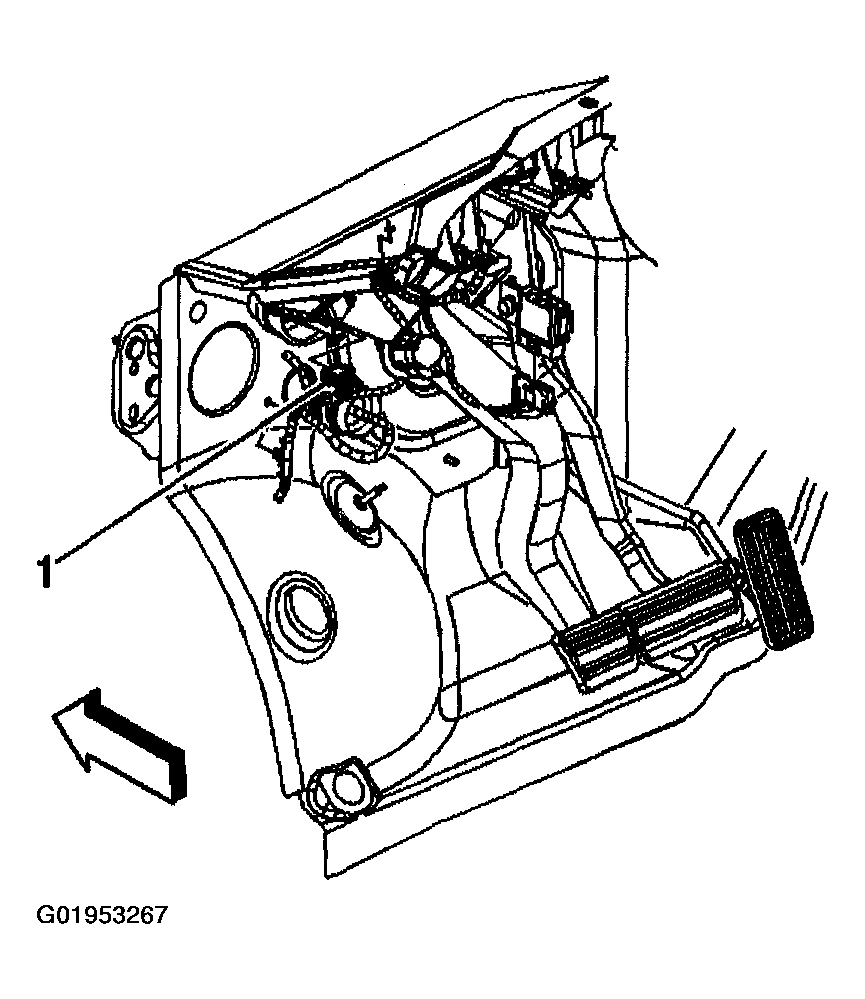

    Fig 1: Clutch Start Switch
    G01953267Courtesy of GENERAL MOTORS CORP.
