Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

If equipped with a 6.6L or 8.1L engine, install the clutch pressure plate and disc to the dowel pins.
NOTE: Refer to FASTENER NOTICE .
Install J 44747 in order to align the clutch.
Install the clutch pressure plate bolts.
Tighten

Tighten the bolts to 70 N.m (52 lb ft).
Remove the J 44747.

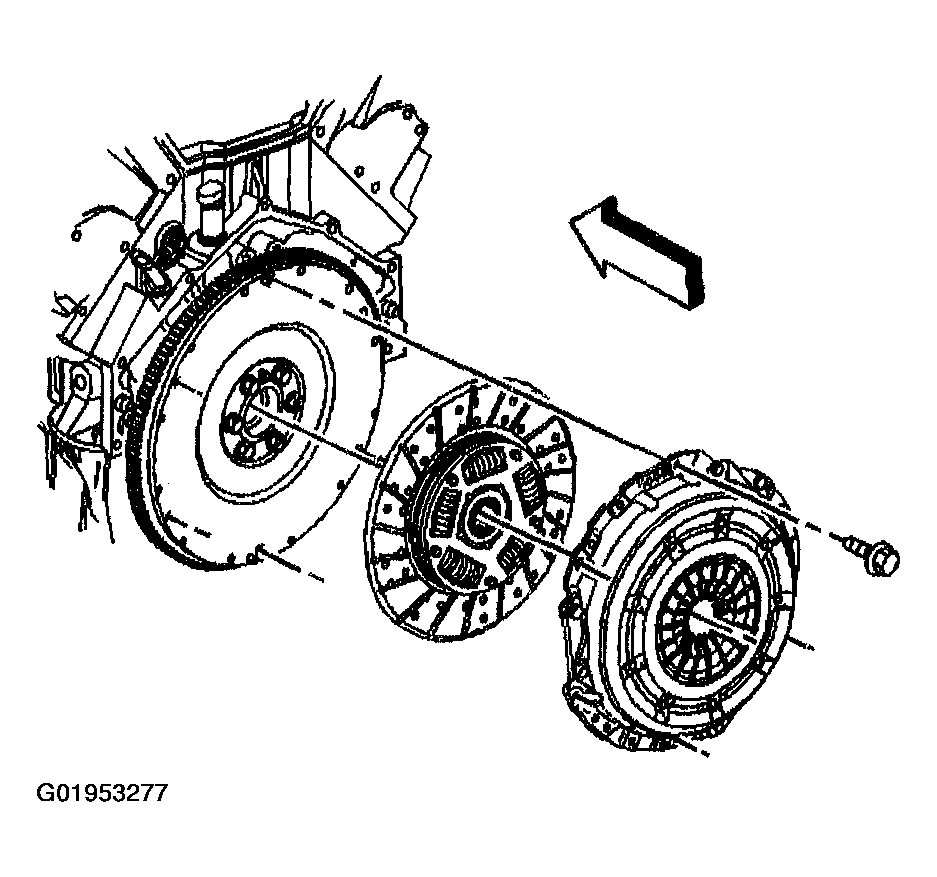

Fig 1: Installing Clutch Pressure Plate, Disc & Bolts (6.6L/8.1L)
Courtesy of GENERAL MOTORS CORP.
If equipped with a 4.8L or 6.0L engine, install the clutch pressure plate and driven plate to the dowel pins.
Install J 5824-01 in order to align the clutch.
Install the clutch pressure plate bolts finger tight.

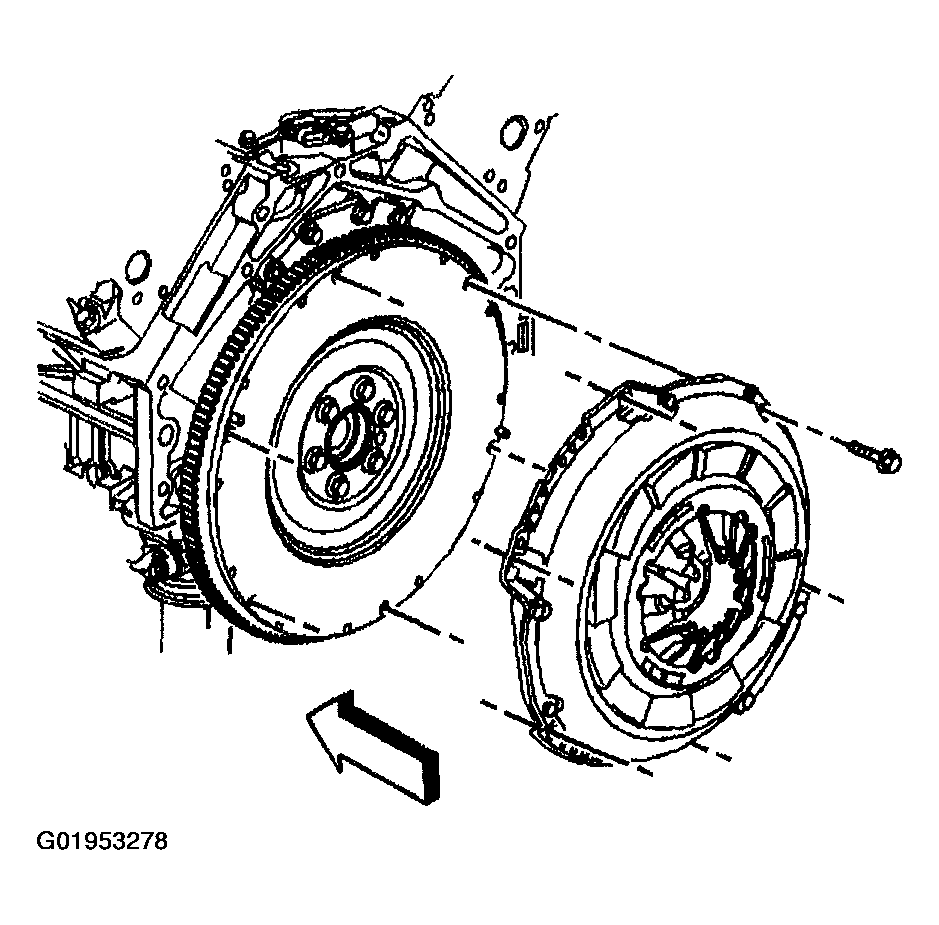

Fig 2: Installing Clutch Pressure Plate & Disc (4.8L/6.0L)
Courtesy of GENERAL MOTORS CORP.
If equipped with a 4.8L or 6.0L engine, tighten the clutch pressure plate bolts in the sequence shown.
Tighten

Tighten the bolts to 70 N.m (52 lb ft).
Remove the J 5824-01.

Fig 3: View Of Clutch Pressure Plate Bolt Tightening Sequence
Courtesy of GENERAL MOTORS CORP.
If equipped with a 4.3L engine, install the clutch disc (1), pressure plate (4), bolts (3), and washers (2).
Install J 5824-01 in order to align the clutch.
Tighten the clutch pressure plate bolts.
Tighten

Tighten the bolts to 40 N.m (30 lb ft).
Remove the J 5824-01.
Install the manual transmission. Refer to:
- TRANSMISSION REPLACEMENT for Manual Transmission-NV 3500
- TRANSMISSION REPLACEMENT for Manual Transmission-NV 4500
- TRANSMISSION REPLACEMENT for Manual Transmission-ZF S6-650

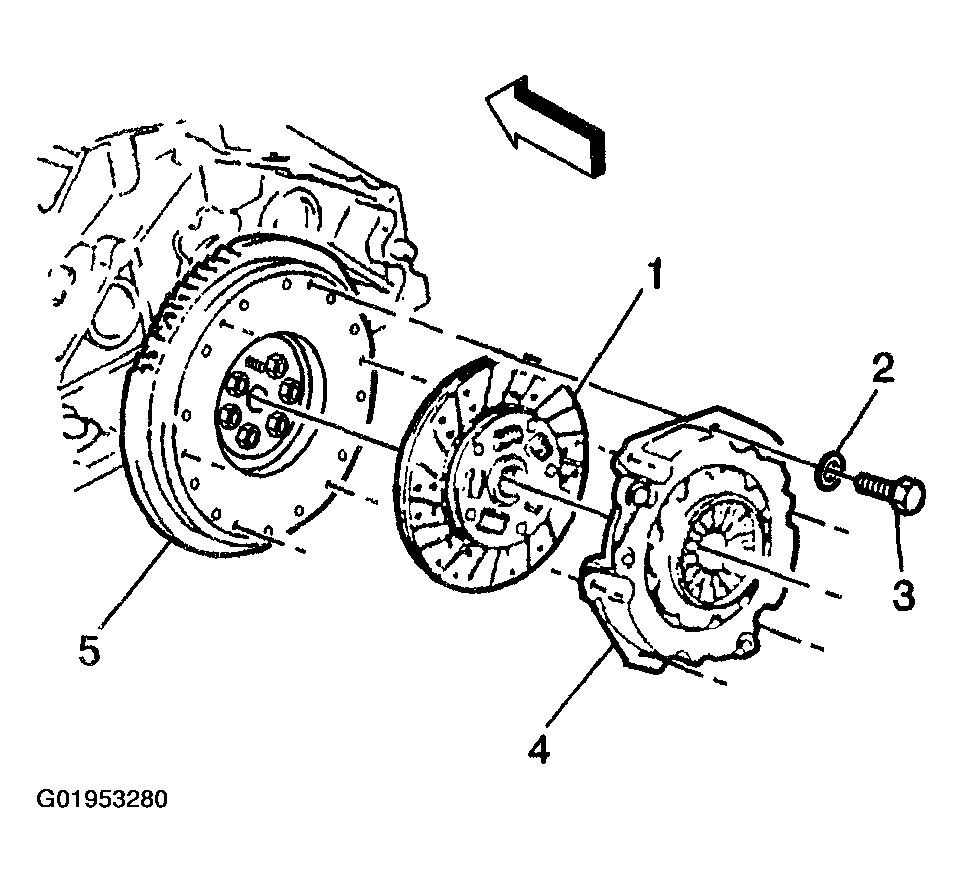

Fig 4: Installing Clutch Disc & Pressure Plate (4.3L)

Courtesy of GENERAL MOTORS CORP.
