Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the manual transmission. Refer to TRANSMISSION REPLACEMENT for Manual Transmission-NV 3500 TRANSMISSION REPLACEMENT for Manual Transmission-NV 4500
  2. Remove the clutch actuator cylinder bolts.
  3. Remove the clutch actuator cylinder.

    If required, the clutch release bearing can be removed from the clutch actuator cylinder for replacement.

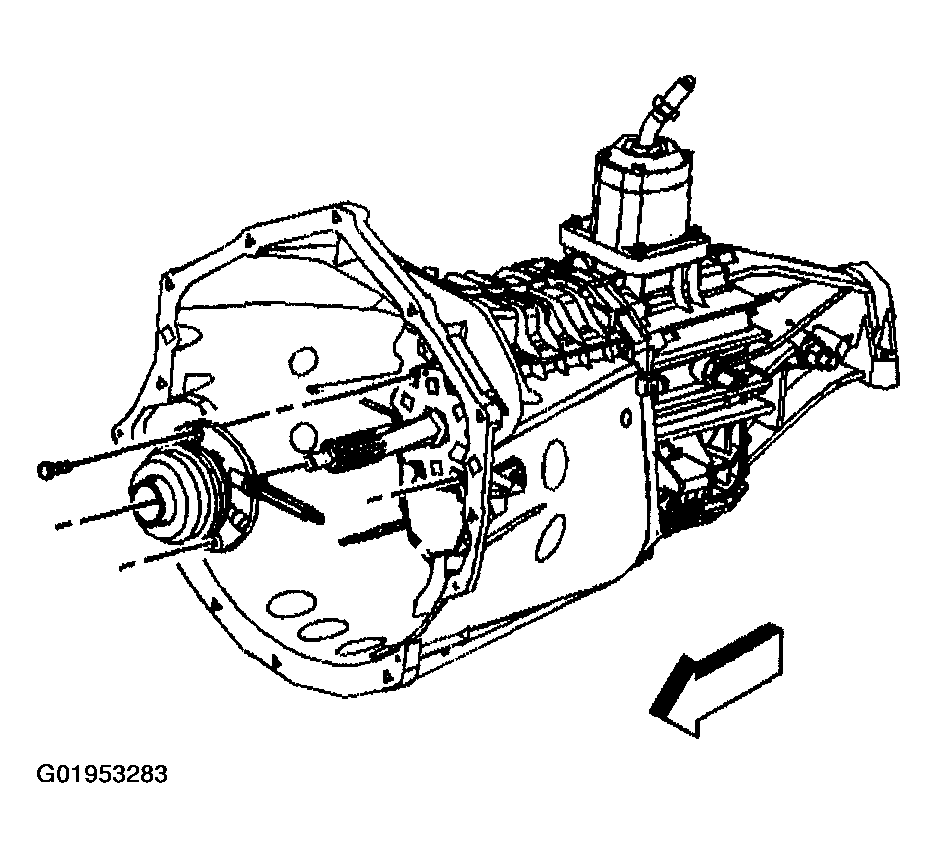

    Fig 1: Removing Clutch Actuator Cylinder & Bolts (NV 3500/4500)
    G01953283Courtesy of GENERAL MOTORS CORP.
