Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the clutch actuator cylinder.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the clutch actuator cylinder bolts.

    Tighten

    Tighten the bolts to 8 N.m (71 lb in).

  3. Install the manual transmission. Refer to TRANSMISSION REPLACEMENT for Manual Transmission-NV 3500 TRANSMISSION REPLACEMENT for Manual Transmission-NV 4500

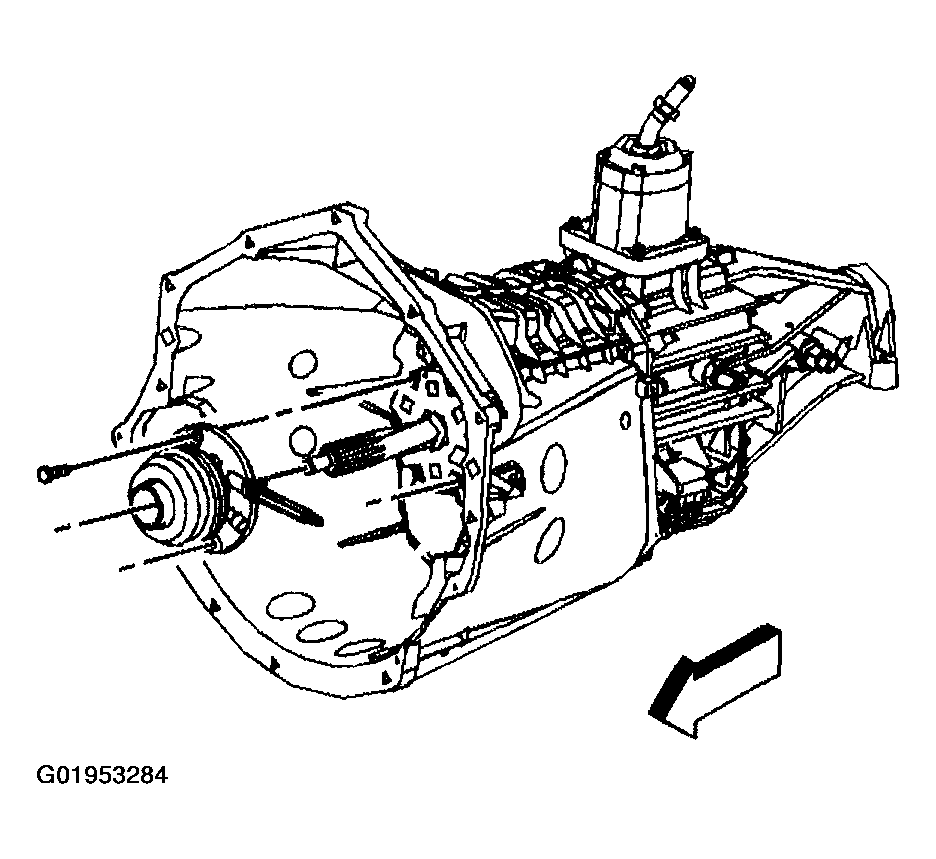

    Fig 1: Installing Clutch Actuator Cylinder & Bolts (NV 3500/4500)
    G01953284Courtesy of GENERAL MOTORS CORP.
