Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the vent hose to the transmission.
  2. Install the vent hose to the clip.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the bolt and the clamp.

    Tighten

    Tighten the bolt to 10 N.m (89 lb in).

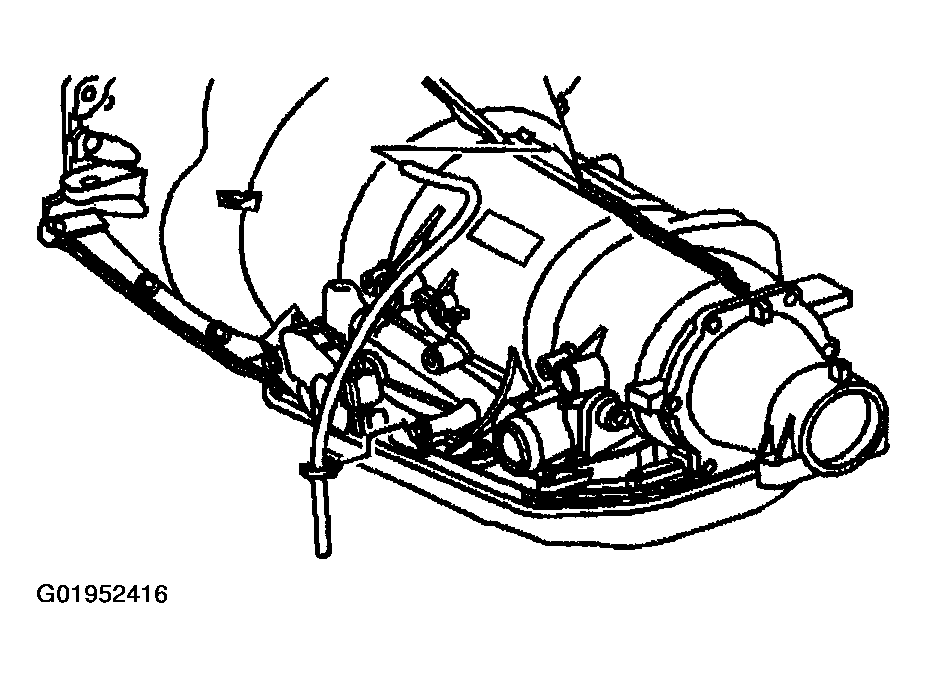

    Fig 1: Installing Vent Hose
    G01952416Courtesy of GENERAL MOTORS CORP.
