Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission mount to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the transmission mount to the transmission or transfer case adapter mounting bolts (1).

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

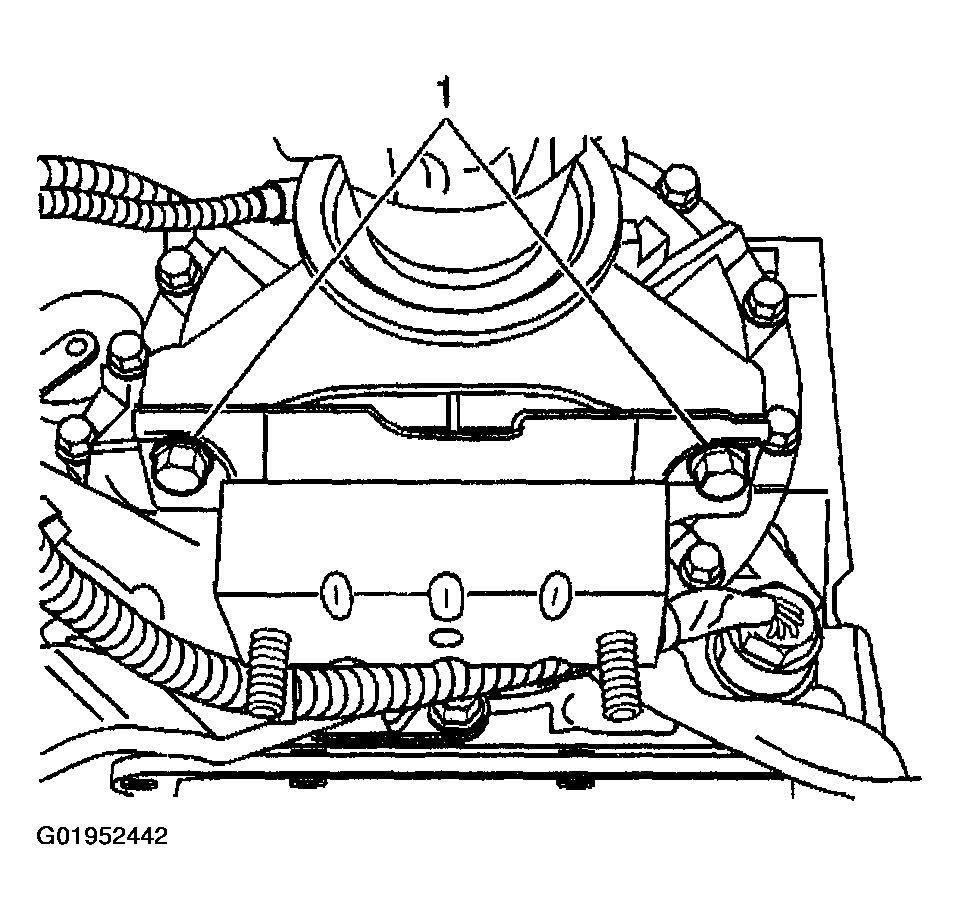

    Fig 1: Installing Transfer Case Adapter Mounting Bolts
    G01952442Courtesy of GENERAL MOTORS CORP.
  3. Lower the transmission.
  4. Install the transmission mount to the transmission support retaining nut or nuts.

    Tighten

    Tighten the nut or nuts to 40 N.m (30 lb ft).

  5. Remove the transmission jack.
  6. Lower the vehicle.

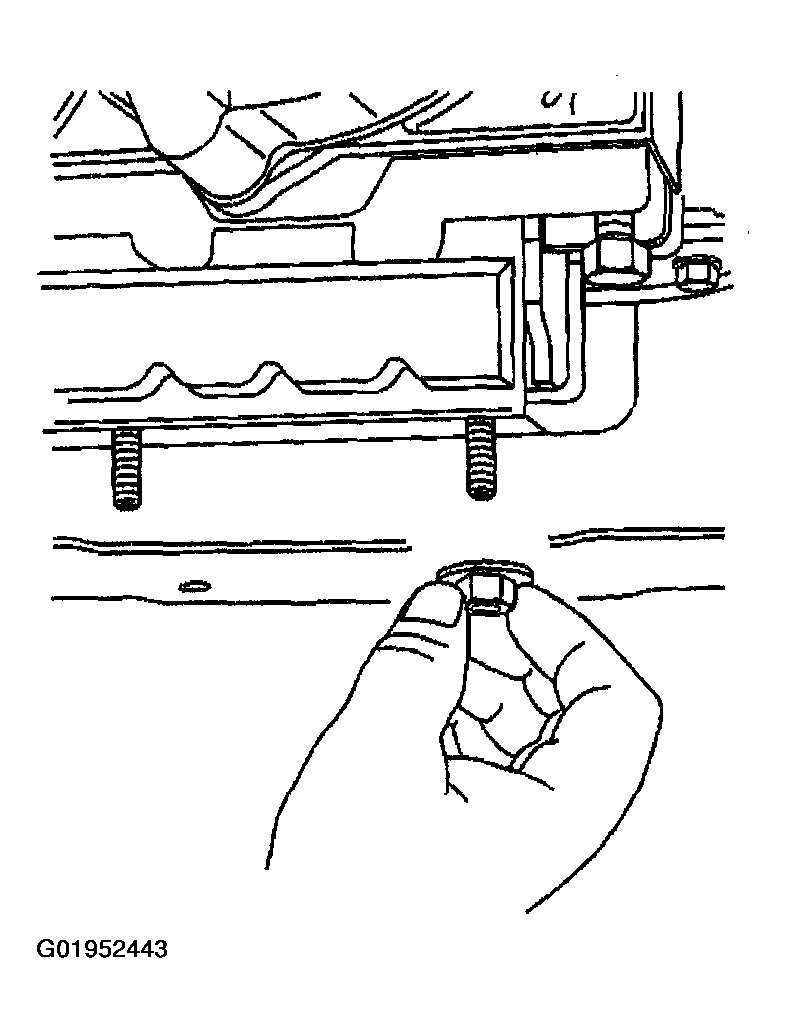

    Fig 2: Installing Transmission Mount Nut
    G01952443Courtesy of GENERAL MOTORS CORP.
