Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission fluid cooler hoses to the vehicle.
  2. Install the transmission fluid cooler hoses to the transmission. Refer to Transmission Oil Cooler Line Quick Connect Fitting
  3. Install the transmission fluid cooler hoses to the retainer on the engine.
  4. Install the engine protection shield. Refer to Engine Protection Shield Replacement in Frame and Underbody.
  5. Lower the vehicle.

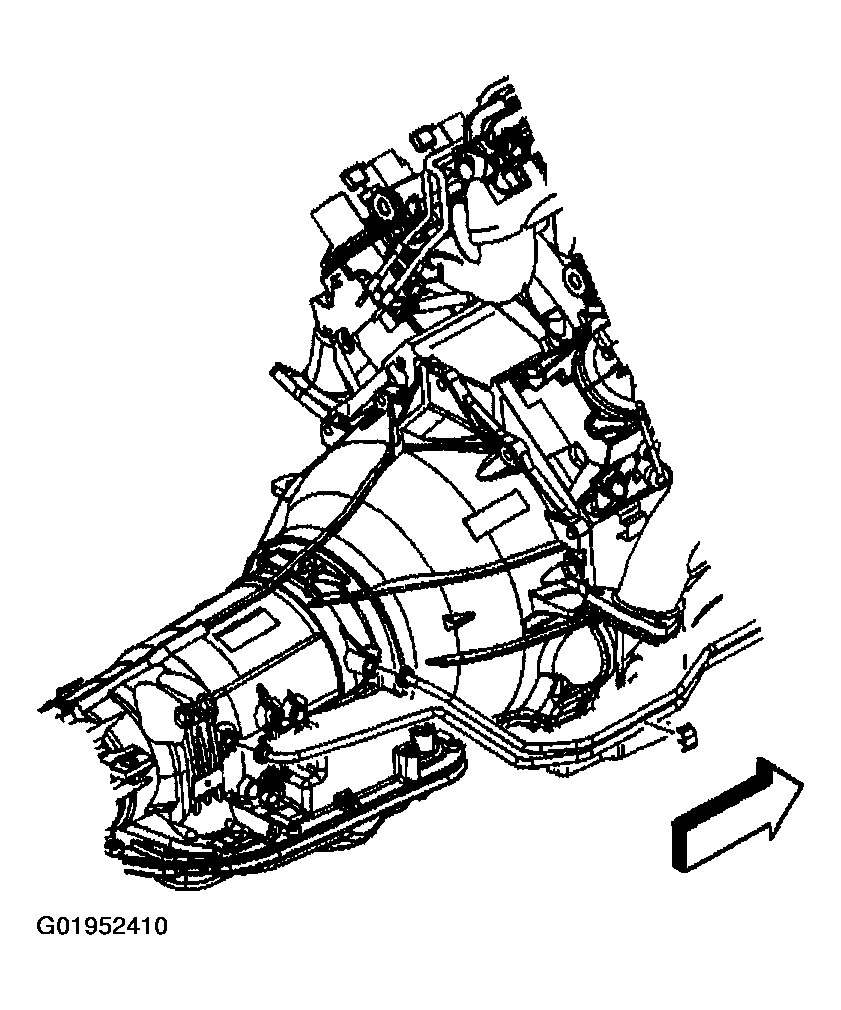

    Fig 1: Installing Transmission Fluid Cooler Hoses
    G01952410Courtesy of GENERAL MOTORS CORP.
  6. Install the transmission fluid cooler hose to the radiator. Refer to Transmission Oil Cooler Line Quick Connect Fitting

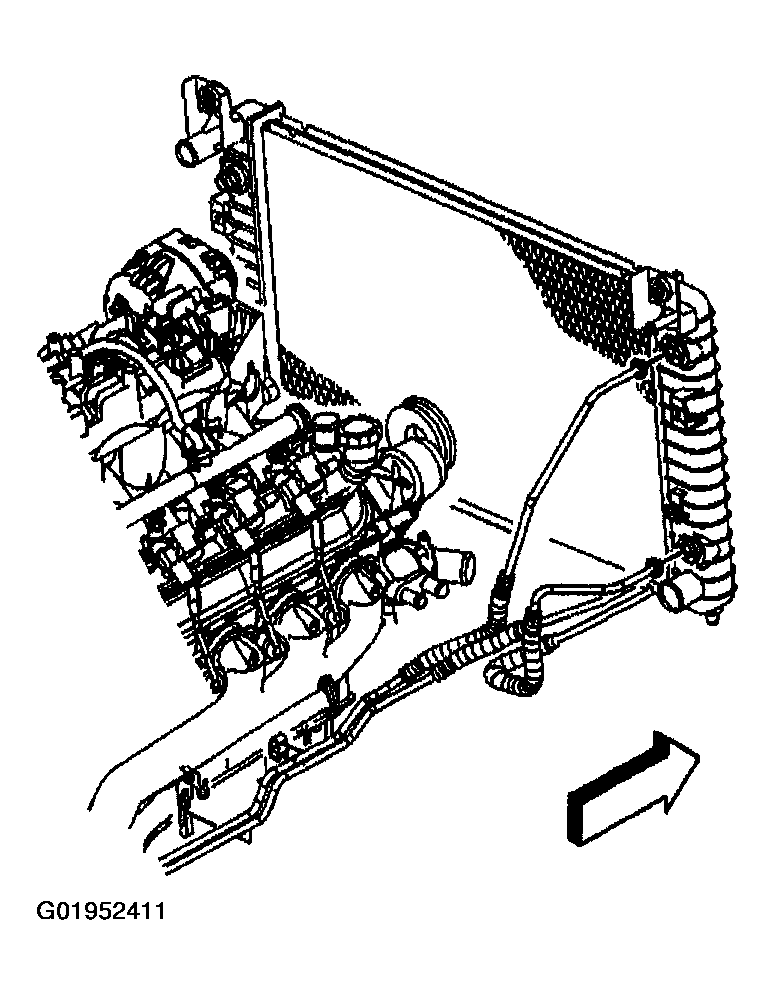

    Fig 2: Installing Transmission Fluid Cooler Hose
    G01952411Courtesy of GENERAL MOTORS CORP.
  7. Install the transmission fluid cooler hose from the Auxiliary oil cooler. Refer to Transmission Oil Cooler Line Quick Connect Fitting
  8. Install the grille assembly. Refer to GRILLE REPLACEMENT (OLD STYLE) or GRILLE REPLACEMENT (NEW STYLE GMC) or GRILLE REPLACEMENT (NEW STYLE CHEVROLET) .

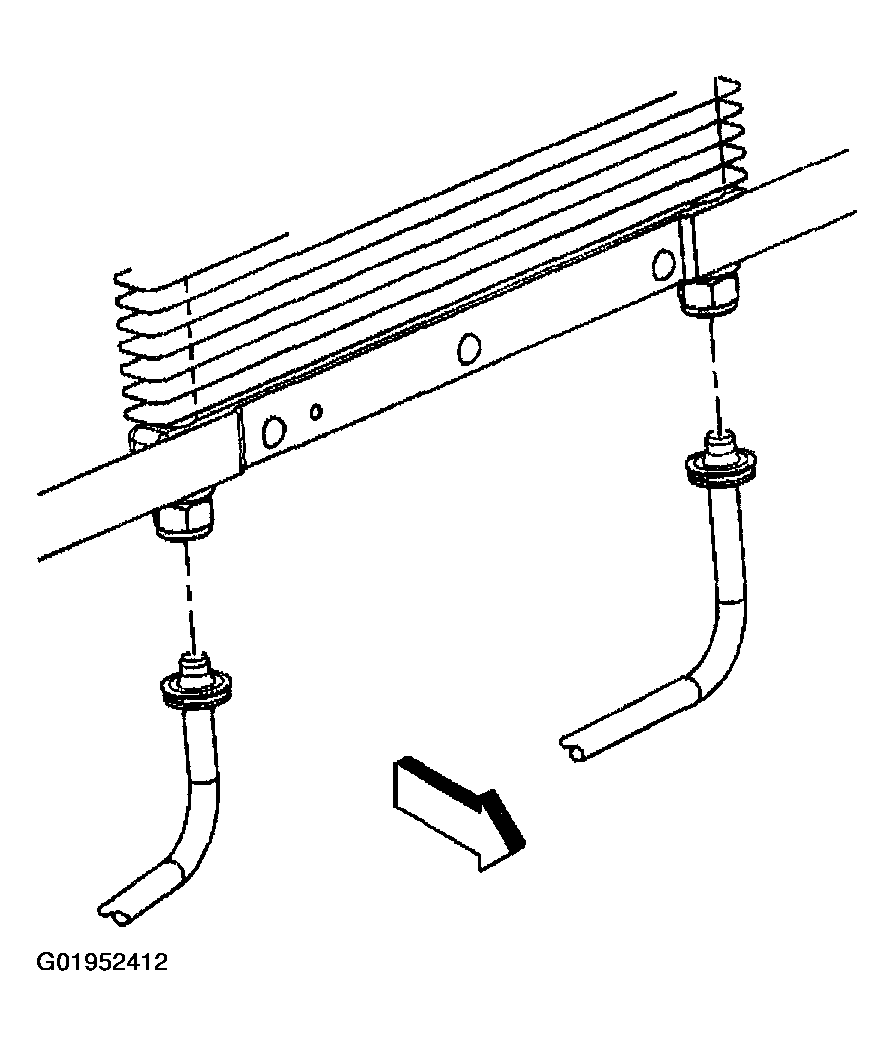

    Fig 3: Installing Transmission Fluid Cooler Hose From Auxiliary Oil Cooler
    G01952412Courtesy of GENERAL MOTORS CORP.
