Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the grille assembly. Refer to GRILLE REPLACEMENT (OLD STYLE) or GRILLE REPLACEMENT (NEW STYLE GMC) or GRILLE REPLACEMENT (NEW STYLE CHEVROLET) .
  2. Remove the transmission fluid cooler hoses from the auxiliary cooler. Refer to Transmission Oil Cooler Line Quick Connect Fitting
  3. Remove the auxiliary oil cooler bolts (1).
  4. Remove the auxiliary oil cooler push pins (2).
  5. Remove the auxiliary oil cooler from the vehicle.

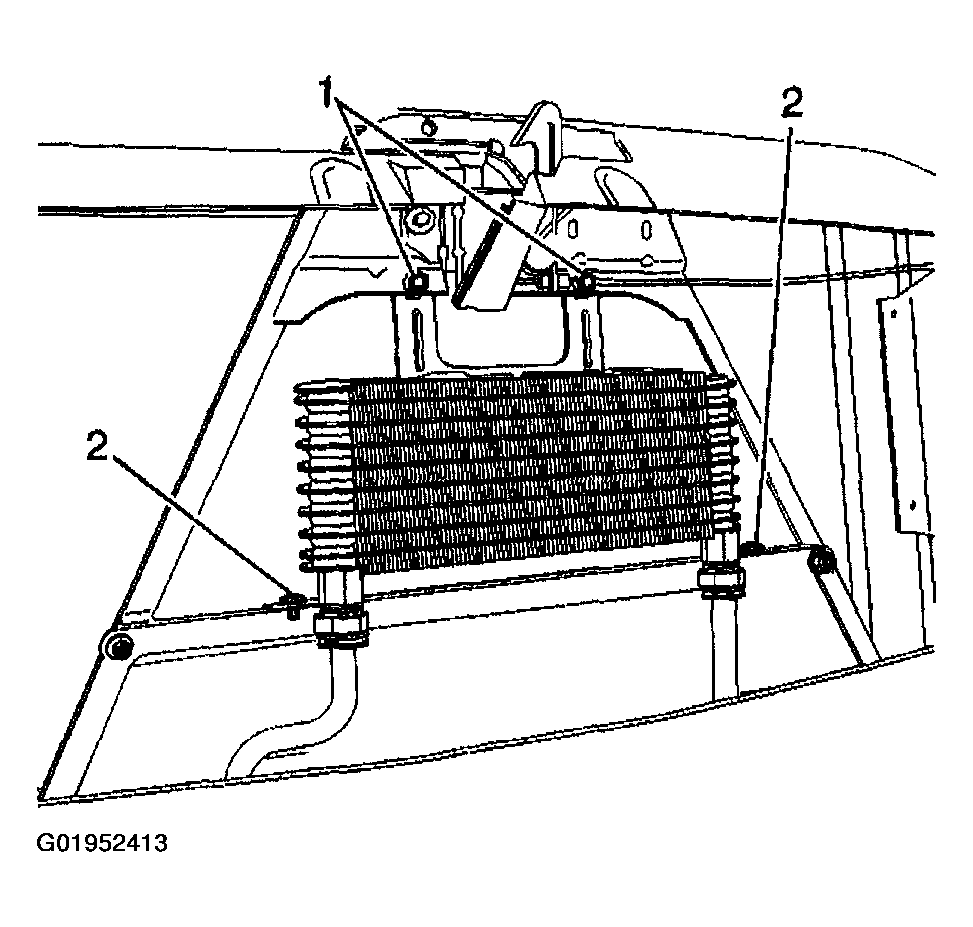

    Fig 1: Removing Auxiliary Oil Cooler, Bolts & Push Pins
    G01952413Courtesy of GENERAL MOTORS CORP.
