Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the auxiliary oil cooler to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts (1) to the radiator brace.

    Tighten

    Tighten the bolts to 12 N.m (106 lb in).

  3. Install the push pins (2) to the radiator brace.
  4. Connect the transmission oil cooler lines to the auxiliary cooler. Refer to Transmission Oil Cooler Line Quick Connect Fitting   .
  5. Install the grille assembly. Refer to GRILLE REPLACEMENT (OLD STYLE) or GRILLE REPLACEMENT (NEW STYLE GMC) or GRILLE REPLACEMENT (NEW STYLE CHEVROLET) .

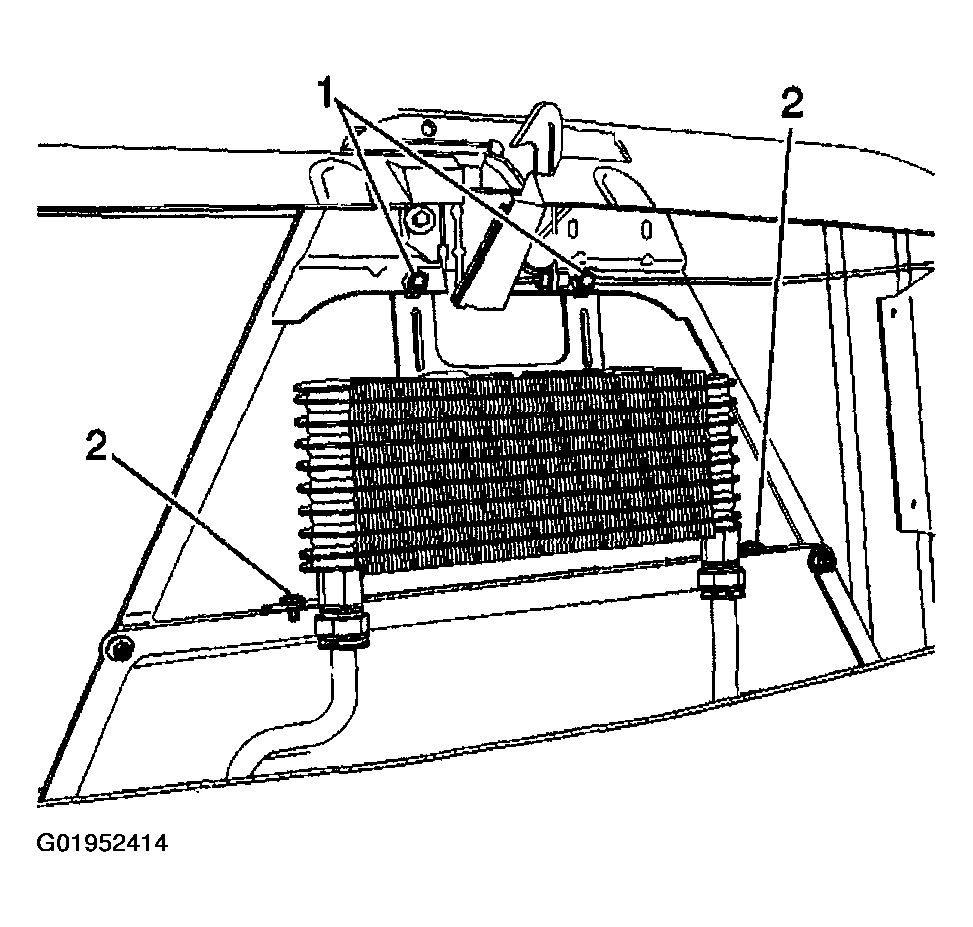

    Fig 1: Installing Auxiliary Oil Cooler, Bolts & Push Pins
    G01952414Courtesy of GENERAL MOTORS CORP.
