Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the rear servo to the transmission in the following order:
1. 1.1. Accumulator spring (14)
2. 1.2. Selective pin (13)
3. 1.3. Servo spring retainer (12)
4. 1.4. Servo spring (11)
5. 1.5. Washer (10)
6. 1.6. Piston seal (9)
7. 1.7. Accumulator piston (8)
8. 1.8. Inner ring oil seal (7)
9. 1.9. Outer ring oil seal (1)
10. 1.10. Servo piston (2)
11. 1.11. Bottom retaining clip (3)
12. 1.12. Cover gasket (4)
13. 1.13. Cover (5)
14. 1.14. Cover bolts (6)

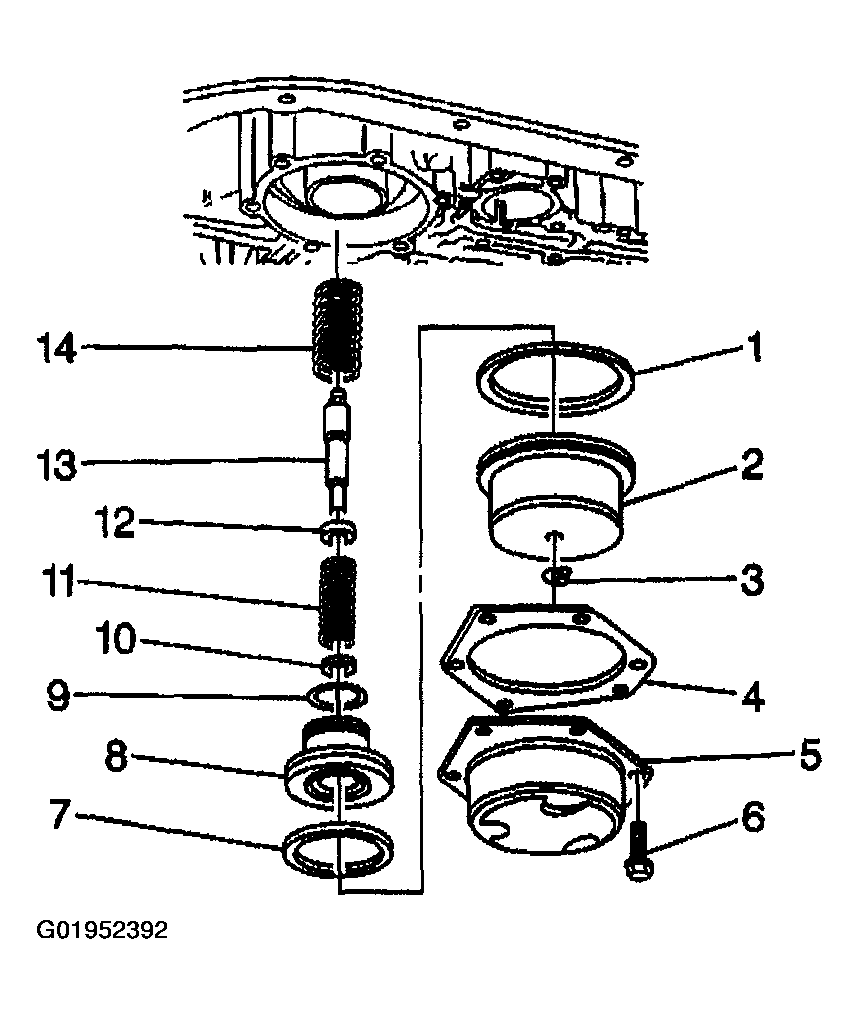

  Fig 1: Installing Rear Servo
  Courtesy of GENERAL MOTORS CORP.

  NOTE: Refer to FASTENER NOTICE .
Tighten the cover bolts (61).
Tighten

Tighten the bolts to 24 N.m (18 lb ft).
Install the transmission filter. Refer to Automatic Transmission Fluid/Filter Replacement .
