Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the output speed sensor seal with automatic transmission fluid.
  2. Install the output speed sensor (2).
    NOTE: Refer to FASTENER NOTICE .
  3. Install the output speed sensor bolt.

    Tighten

    Tighten the bolt to 11 N.m (96 lb in).

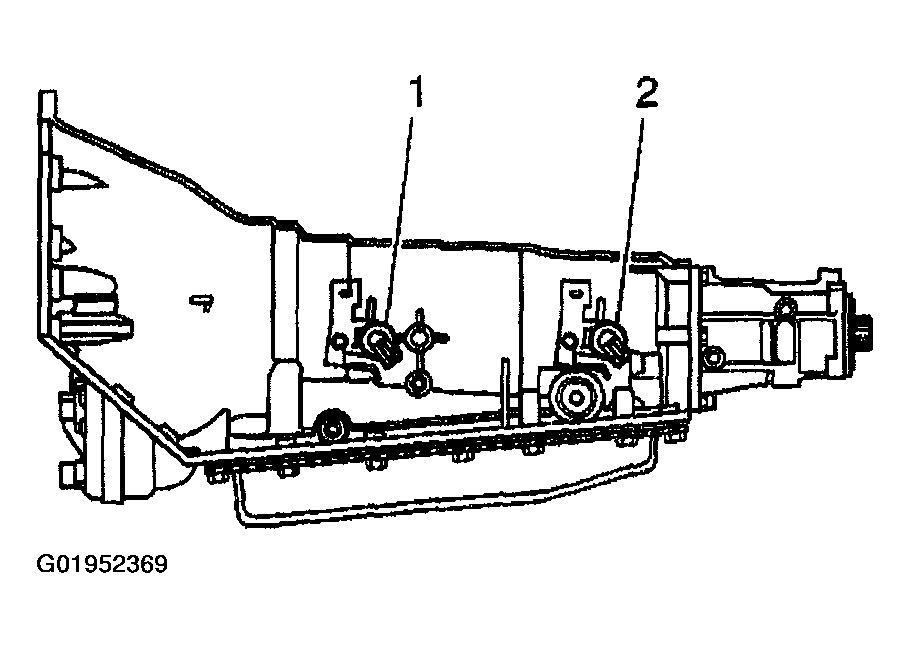

    Fig 1: Installing Output Speed Sensor
    G01952369Courtesy of GENERAL MOTORS CORP.
  4. Connect the output speed sensor (2) electrical connector.
  5. Lower the vehicle.

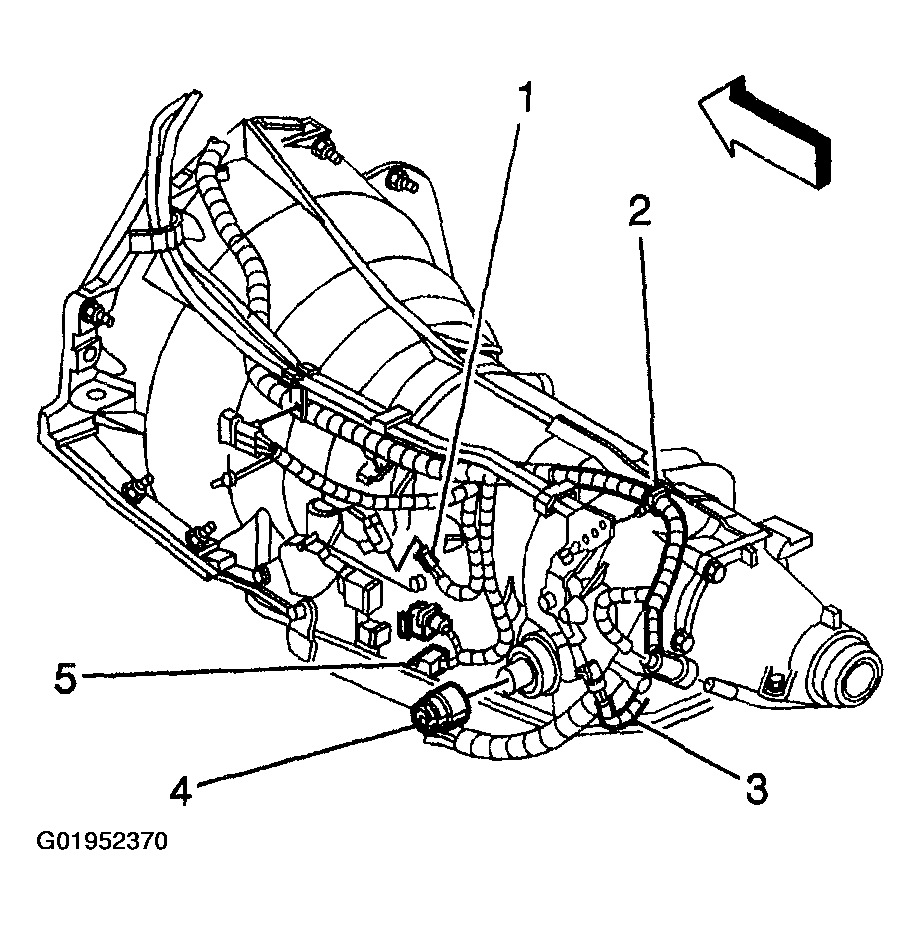

    Fig 2: Connecting Output Speed Sensor Electrical Connector
    G01952370Courtesy of GENERAL MOTORS CORP.
