Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the input speed sensor seal with automatic transmission fluid.
  2. Install the input speed sensor (1).
    NOTE: Refer to FASTENER NOTICE .
  3. Install the input speed sensor bolt.

    Tighten

    Tighten the bolt to 11 N.m (96 lb in).

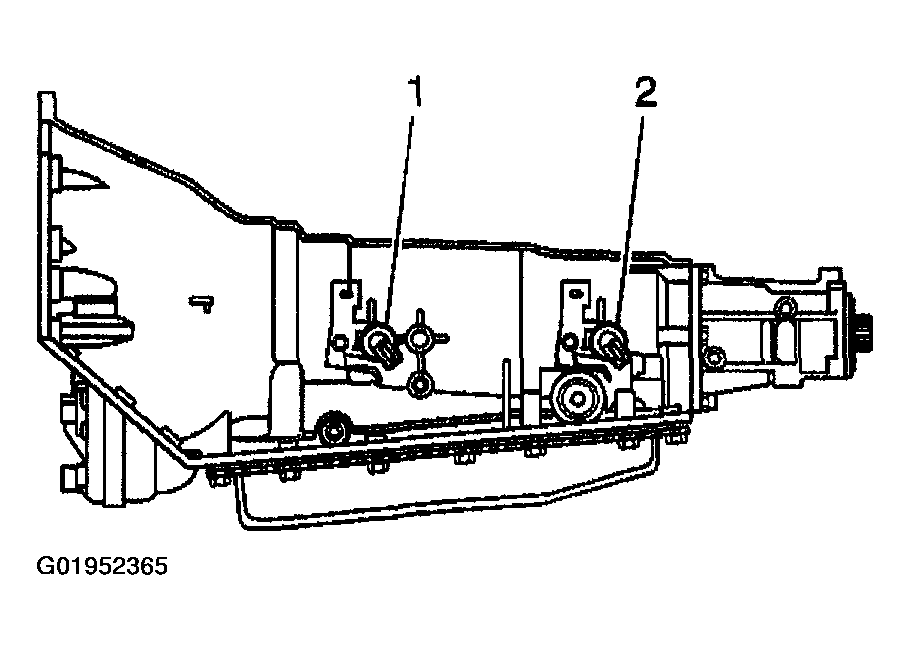

    Fig 1: Installing Input Speed Sensor
    G01952365Courtesy of GENERAL MOTORS CORP.
  4. Connect the input speed sensor electrical connector (1).
  5. Lower the vehicle.

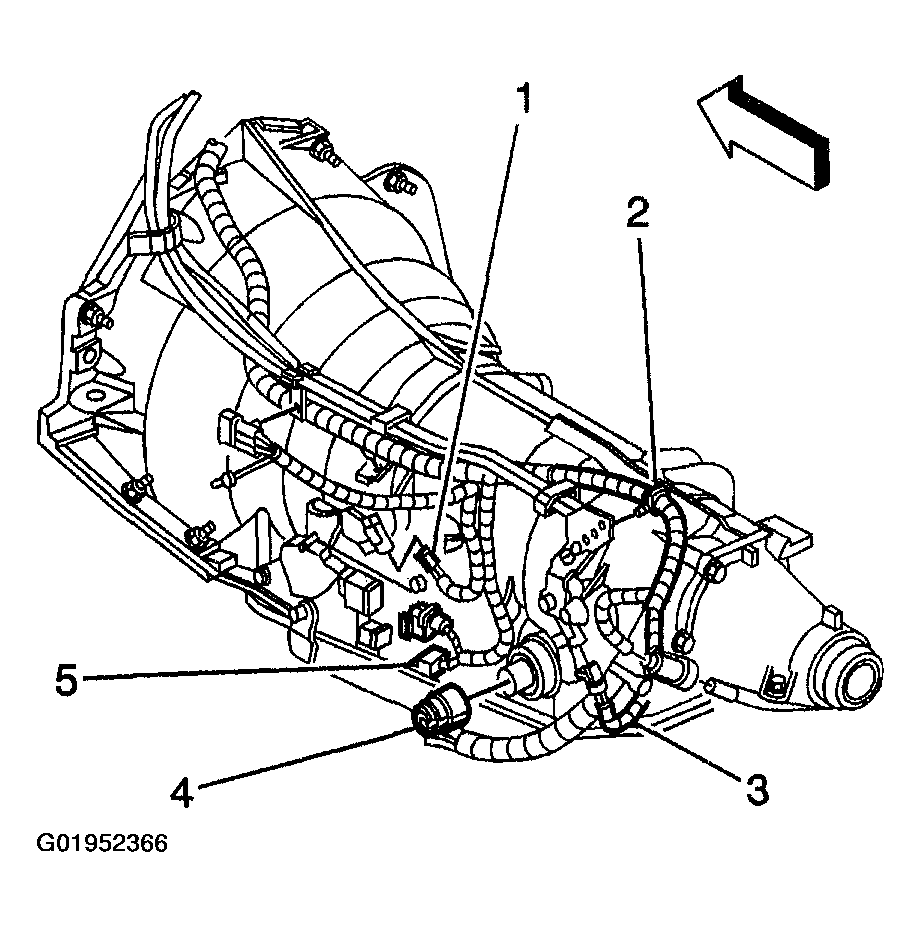

    Fig 2: Connecting Input Speed Sensor Electrical Connector
    G01952366Courtesy of GENERAL MOTORS CORP.
