Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission filter. Refer to Automatic Transmission Fluid/Filter Replacement   .
  2. Remove the forward servo cover bolts, cover, and gasket.
  3. Remove the following parts:
    1. 3.1. Forward servo piston pin (5)
    2. 3.2. O-ring seal (4)
    3. 3.3. Servo piston (3)
    4. 3.4. Retainer (2)
    5. 3.5. Piston spring (1)

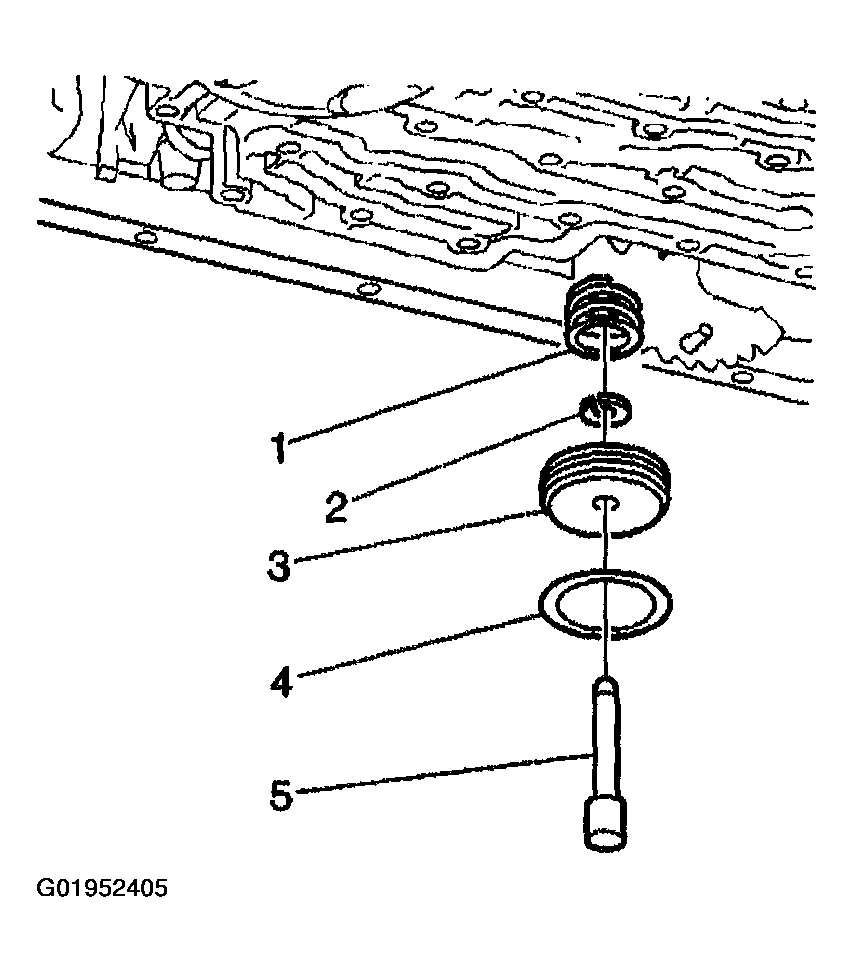

      Fig 1: Forward Servo Piston, Pin, O-Ring Seal, Retainer & Piston Spring
      G01952405Courtesy of GENERAL MOTORS CORP.
